Sea water pump house pipe repair

KHIA ID: 9812
Industry: Power (POWR)
Application: VPF-Valves, Pipes and Fittings (VPF)
Substrate: Stainless-steel
Customer Location: Barrow
Application Date: April 2025
Products: Belzona 1111 (Super Metal)
Problem: Severe erosion - through wall defect

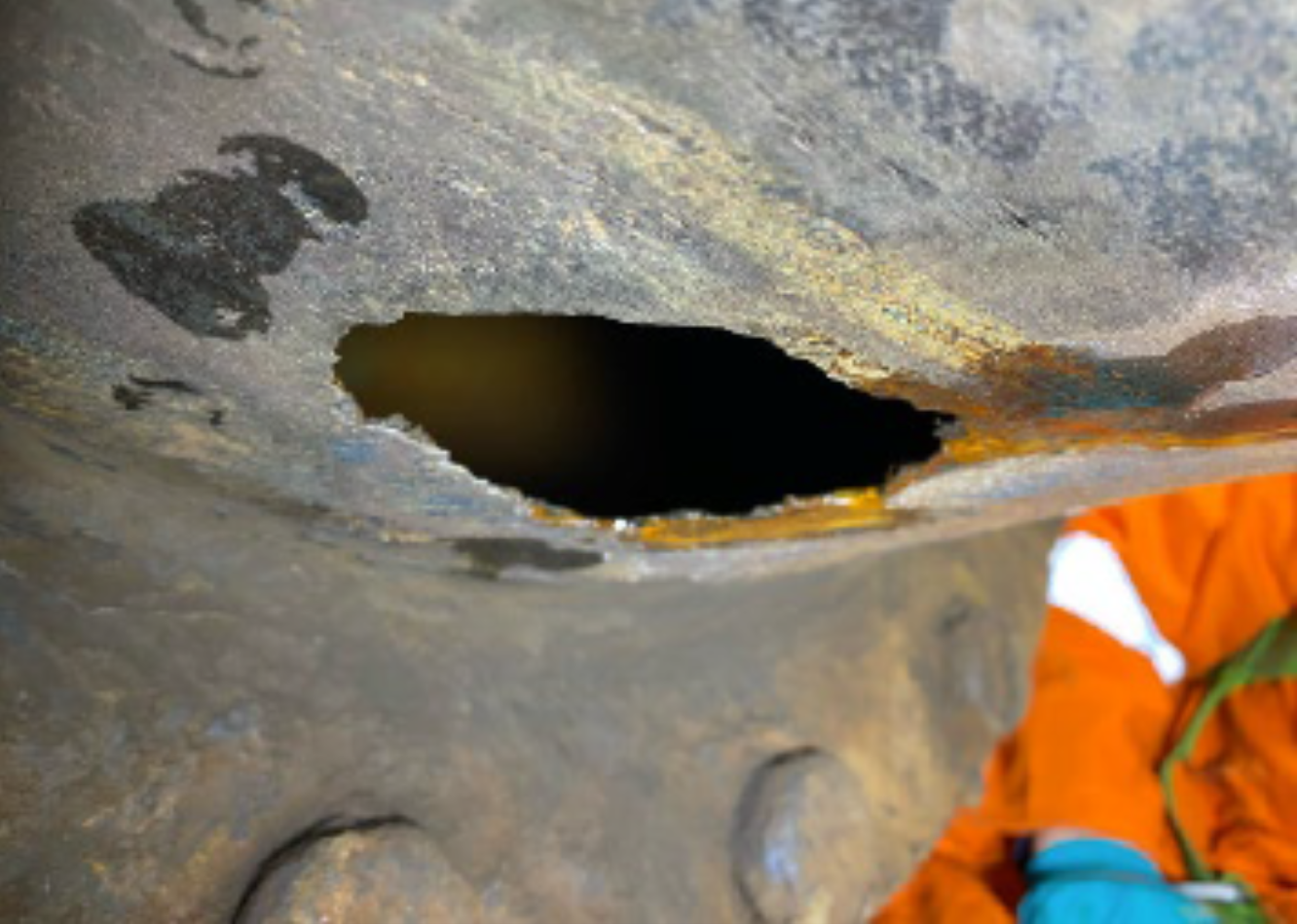

A steel pipe with a corroded hole at the bottom

Through wall defect on pipe due to severe corrosion

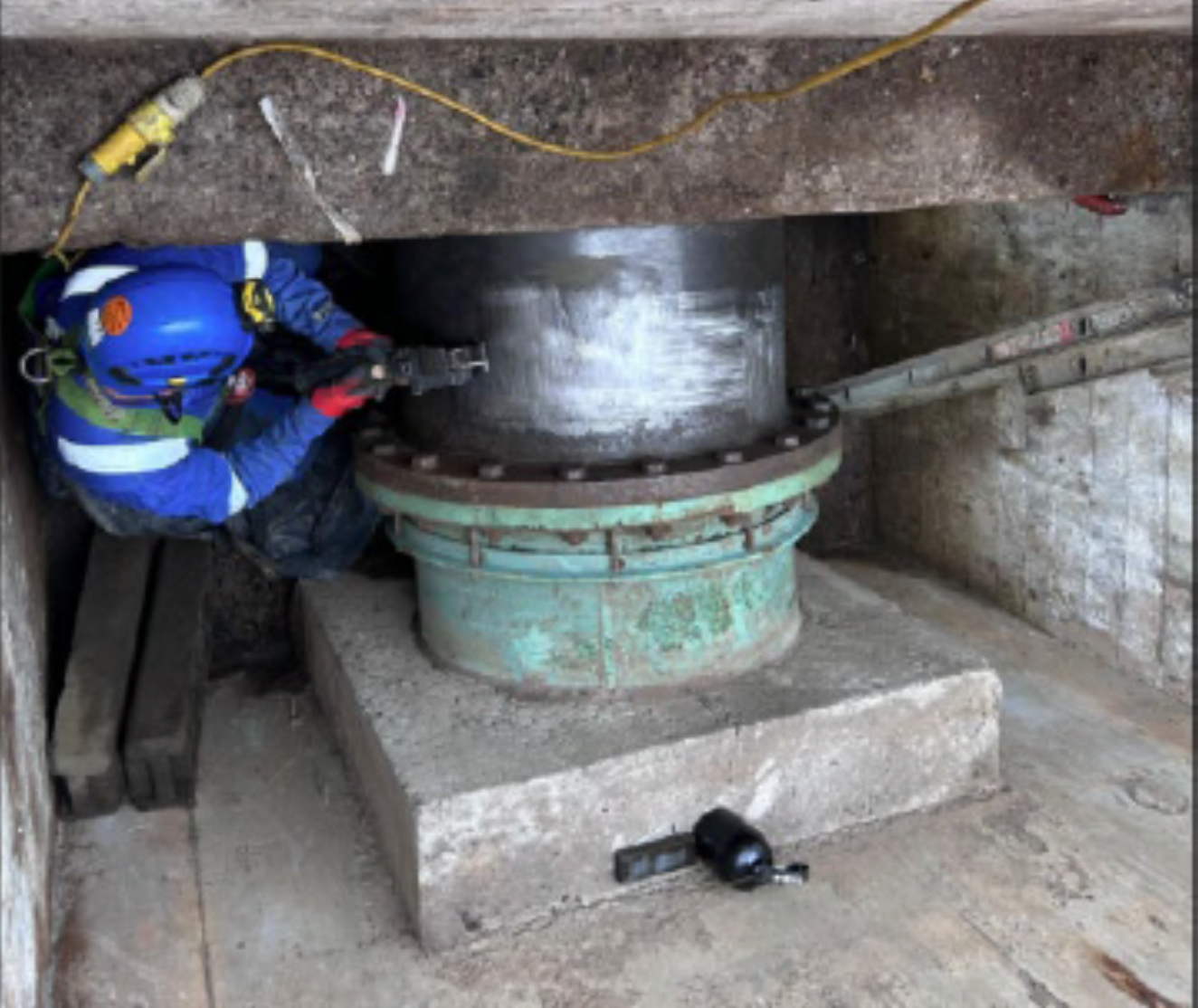

A man grinding away the dirt around the steel pipe to get surface ready

Surface area was prepared to minimum surface profile using power tools

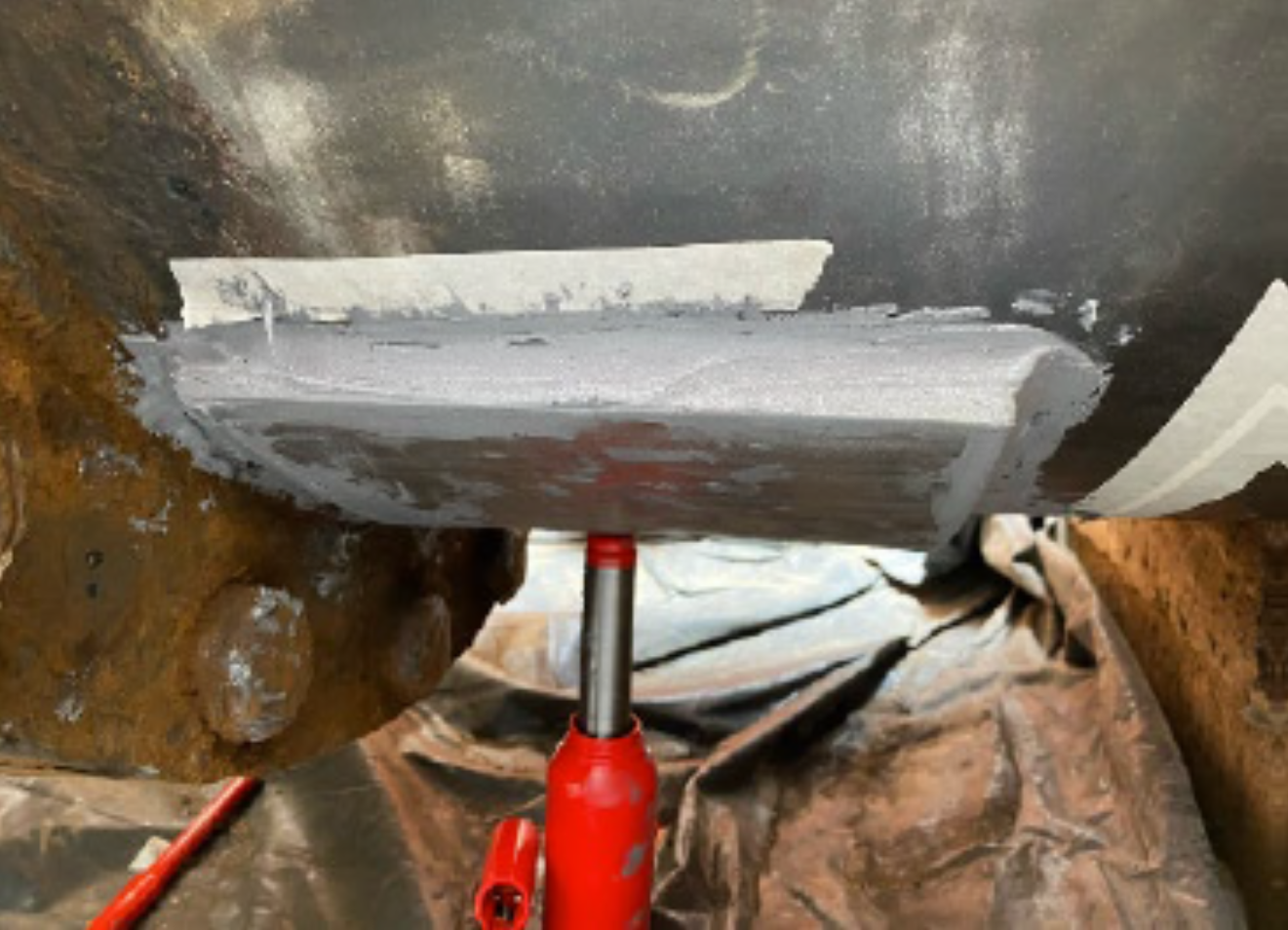

A plate held in place by a clamp now covers the defect hole in the pipe

Plate is bonded over the defect area and clamped in place

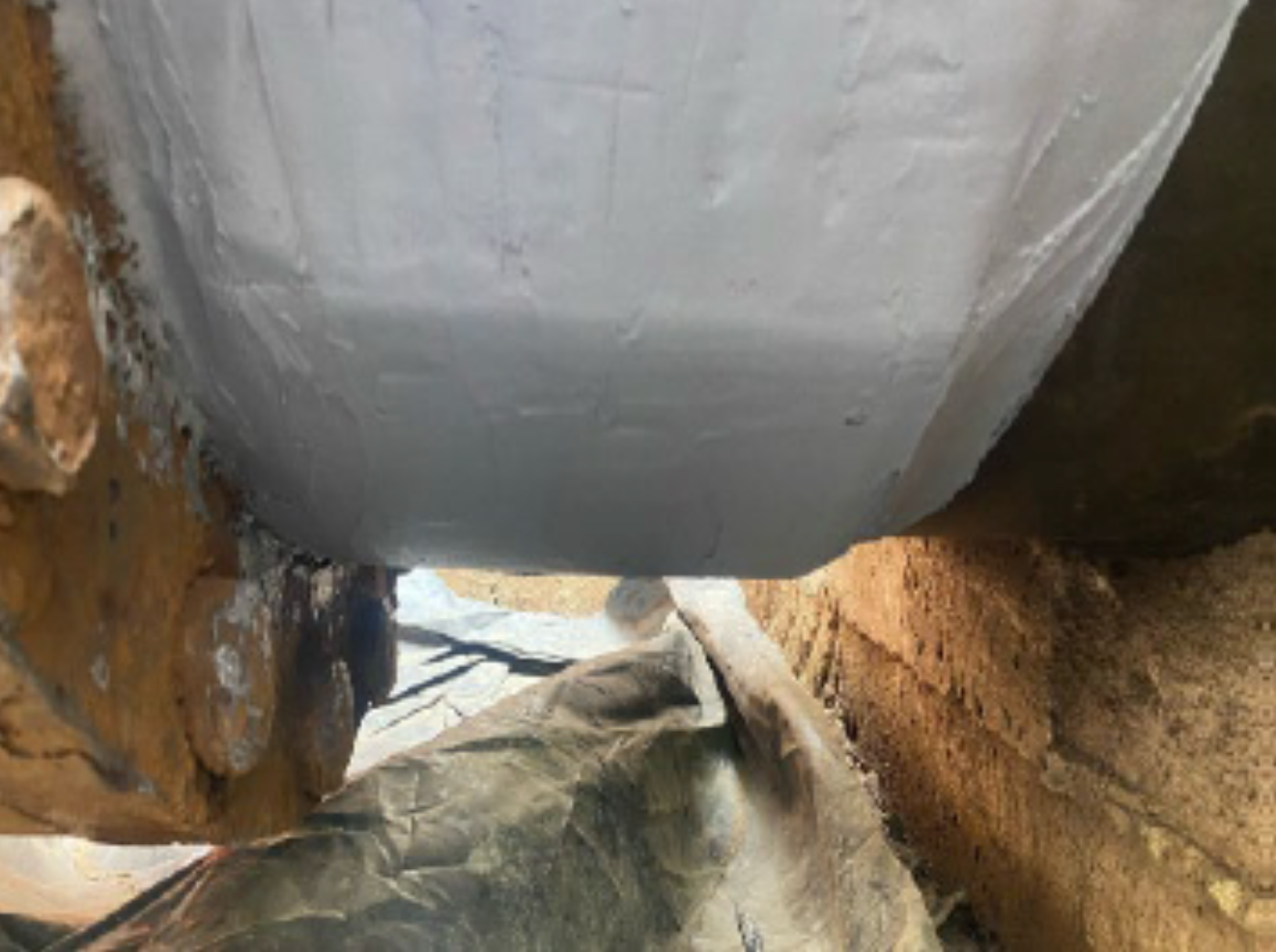

A layer of Belzona 1111 now covers the external of the pipe circumference

The entire area is wrapped with Belzona 1111 and Belzona 9341

Application Situation
Due to the confined space, there were few options available. The flange adapter also could not be easily replaced, leading to lengthy delays and increased downtime. The Distributor UK offered the ideal solution to repair the through wall defect and return structural integrity to corroded pipe.
Application Method
The through wall defect area was cleaned and prepared to minimum surface profile using power tools. A pre-made plate was bonded using Belzona 1111, the surrounding surface of the pipe was then wrapped with Belzona 1111 incorporating Belzona 9341 to completely cover areas of pipe susceptible to corrosion.
Belzona Facts
Belzona saved on cost of lengthy shutdowns, waiting for replacement components and also reduced on longer downtimes with an in-situ application
