BELZONA SOLUTION FOR REBUILDING AND COATING OF STUFFING BOX

KHIA ID: 9740

Industry: Fluid Flow (FLOW)
Application: CEP-Centrifugal Pumps (CEP)
Substrate: Carbon steel

Customer Location: DUBAI, UNITED ARAB EMIRATES
Application Date: January 2025

Products: Belzona 1121 (Super XL-Metal),Belzona 1321 (Ceramic S-Metal)

Problem: The stuffing box of the pump experienced erosion and corrosion, leading to pitting damage on the internal surfaces and impacting performance.

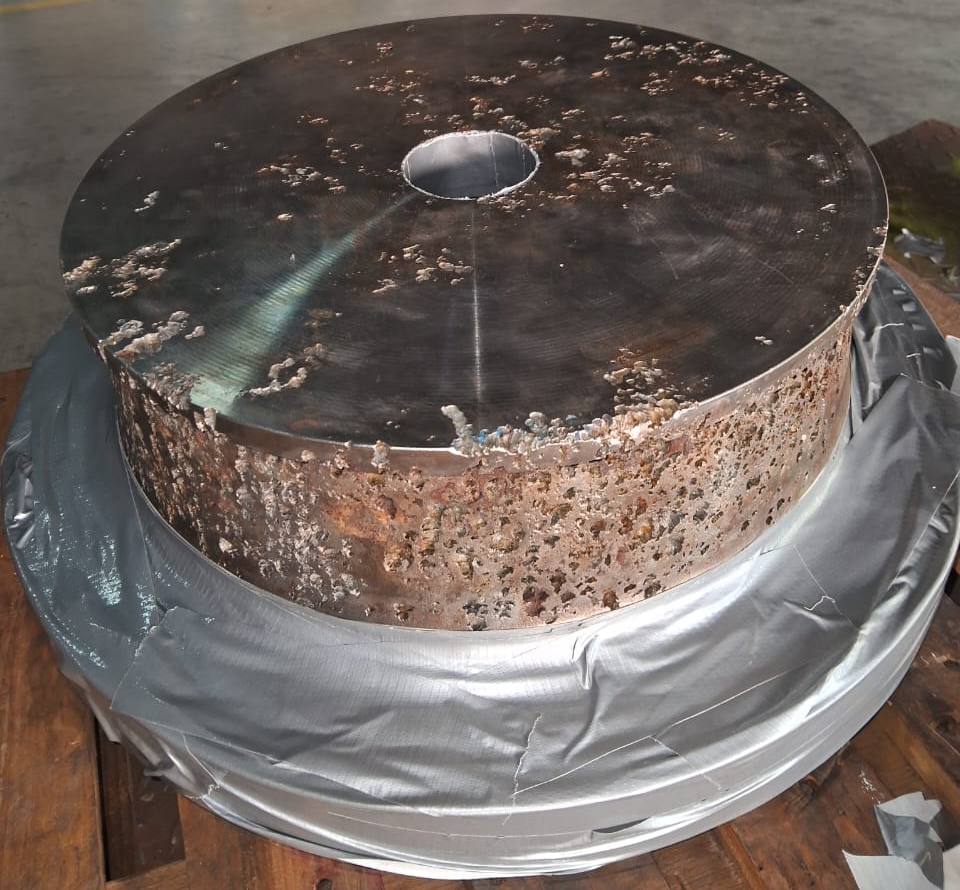

Severely corroded equipment.

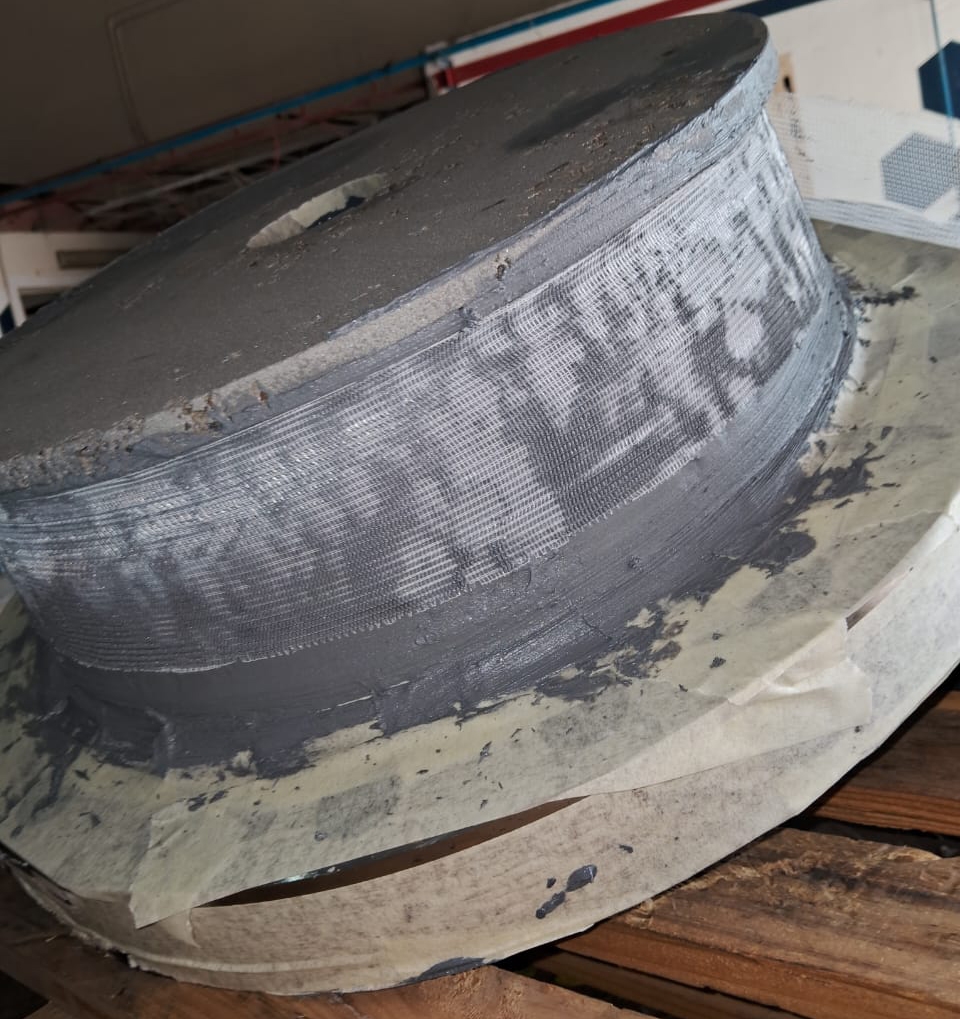

During the rebuilding works using Belzona 1121.

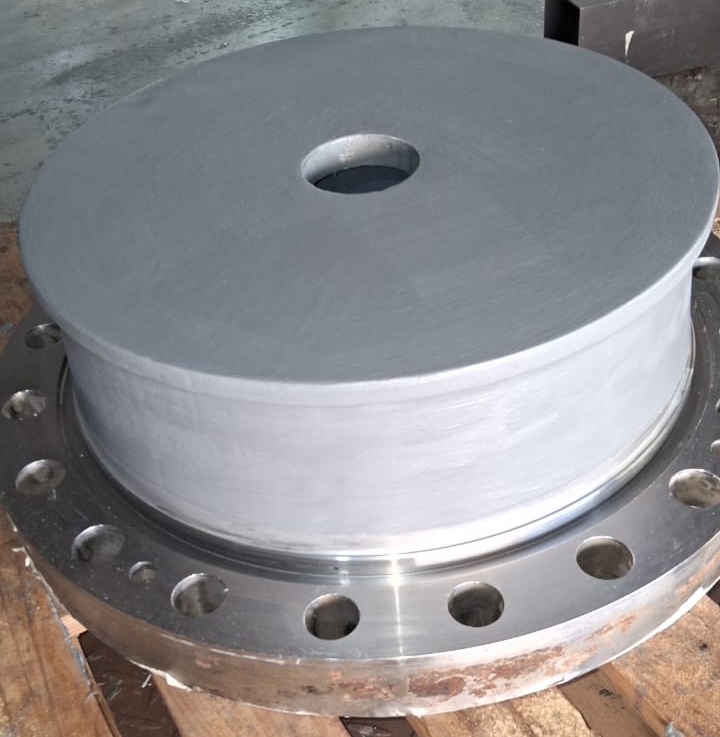

Re-builded stuffing box after the application of Belzona 1121.

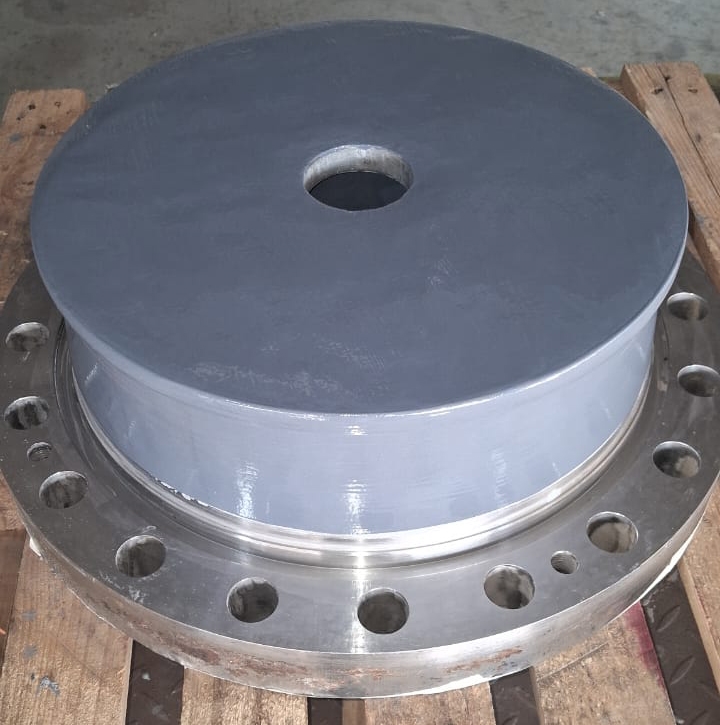

Final equipment after the Belzona 1321 application.

Application Situation

A repair utilizing a combination of Belzona rebuild-grade materials and a subsequent lining with Belzona ceramic coating enhanced protection and extended the asset's operational lifespan.

Application Method

Belzona 1121 and Belzona 1321 were applied following the guidelines of Belzona System Leaflets CEP-01 and CEP-03.
The corroded areas were rebuilt manually using a stiff bristle brush and the provided plastic applicator, in accordance with the approved IFU.

Belzona Facts

Belzona 1321 is a ceramic-filled epoxy coating specifically designed to protect metal surfaces from erosion and corrosion.

Belzona 1121 is a two-component paste-grade system with an extended working life, ideal for repairing and rebuilding machinery and equipment. It also serves as a high-performance, abrasion-resistant rebuilding solution.
