Belzona repairs Suction Bell

KHIA ID: 9901

Industry: Pulp & Paper (PLPR)
Application: SHM-Solids Handling Machinery (SHM)
Substrate: Carbon steel

Customer Location: Decatur, AL
Application Date: October 2024

Products: Belzona 1111 (Super Metal),Belzona 1331

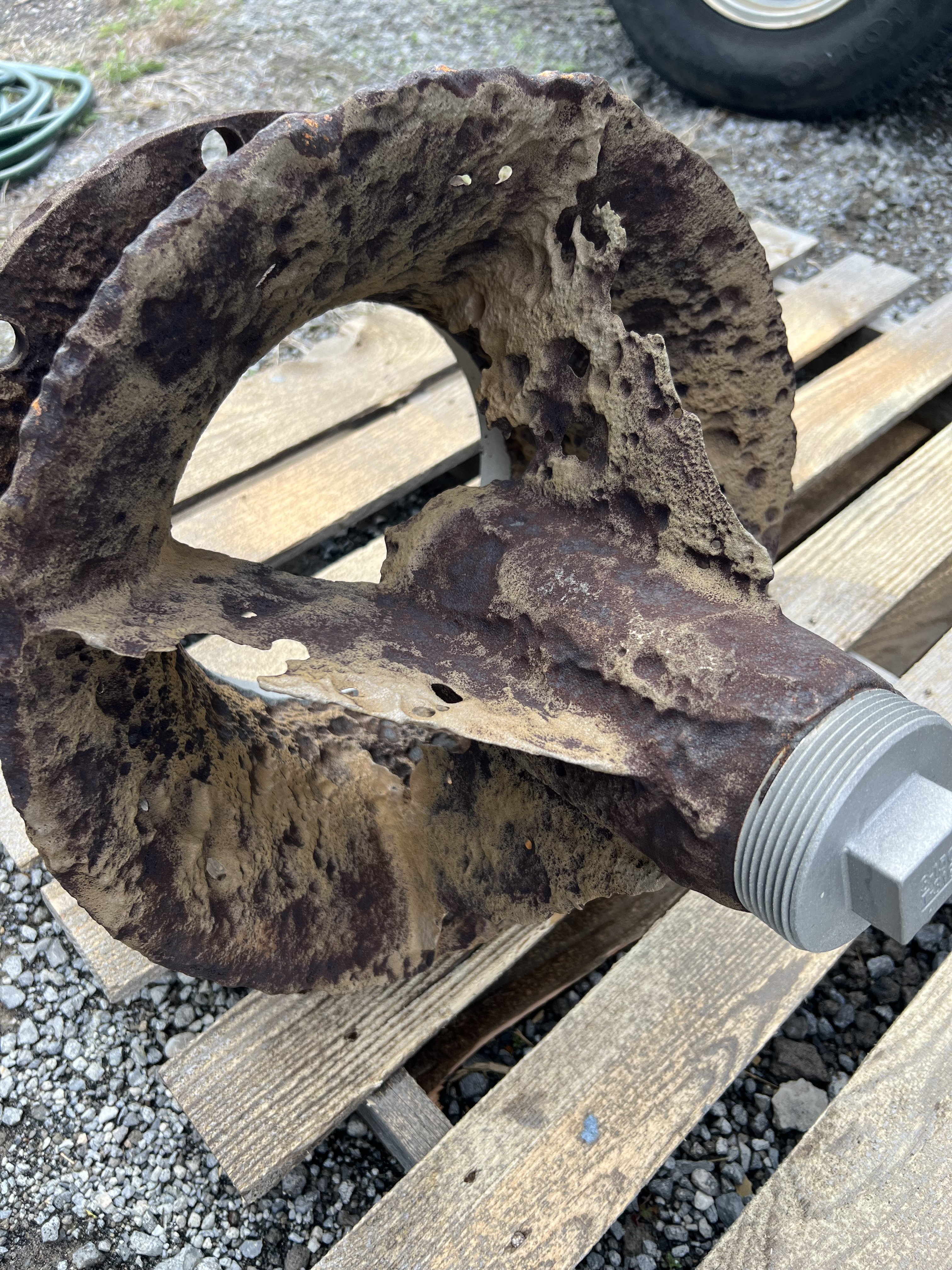

Problem: This suction bell he been in brackish water for over ten years and had not been taken out for service. They couldn’t get a new suction bell in less than six months and the needed to be back up and running in two weeks.

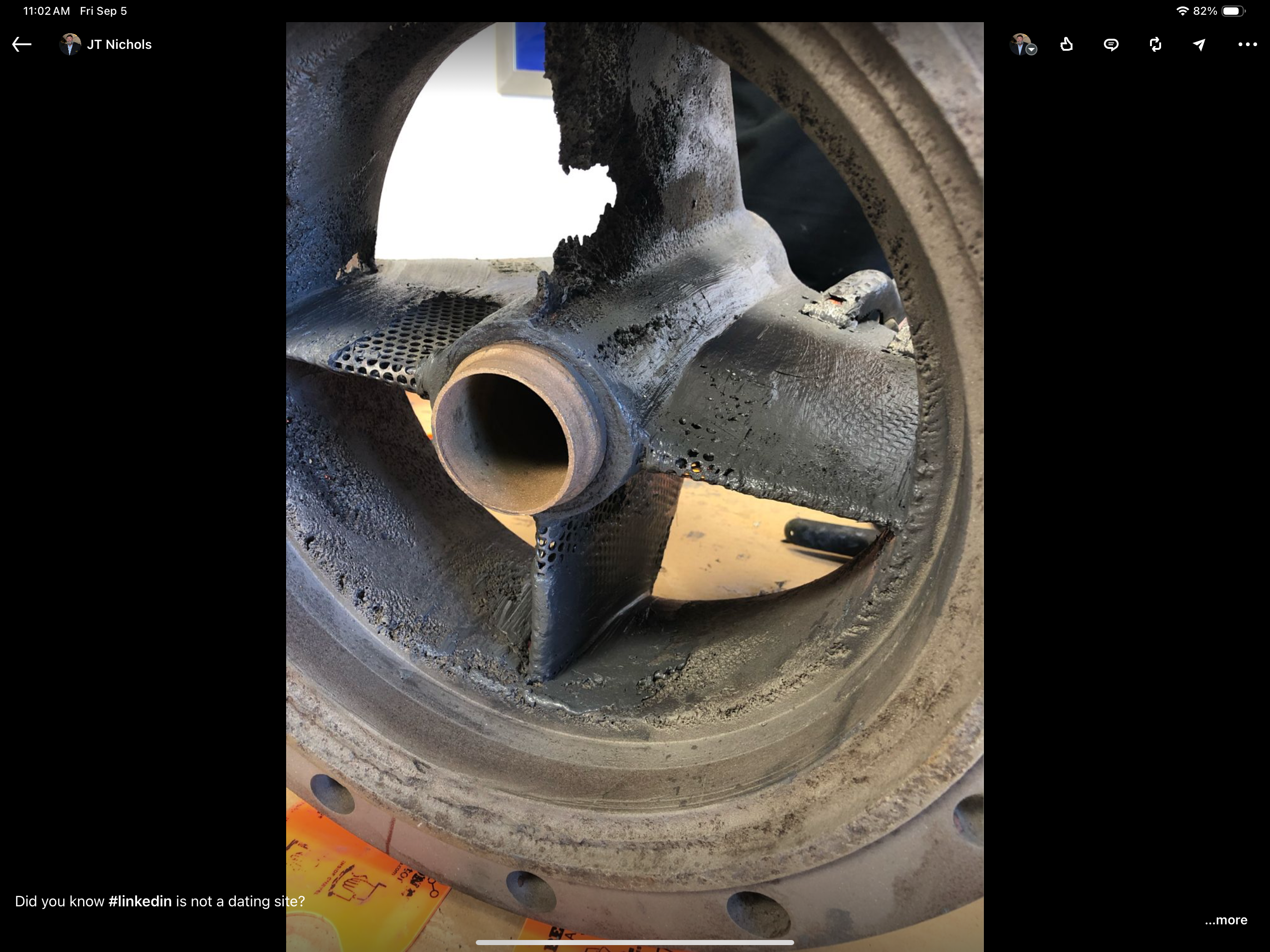

Removing salts was a major priority in the fist step of this repair.

Making repairs using Belzona 1111

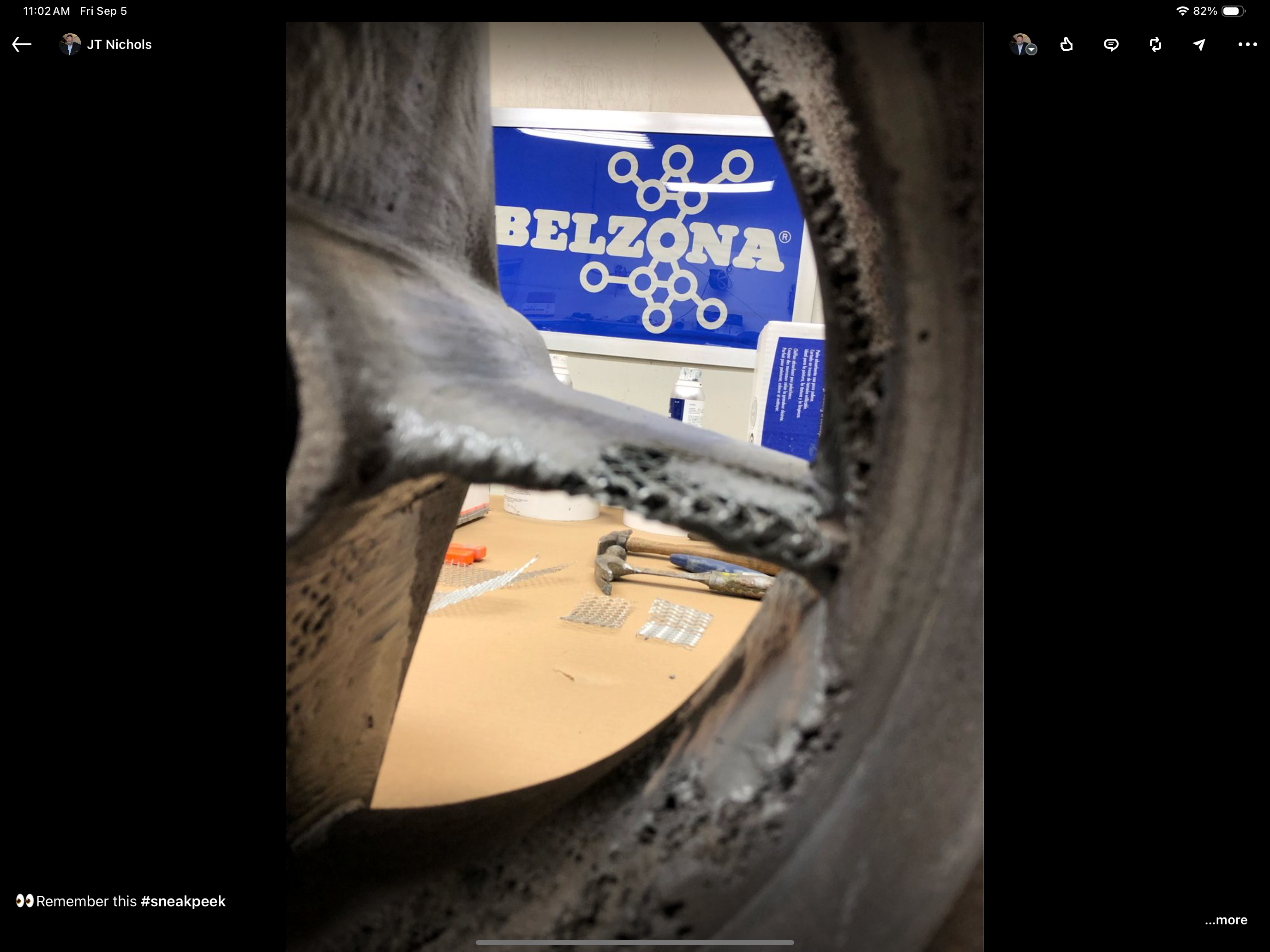

Here we are showing you a technique we use in the shop to fill voids and using Belzona 1111

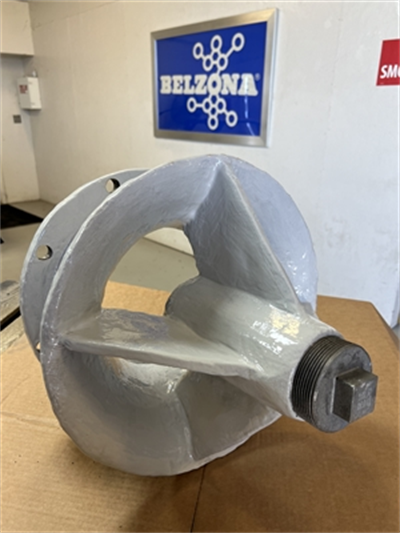

Finally we applied two coats of Belzona 1331 for a perfect finish.

Application Situation

This application had a repair cost of less than $3,000.00 saving this customer around $20,000.00. We had the suction bell back to the customer in less than a week saving the customer up to 4 months of down time.

Application Method

We washed the suction bell with Salt-Away to remove the salts absorbed in the metal to achieve a 20pm or less. Once that was achieved we rebuilt and skimmed all pitted areas with Belzona 1111. Then we applied two coats of Belzona 1331.

Belzona Facts

Using Belzona saved this customer over $20,000.00 and the only alternative was order a new suction bell with a 3-4 month lead time.
