Massive Seawater Evaporator Protected with Belzona 5892 at a Power Plant in Saudi Arabia

KHIA ID: 10118

Industry: Power (POWR)
Application: TCC-Tanks and Chemical Containment Areas (TCC)
Substrate: Carbon steel

Customer Location: Saudi Arabia
Application Date: April 2023

Products: Belzona 1511 (Super HT-Metal),Belzona 5892

Problem: A seawater evaporator at a power plant in Saudi Arabia was facing a severe internal corrosion issue.

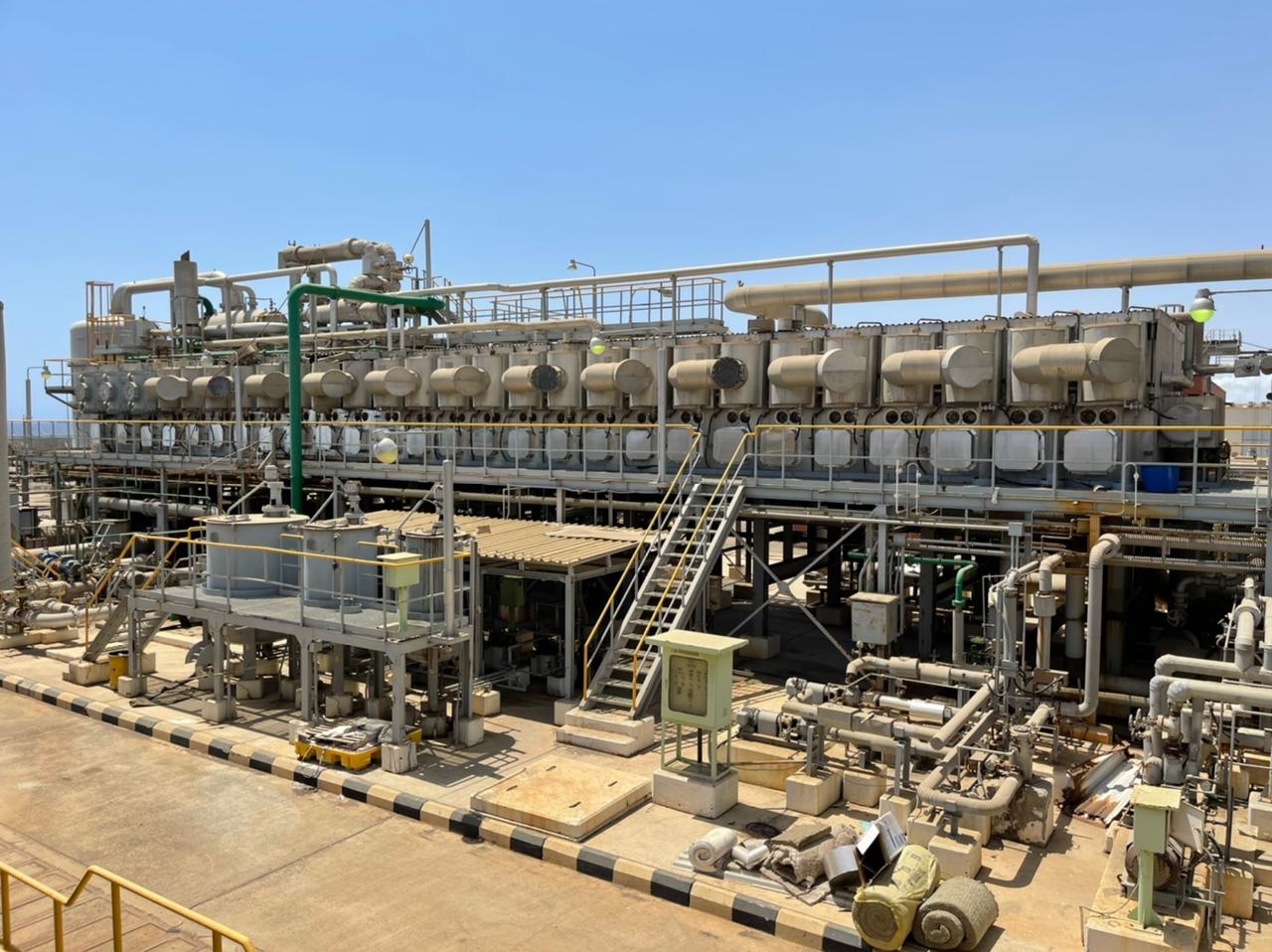

General overview of the seawater evaporator

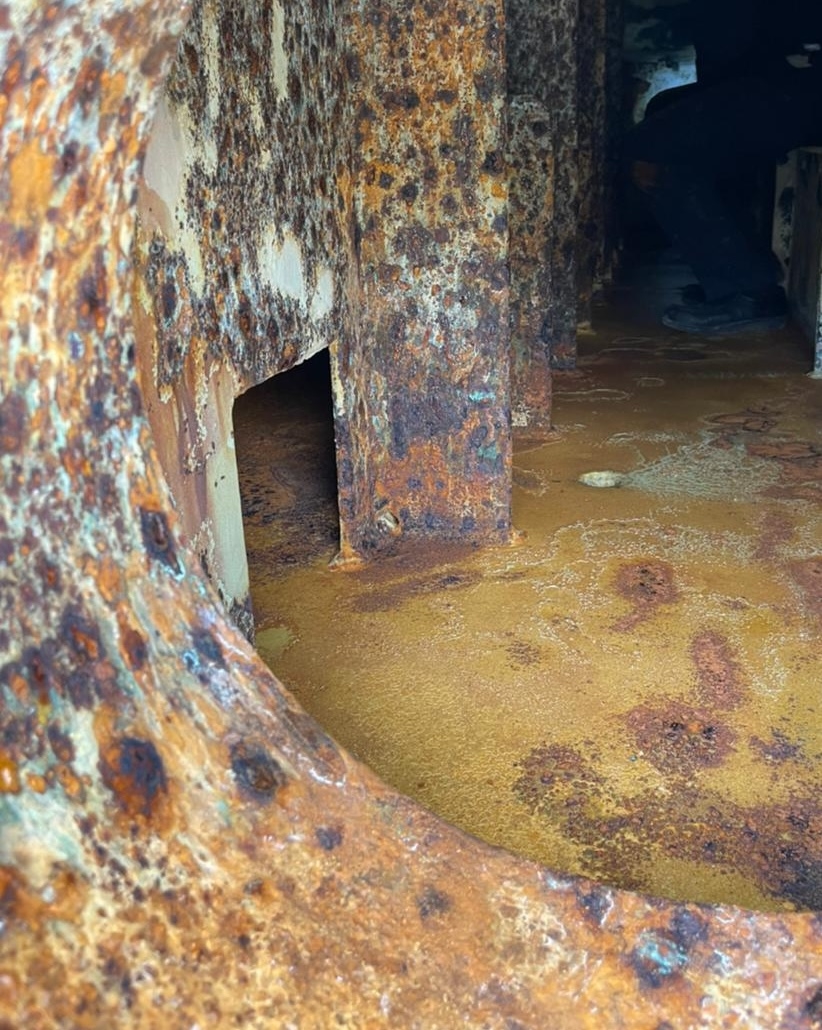

Condition before Belzona 5892 application

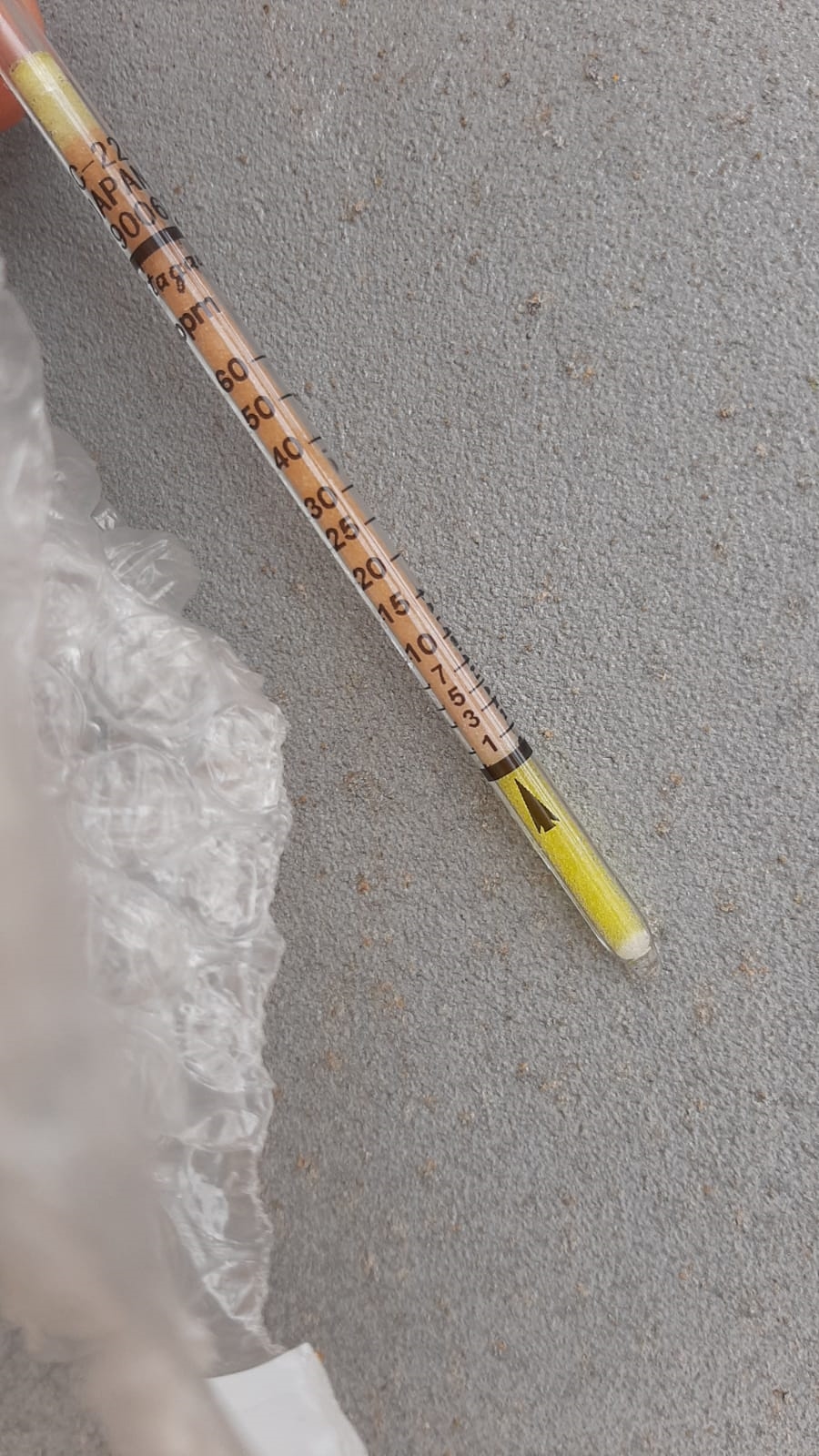

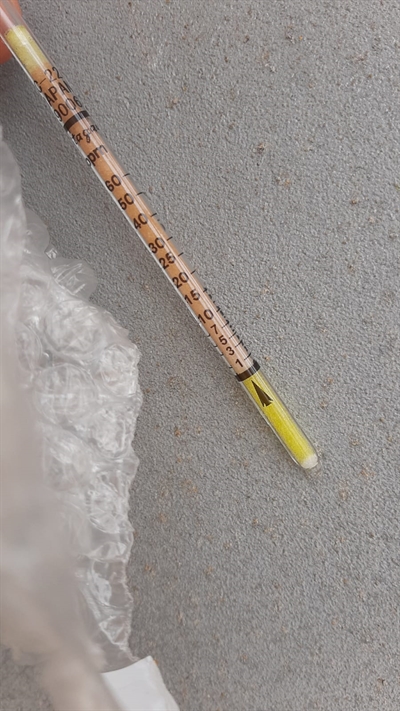

After grit blasting surface preparation and salt testing

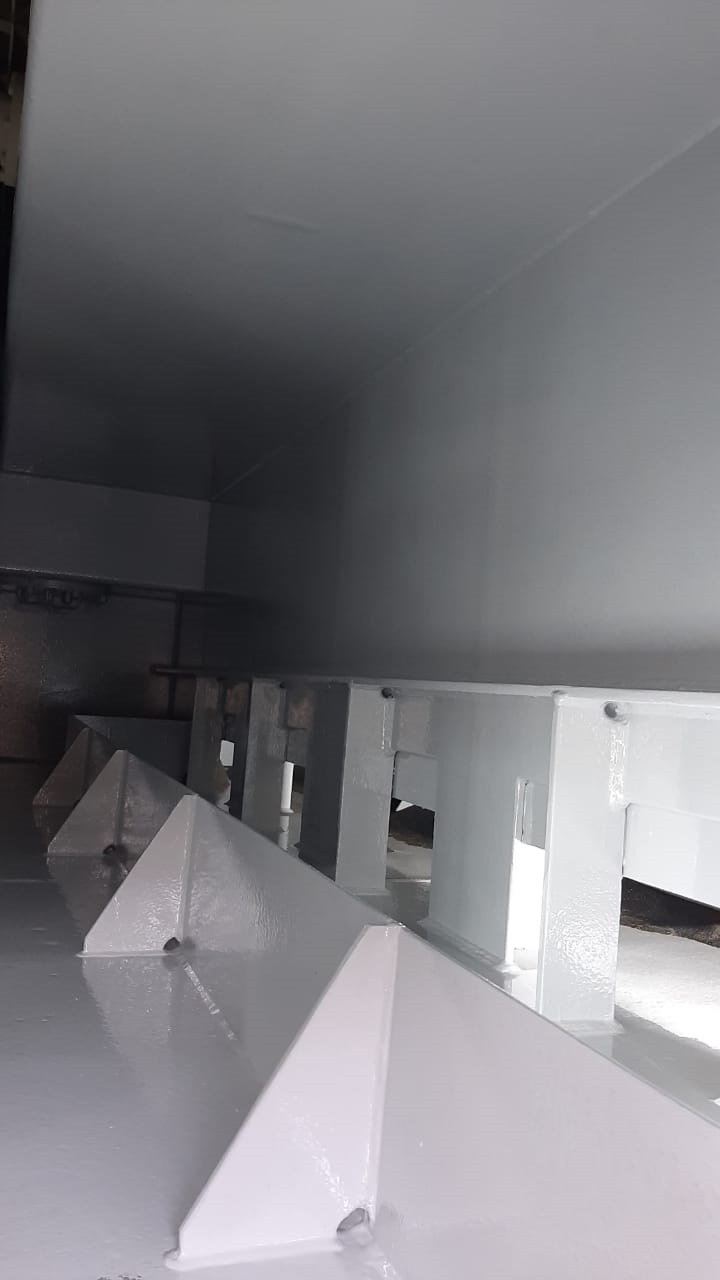

Completed application of Belzona 5892 system

Application Situation

The application of Belzona 5892 on the seawater evaporator provided substantial cost and time efficiencies by eliminating the need for costly replacement or extensive fabrication work.

Application Method

The Belzona 5892 system was applied on the seawater evaporator following a strict procedure: the surface was first prepared by abrasive blasting to achieve Sa 2½ cleanliness and a 75 micron profile using a grit blasting system. After thorough cleaning and inspection, deep pitting was rebuilt with Belzona 1511 (Super HT-Metal) and then Belzona 5892 was applied in two coats to meet the specified thickness. Wet film gauges were used during application, and curing was monitored as per the data sheet, followed by final checks using a holiday detector and dry film thickness gauge.

Belzona Facts

Belzona was selected because previous vendor solutions failed to provide lasting protection, leading to repeated maintenance and higher costs. Belzona 5892 offers superior resistance to seawater corrosion and high temperatures, ensuring long-term reliability in service.
