Repair and coating of erosion corrosion damage on the main engine cooler cover

KHIA ID: 9800
Industry: Marine (MRNE)
Application: SOS-Ships and Offshore Structures (SOS)
Substrate: Cast Iron
Customer Location: TURKEY, İSTANBUL
Application Date: March 2025
Products: Belzona 1111 (Super Metal),Belzona 1321 (Ceramic S-Metal)
Problem: Metal losses and severe pittings occurred in the main engine cooler cover due to erosion and corrosion. The customer wanted to repair and protect the equipment with Belzona against future erosion and corrosion damage.
SA 2.5 steel grit blasting on main engine air cooler cover

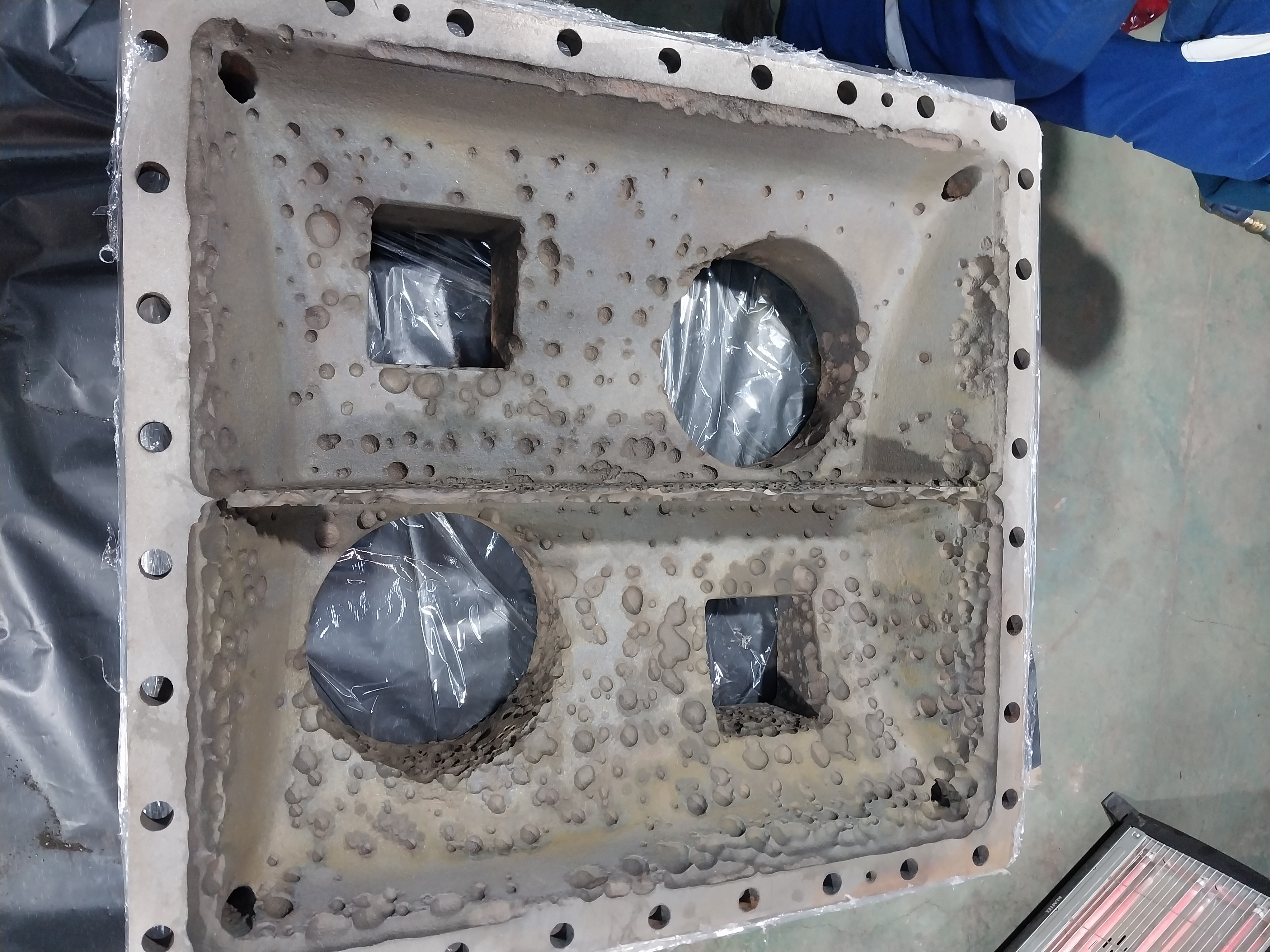

After SA 2.5 steel grit blasting

Clean with acetone before application

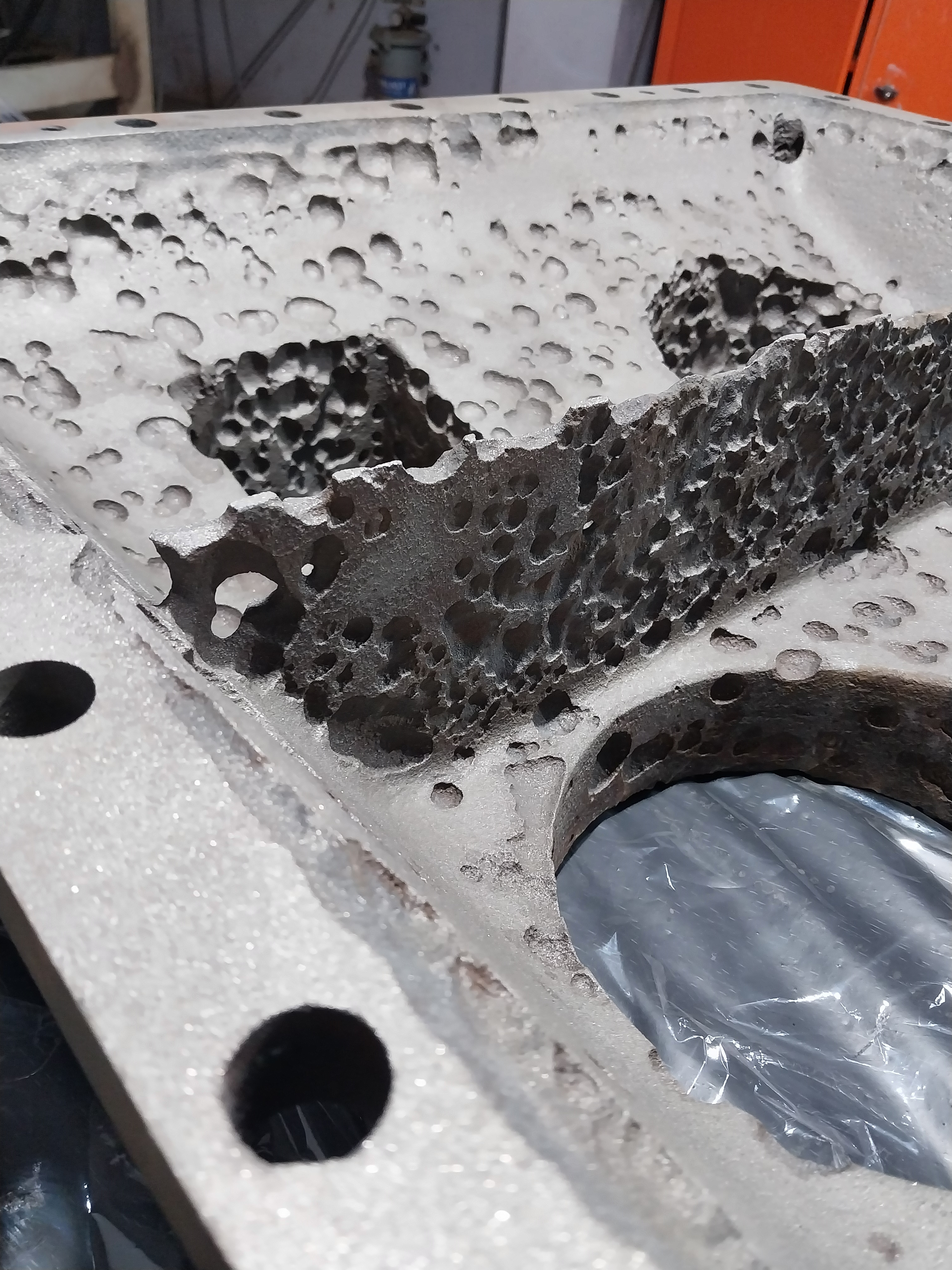

Severe metal losses

Filling pittings with Belzona 1111 Super Metal

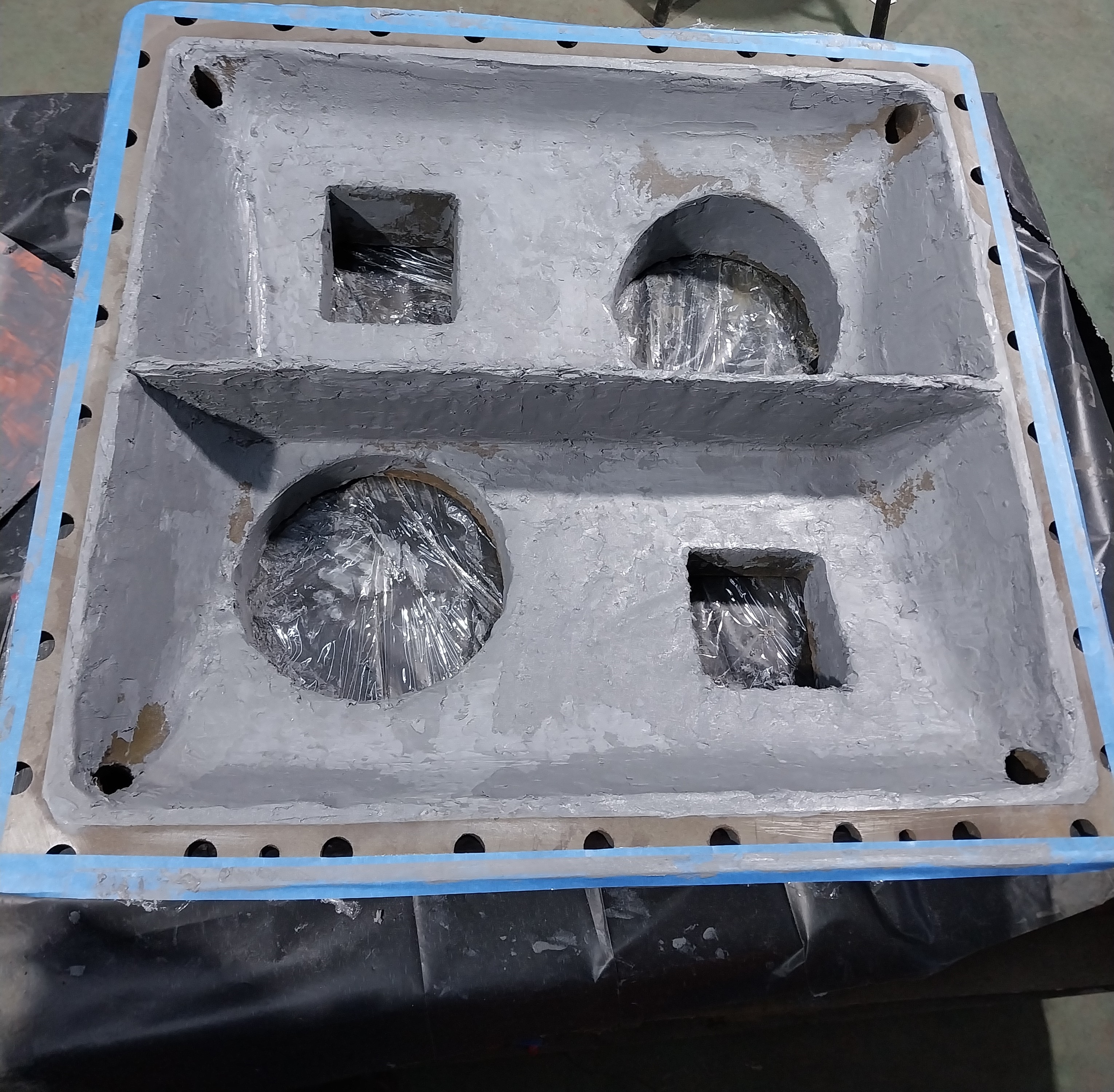

After repair with Belzona 1111 Super Metal

Belzona 1321 Ceramic S-Metal with 2 layers of protective coating

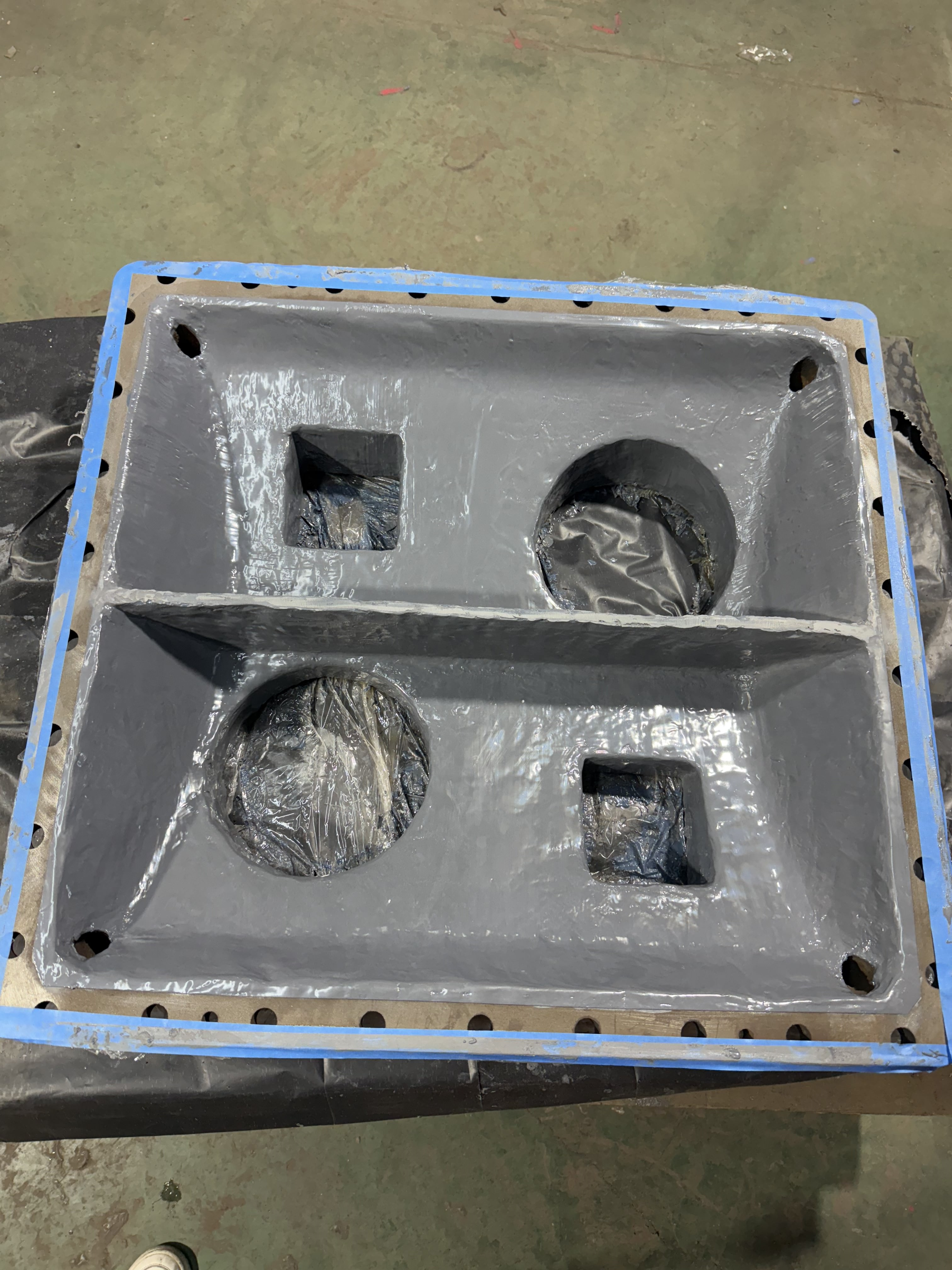

After coating with 2 layers of Belzona 1321 Ceramic S-Metal

Application Situation
Main engine cooler cover of bulk carrier ship. Customer wanted to repair the cover in short time. Instead of welding repair, Belzona saved time and in addition provided long lasting protection with ceramic coating.
Application Method
Applications were carried out in accordance with Belzona Know-How System Leaflets SOS-01 and SOS-02.
Belzona Facts
Repairing the equipment with other repair methods (such as welding) would be a long and costly method. Since these damages would occur again even if repaired with welding, the customer wanted to repair the equipment with Belzona and then protect the equipment against future wear and corrosion-erosion damage. We repaired the equipment with Belzona 1111 Super Metal within 1 day and protected it with Belzona 1321 Ceramic S-Metal. In this way, the customer saved both time and money also protected the equipment.
