Belzona system repairs areas to wet pulp screw conveyor

KHIA ID: 9957
Industry: Food & Drink (FOOD)
Application: SHM-Solids Handling Machinery (SHM)
Substrate: Stainless-steel
Customer Location: Kings Lynn
Application Date: August 2025
Products: Belzona 1311 (Ceramic R-Metal),Belzona 1391T
Problem: A Wet Pulp Screw Conveyor with localised areas of erosion and scoring. These defects were causing process issues and preventing the conveyor from operating at its optimum capacity.

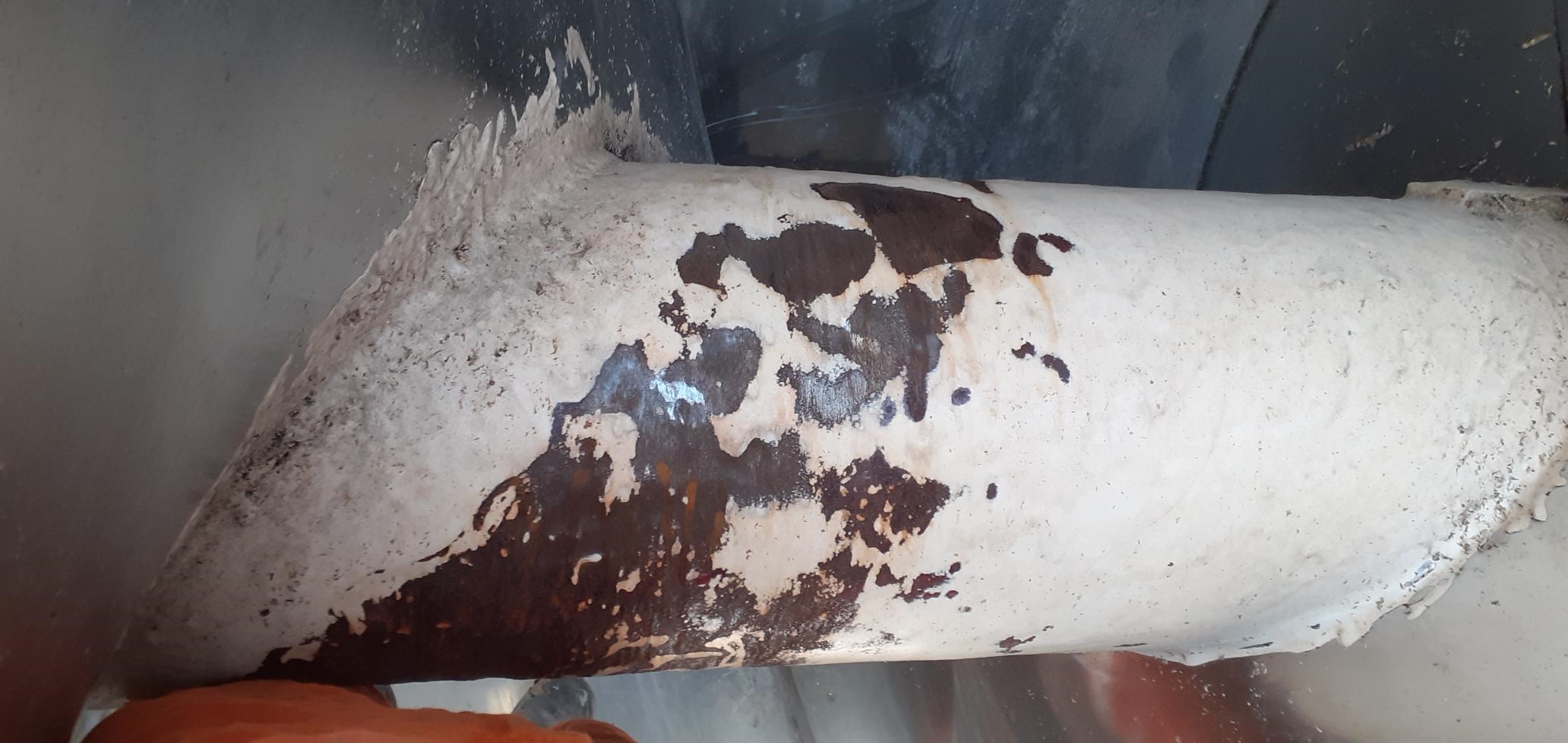

Close up of eroded screw conveyor shaft

wet pulp screw conveyor with localised areas of erosion and scoring

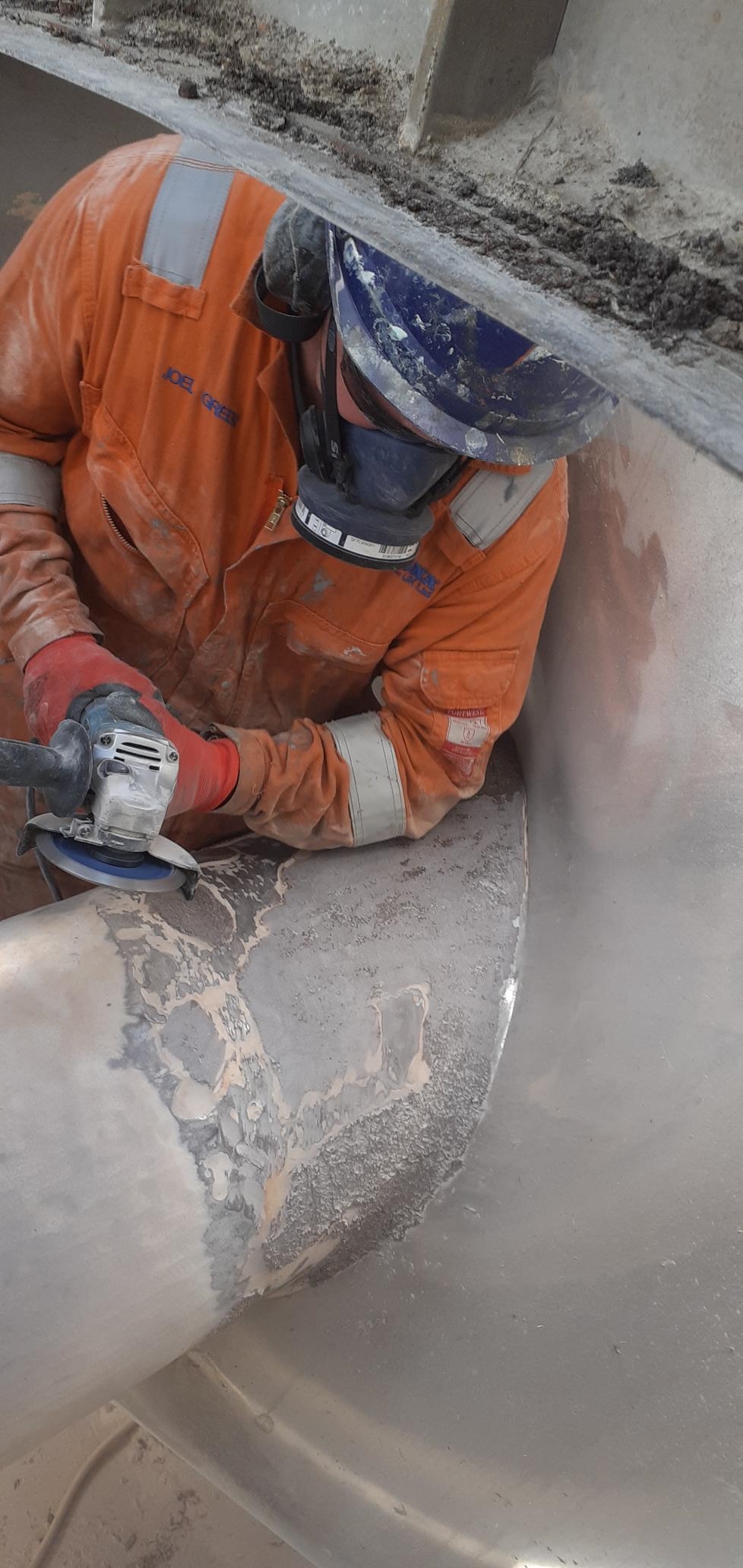

A Man with power tools and personal protection equipment working on eroded areas of screw conveyor

The affected areas are prepared to minimum surface profile using hand tools

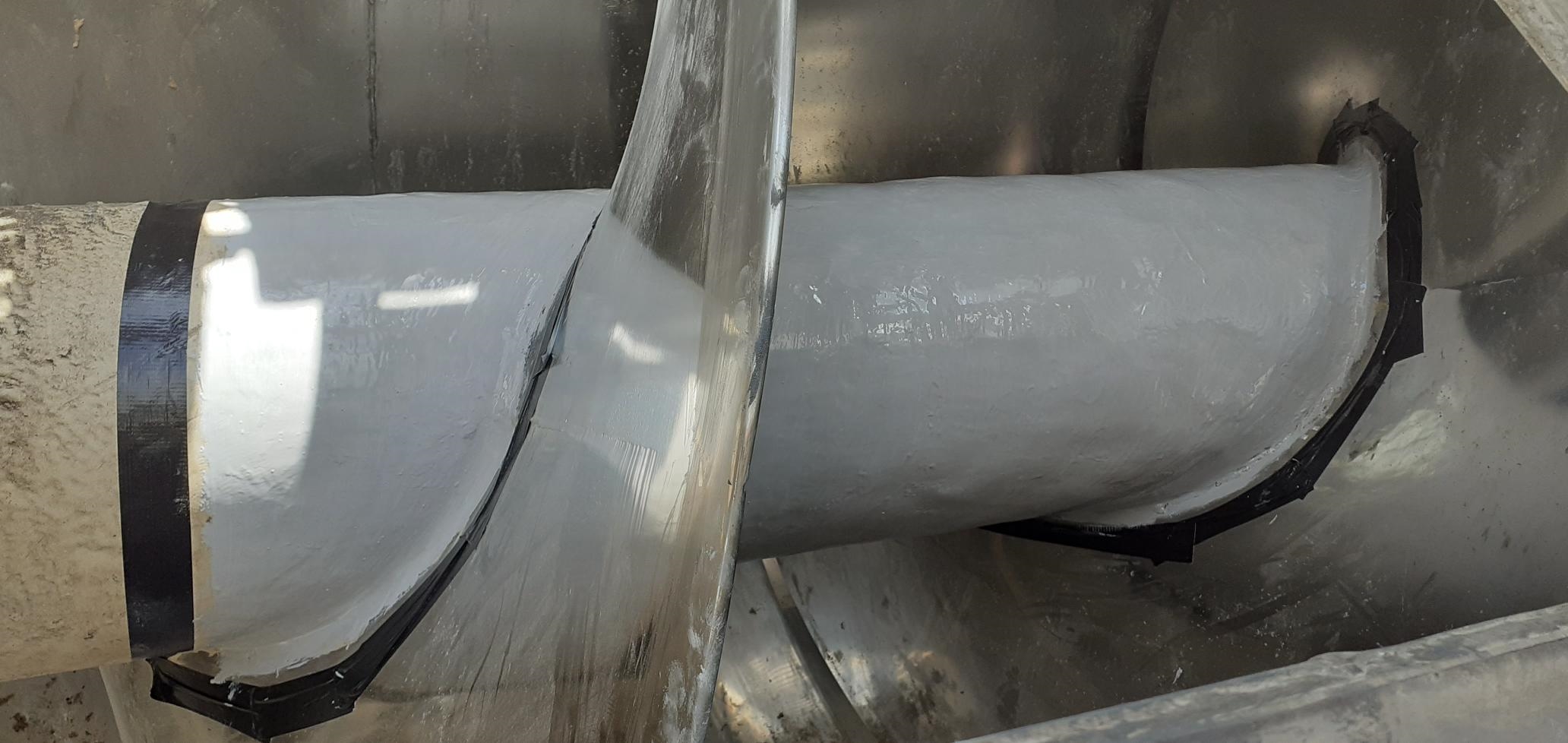

The first stage of Belzoan repair solution to screw conveyor

Surface is rebuilt using Belzona 1311 (Ceramic R-Metal) and reinforcement sheet

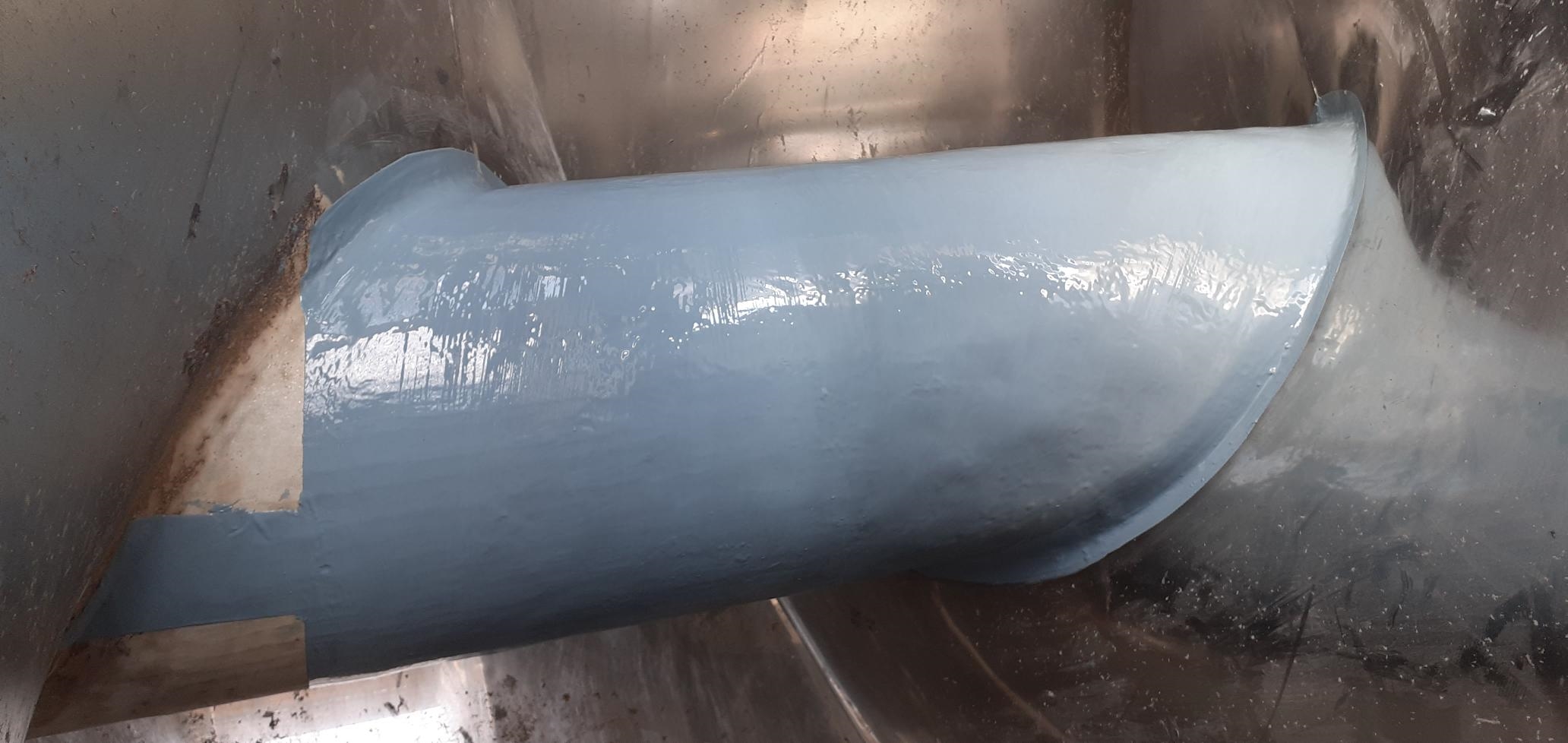

Completed application of screw conveyor repair

Two coats of Belzona 1391T adds protection to the screw conveyor

Application Situation
The three areas of concern are located on the shaft only, affecting three separate sections between the screw flights. The customer requested
that the screw remains in position and worked on in situ. To carry this out, we required the equipment to be safely isolated but free to rotate in order to aid surface preparation and application of the Belzona system.
Application Method
To limit disruption, the application areas were prepared using power tools only, in accordance with SSPC-SP11.

Once prepared, the areas will be thoroughly cleaned. Any sections showing loss of profile were rebuilt back to standard using Belzona. Following this, the full circumferential repair areas were reinforced using Belzona 1311 and Belzona 9341 then be left to stabilise overnight.

The following morning, the repaired areas were inspected and then received two coats of Belzona 1391T.
Belzona Facts
Belzona's solution provided additional protection and improved the asset’s life expectancy. The repair was carried out in situ and within a timely manner, which ensured minimal downtime.
