Flue Gas Compressor Index Cover Repair and Coating with Belzona

KHIA ID: 10168

Industry: Food & Drink (FOOD)
Application: PDP-Positive Displacement Pumps (PDP)
Substrate: Cast Iron

Customer Location: Saudi Arabia
Application Date: July 2025

Products: Belzona 1391T,Belzona 1511 (Super HT-Metal)

Problem: The pump cover had suffered severe erosion damage due to prolonged service conditions. As a result, the client classified the pump as scrap and placed it in the yard, assuming it was beyond economical repair.

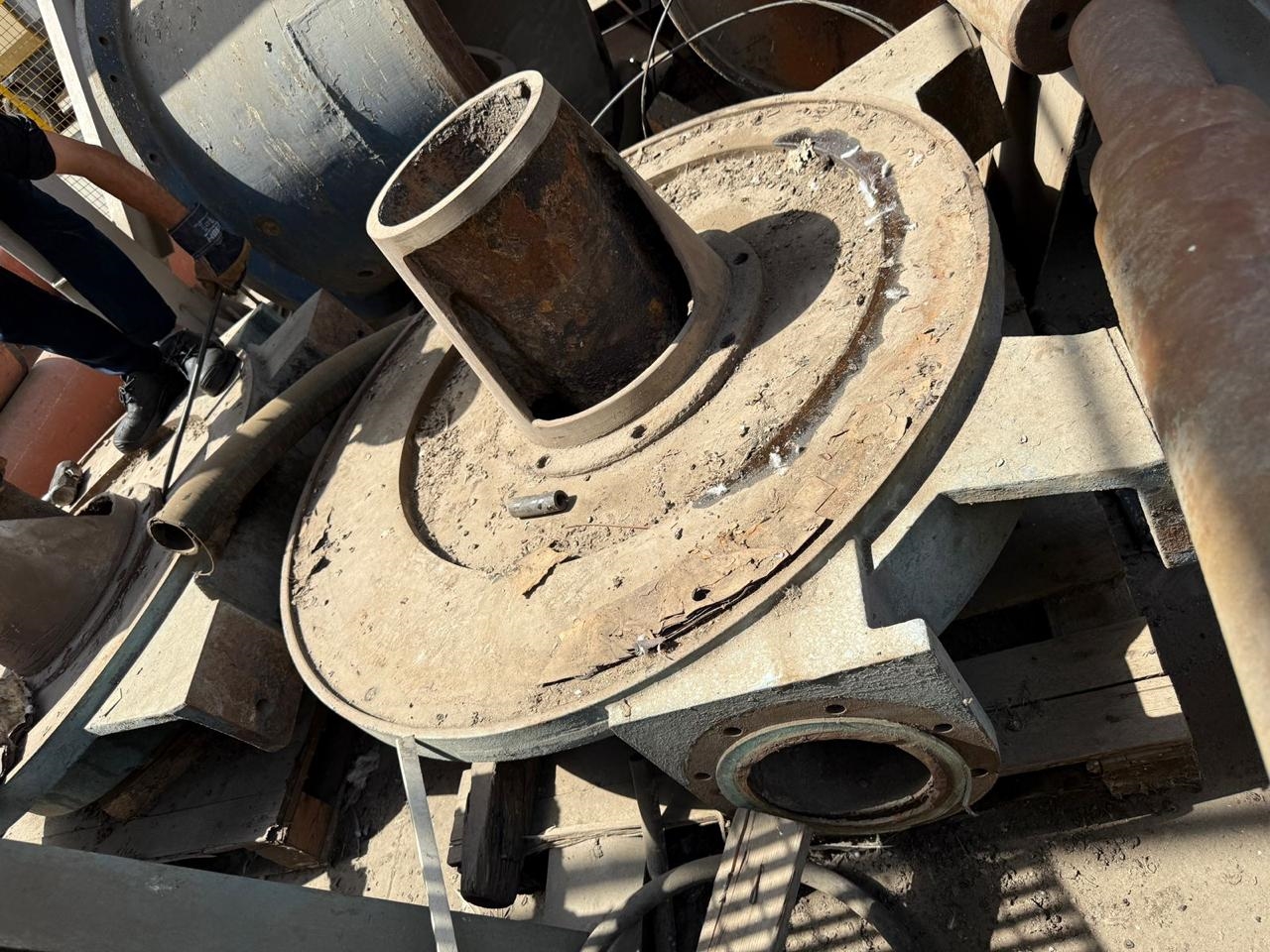

Eroded pump cover

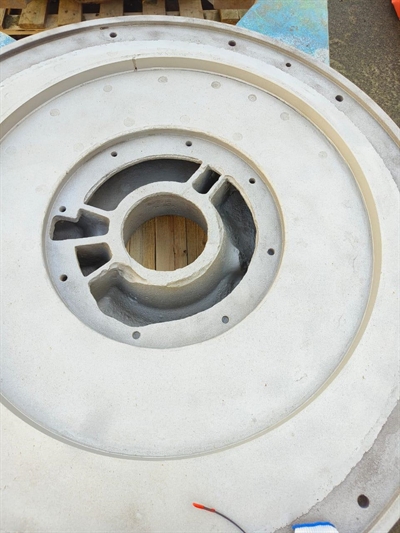

Surface preparation carried out by grit blasting

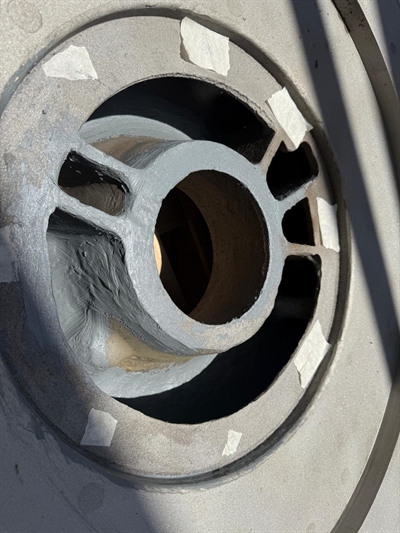

Surface rebuilt using Belzona 1511 (Super HT-Metal)

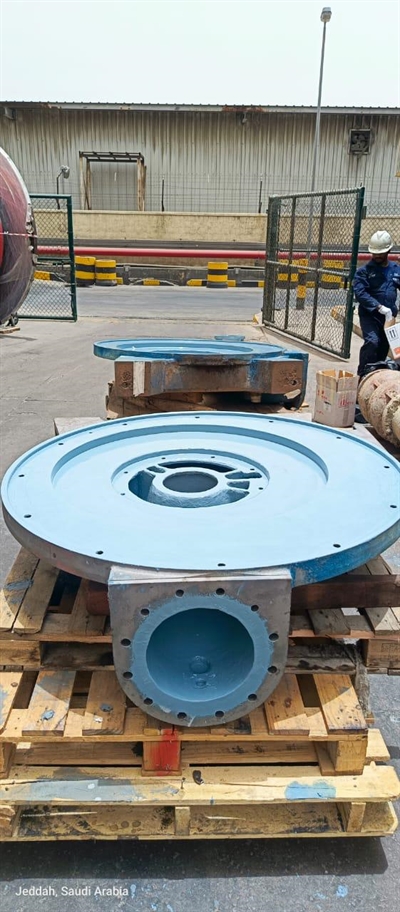

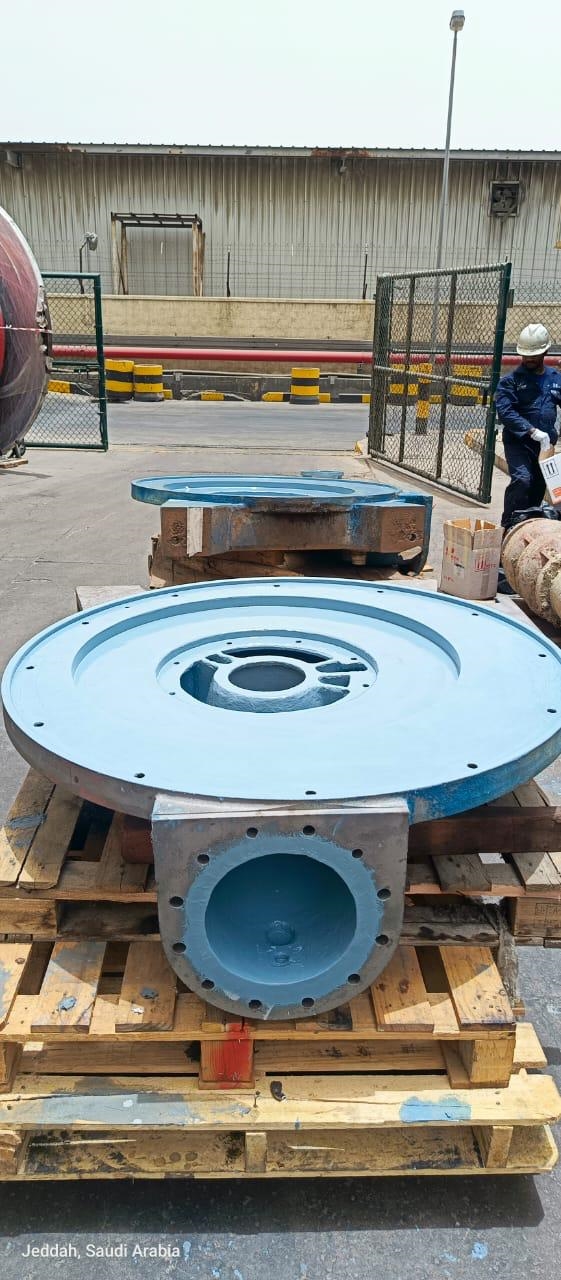

Pump cover coated with Belzona 1391T

Application Situation

The erosion had reduced material thickness, adversely affected hydraulic profiles, and raised concerns regarding reliability and continued operation. The pump cover was repaired and coated at approximately 20% of the cost of a new pump.

Application Method

The pump cover was grit blasted to remove corrosion and achieve the minimum required surface profile. The eroded areas were rebuilt using Belzona 1511 (Super HT-Metal). A two-coat system of Belzona 1391T was then applied to provide long-term protection against erosion and corrosion.

Belzona Facts

This approach extends service life, reduces replacement costs, and minimizes downtime compared with purchasing new pumps.
