Pipe spool repaired with Belzona SuperWrap II

KHIA ID: 10030

Industry: Water / Wastewater (WATR)
Application: VPF-Valves, Pipes and Fittings (VPF)
Substrate: Carbon steel

Customer Location: Scotland, UK
Application Date: October 2024

Products: Belzona 1212,Belzona SuperWrap II

Problem: A large crack had formed in a pipe spool. This pipe was located deep within a reservoir sump & was impossible to remove without major structural works. A repair had to be put in place in-situ to prevent further leakage & to reinforce the area.

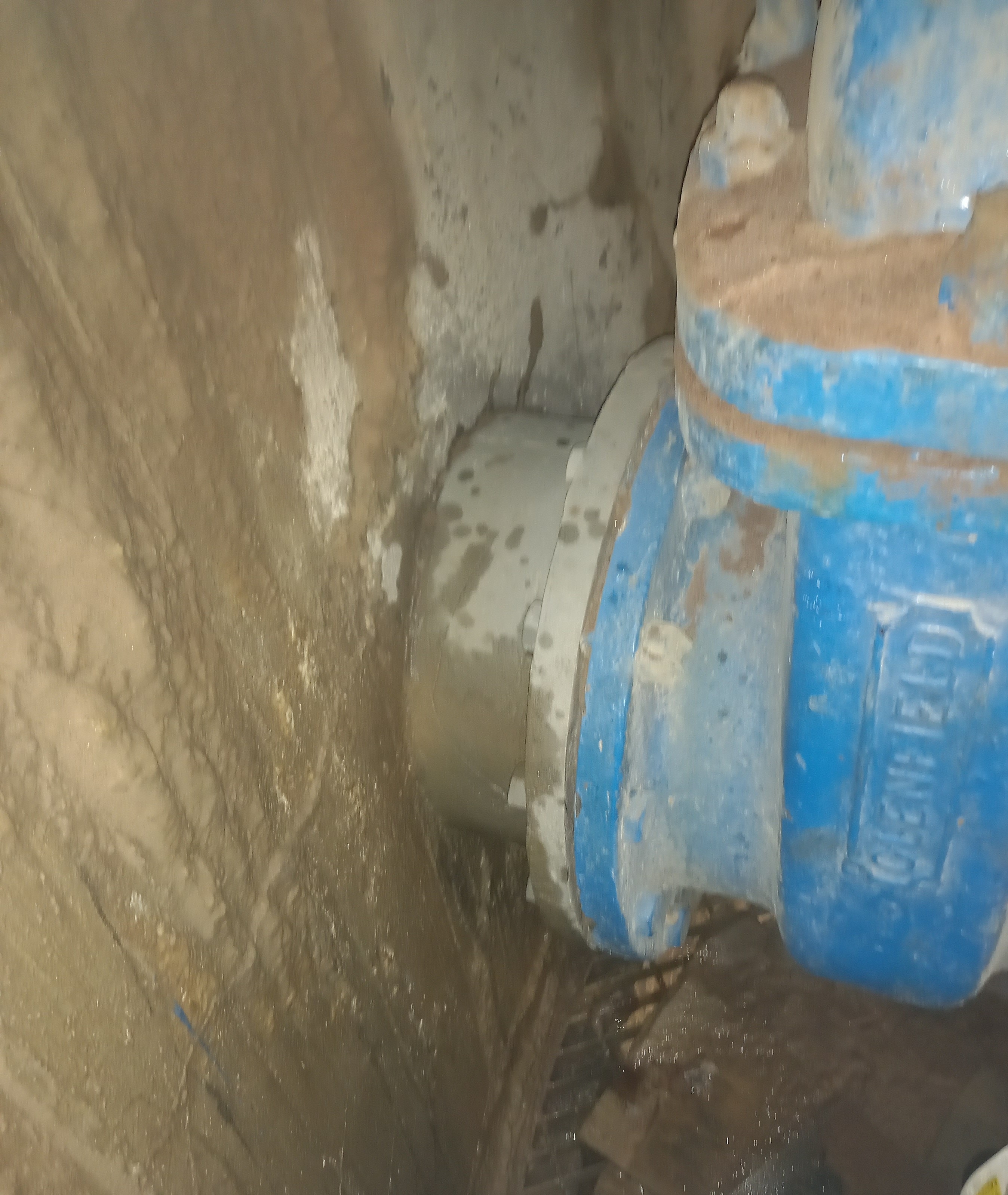

The leaking spool was built into the concrete sump wall - this went directly out to the reservoir.

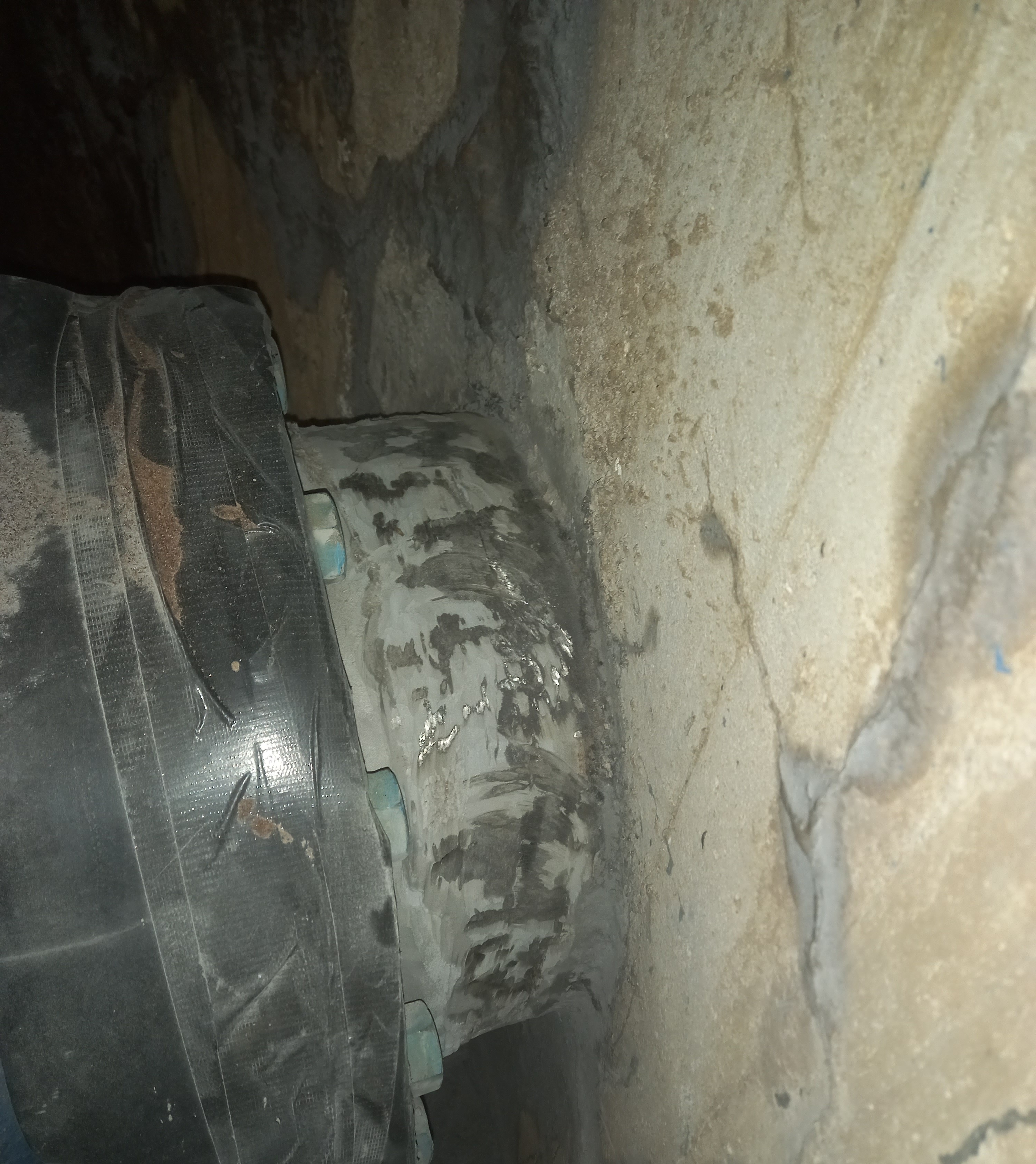

Surface preparation & application of Belzona 1212

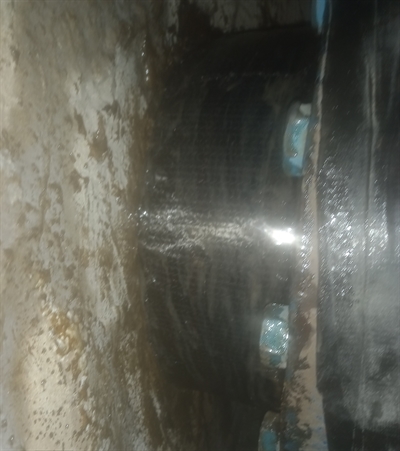

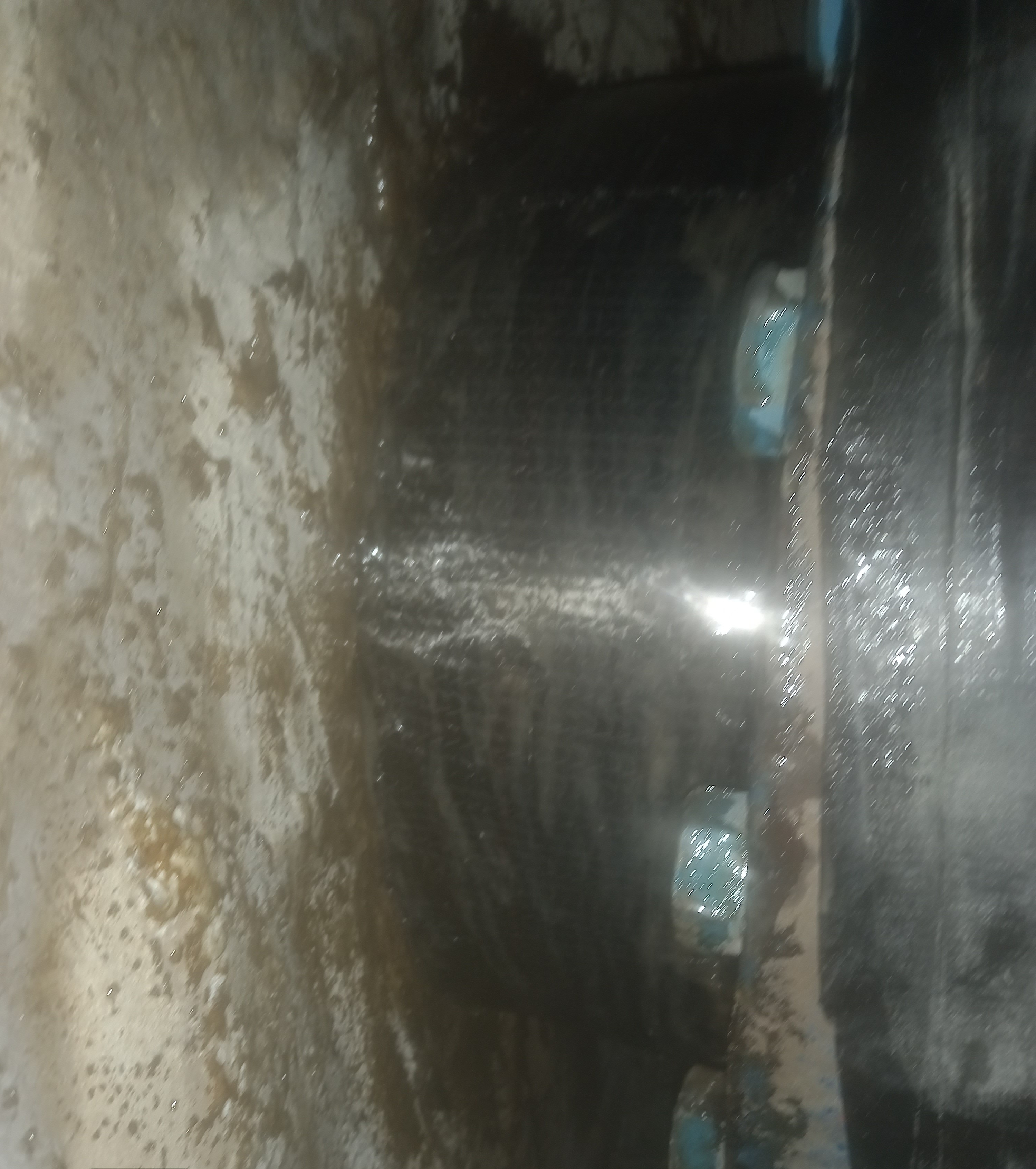

Layers of Belzona SuperWrap II applied

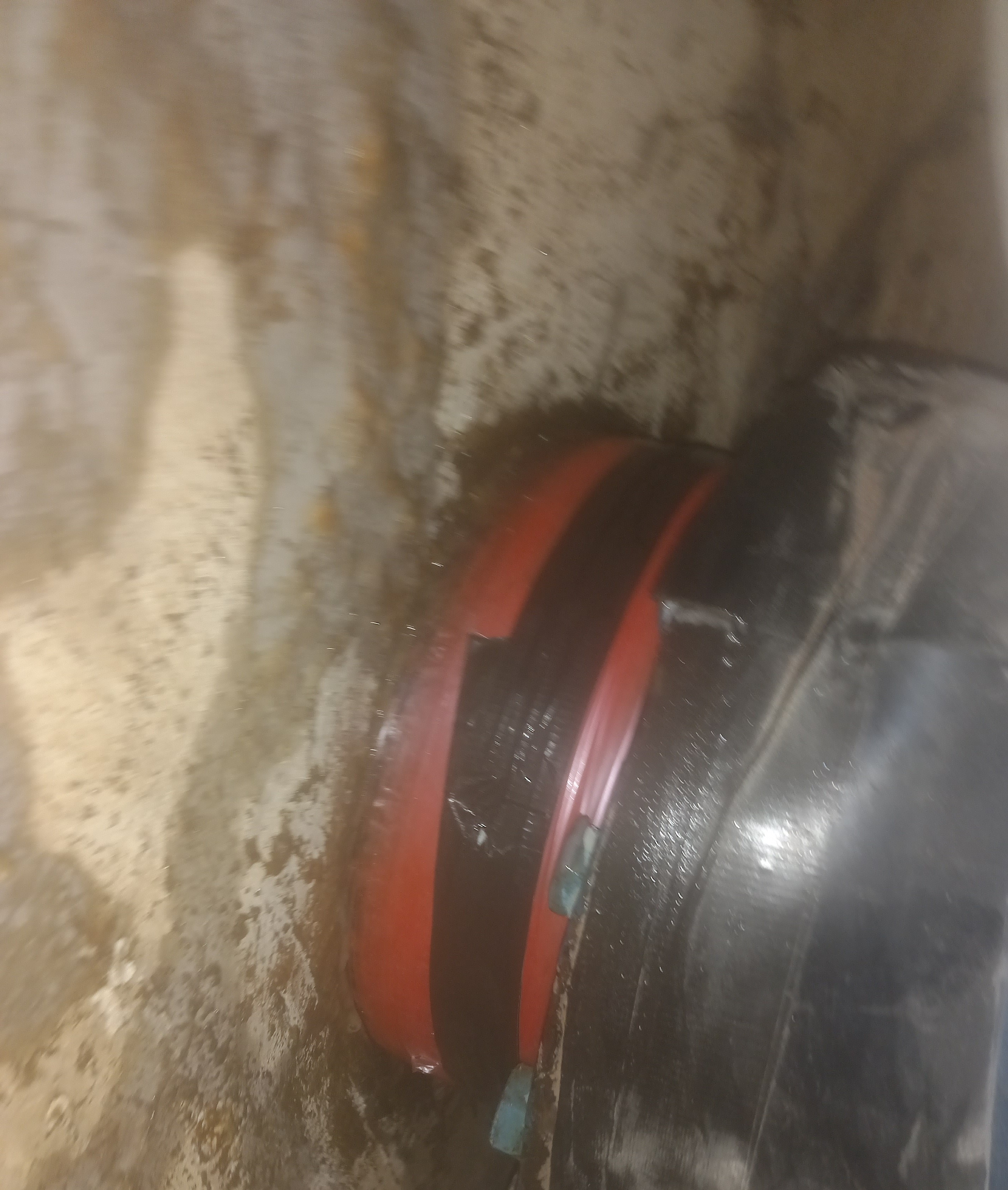

Repair consolidated

Application Situation

Using the Belzona option meant the pipe could remain in place. It was isolated for the duration of the works & cure.

Application Method

The area was first grit blasted to SA2.5 & 75 microns. Belzona 1212 was then applied to any cracked areas. Four layers of Belzona SuperWrap II were then applied & consolidated using Belzona 9382.

Belzona Facts

Belzona 1212 carried the WRAS approval required for water contact. Using the SuperWrap II system imparted additional strength to the pipe to reduce the chances of further cracking.
