Tank base sealing on Hot and Cold sump Vessels

KHIA ID: 10278
Industry: Mining & Quarrying (MINQ)
Application: GSS-Gaskets, Seals and Shims (GSS)
Substrate: Cast Iron
Customer Location: South Africa
Application Date: May 2026
Products: Belzona 3111 (Flexible Membrane),Belzona 4111 (Magma-Quartz)
Problem: Worn and corroded bases on two storage tank vessels (Hot and Cold sumps) demanded attention to prevent structural failure or leaks. The Distributor was contacted by the Smelter Mine to inspect the vessels and provide a suitable and cost effective solution. The application approach using this two product system provides exceptional preventative and structural benefits.

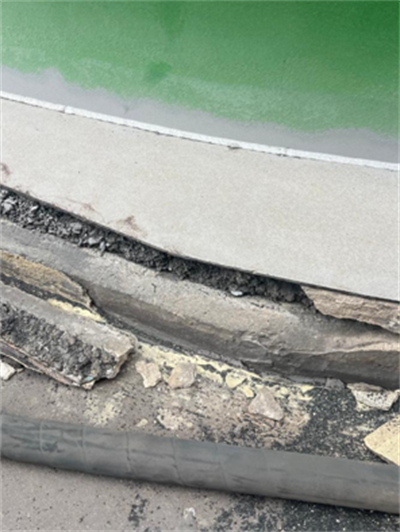

On inspection

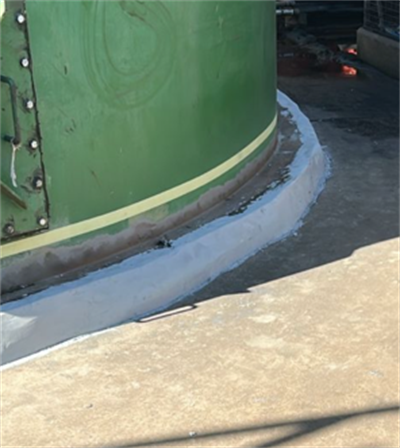

Rebuilding the concrete with Belzona 4111 Magma-Quartz

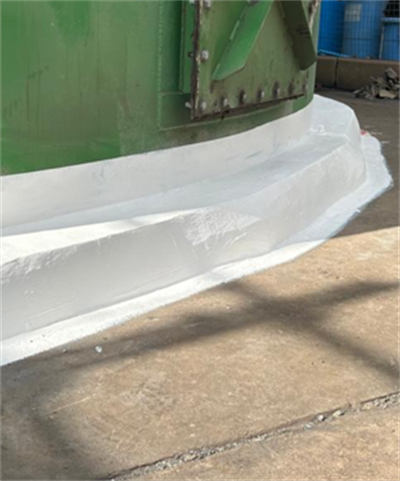

After applying Belzona 3111 Flexible Membrane

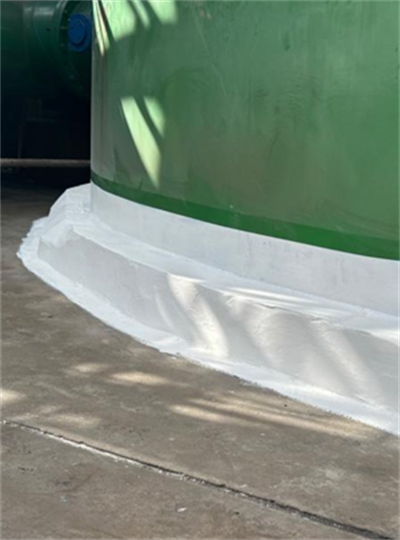

After applying Belzona 3111 Flexible Membrane to vessel base

Application Situation
Belzona 4111 alongside 3111 is a highly effective, cost saving method for tank base sealing and repairs. The preparation, cleaning and application was completed within 5 days, working within the Belzona 4111 and 3111 IFU specifications. We have assisted the plant with similar Belzona application work before, and they were happy to proceed with the Belzona solution.
Application Method
Belzona 4111 (Magma-Quartz) was used to rebuild the concrete structure. With Belzona 3111 (Flexible Membrane) breathable, microporous system applied to seal between the steel tank and concrete.
Belzona Facts
Using the two product system provides exceptional preventative an structural benefits. Saving the customer time and money.
