Zamboni Bay concrete restoration

KHIA ID: 9584

Industry: Local Authorities & Municipalities (LAMU)
Application: FPA-Floor Problem Areas (FPA)
Substrate: Concrete

Customer Location: Campbell River, BC
Application Date: June 2024

Products: Belzona 4111 (Magma-Quartz)

Problem: The concrete where the Zamboni exits the ice sheet was badly deteriorated and needed restoration

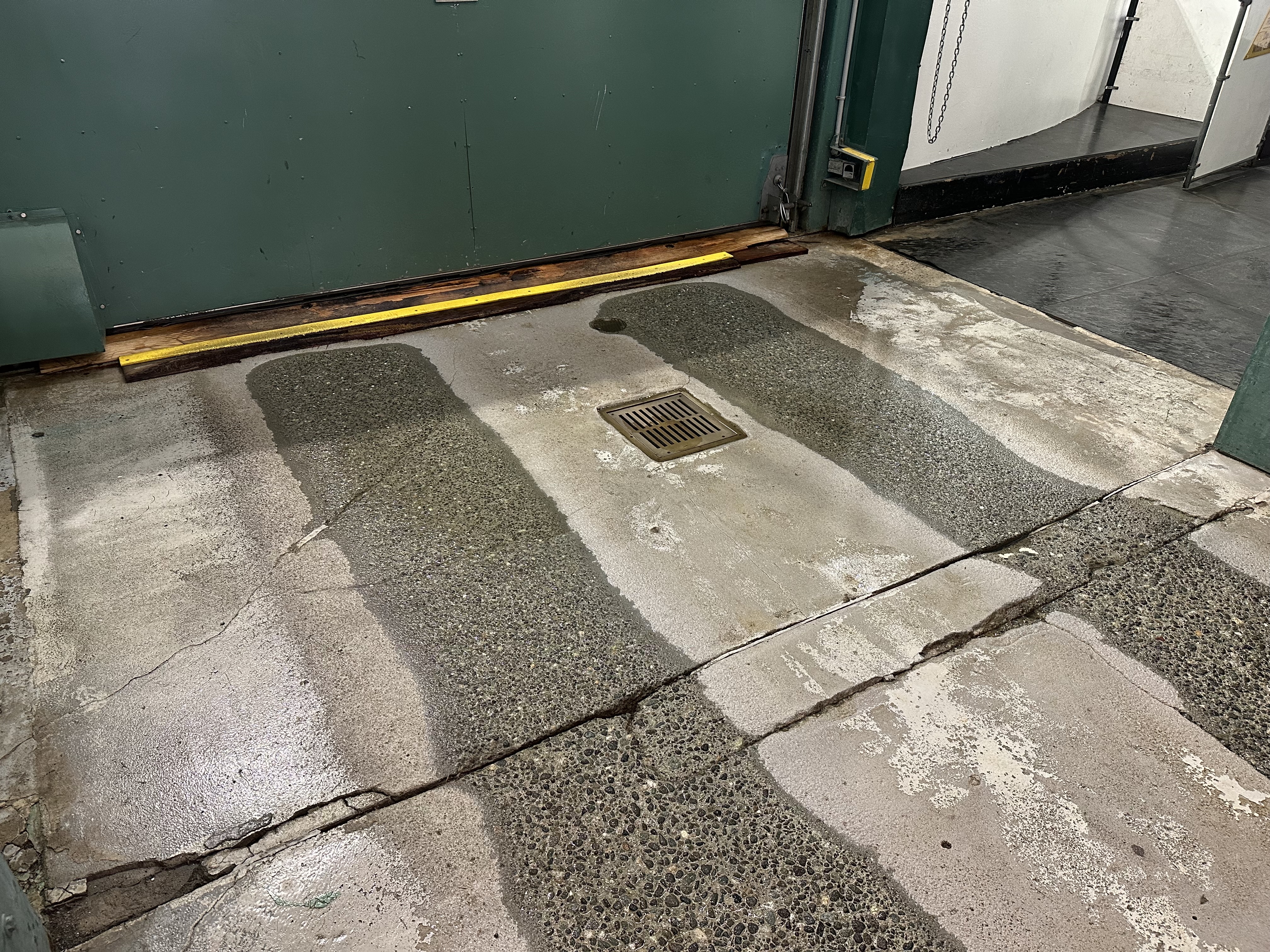

Condition of concrete where the Zamboni exits the ice-sheet

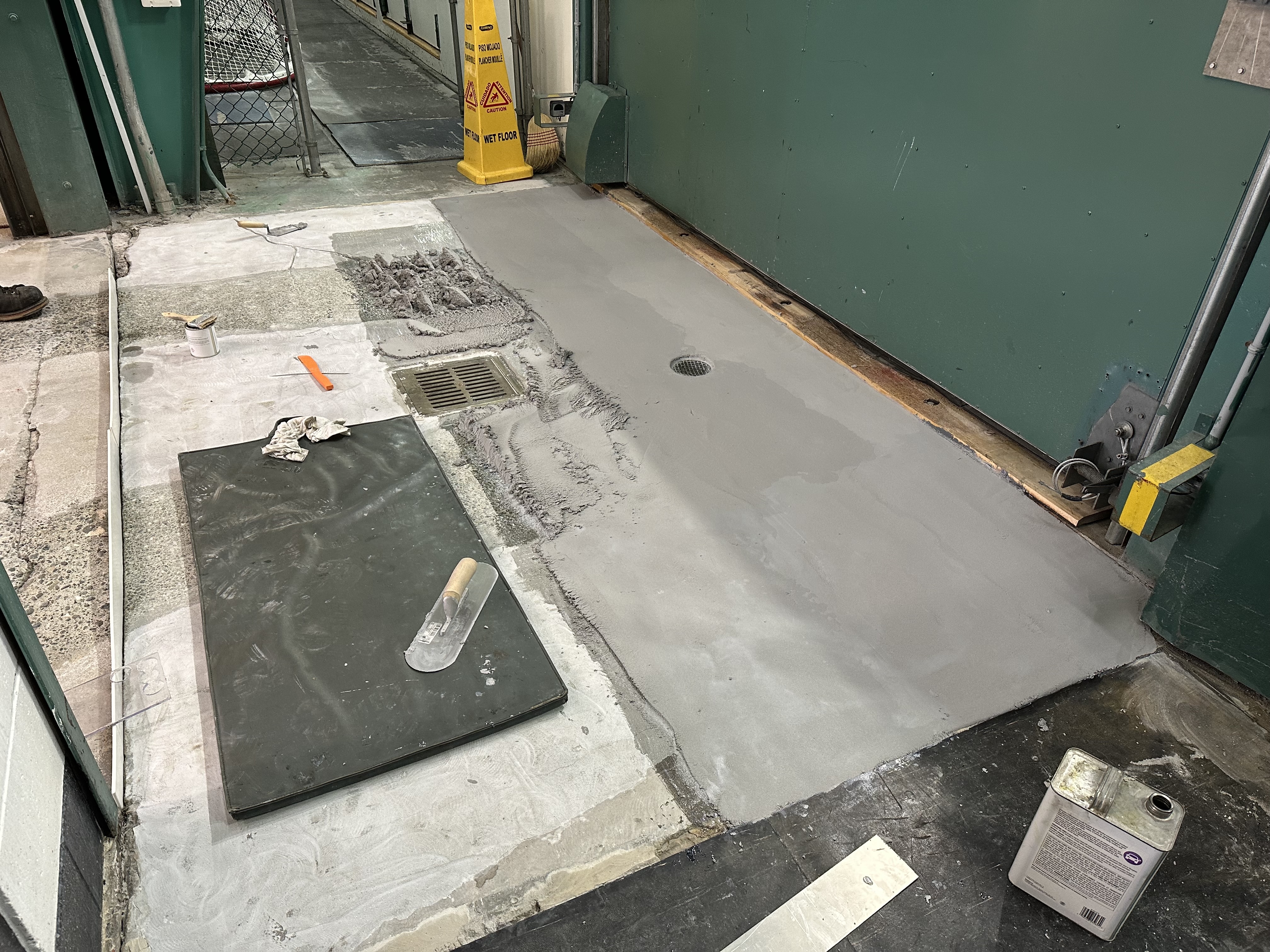

Application in progress

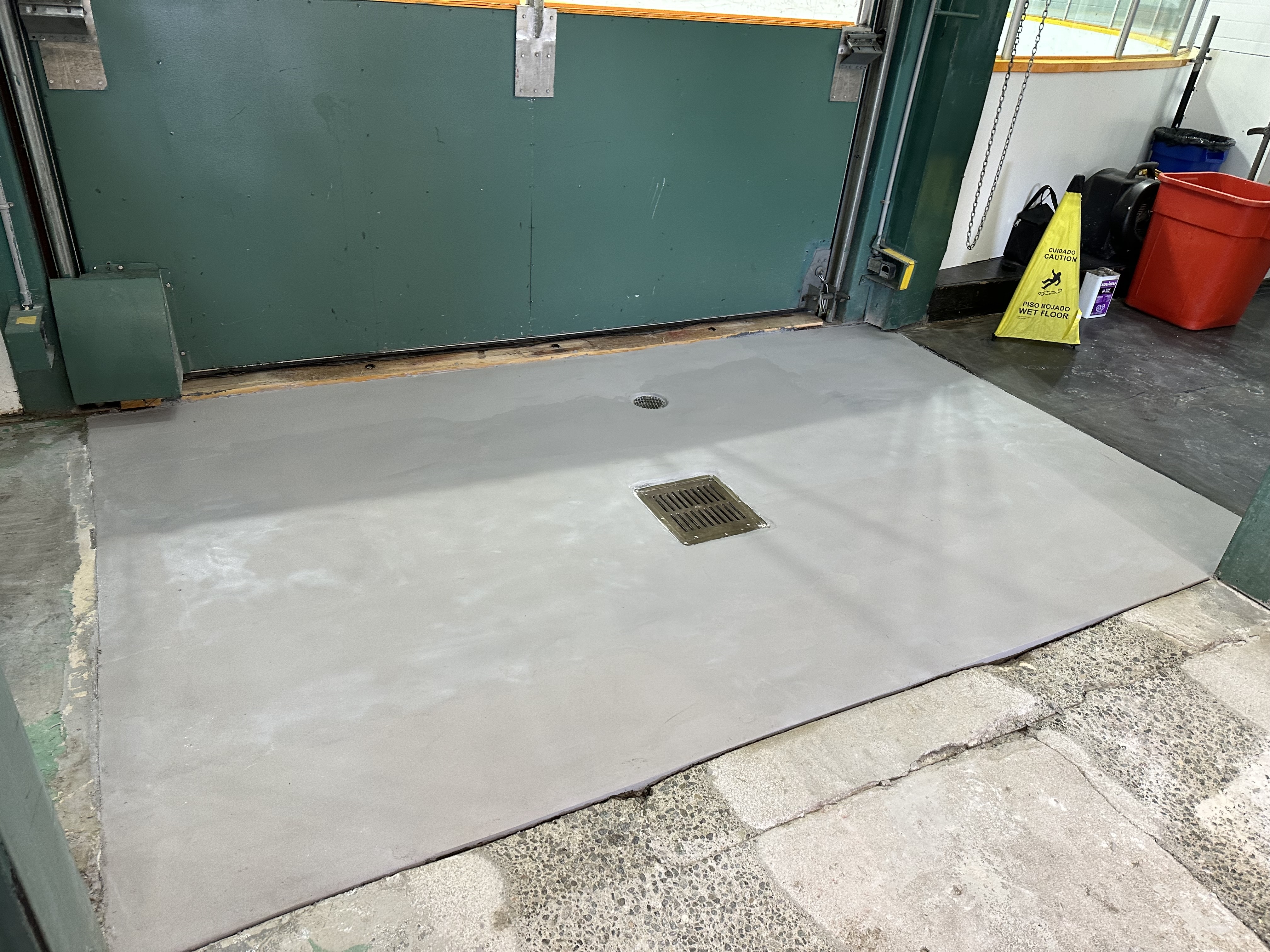

Completed application, 14 buckets of Belzona 4111 Magma Quartz were used to complete the restoration

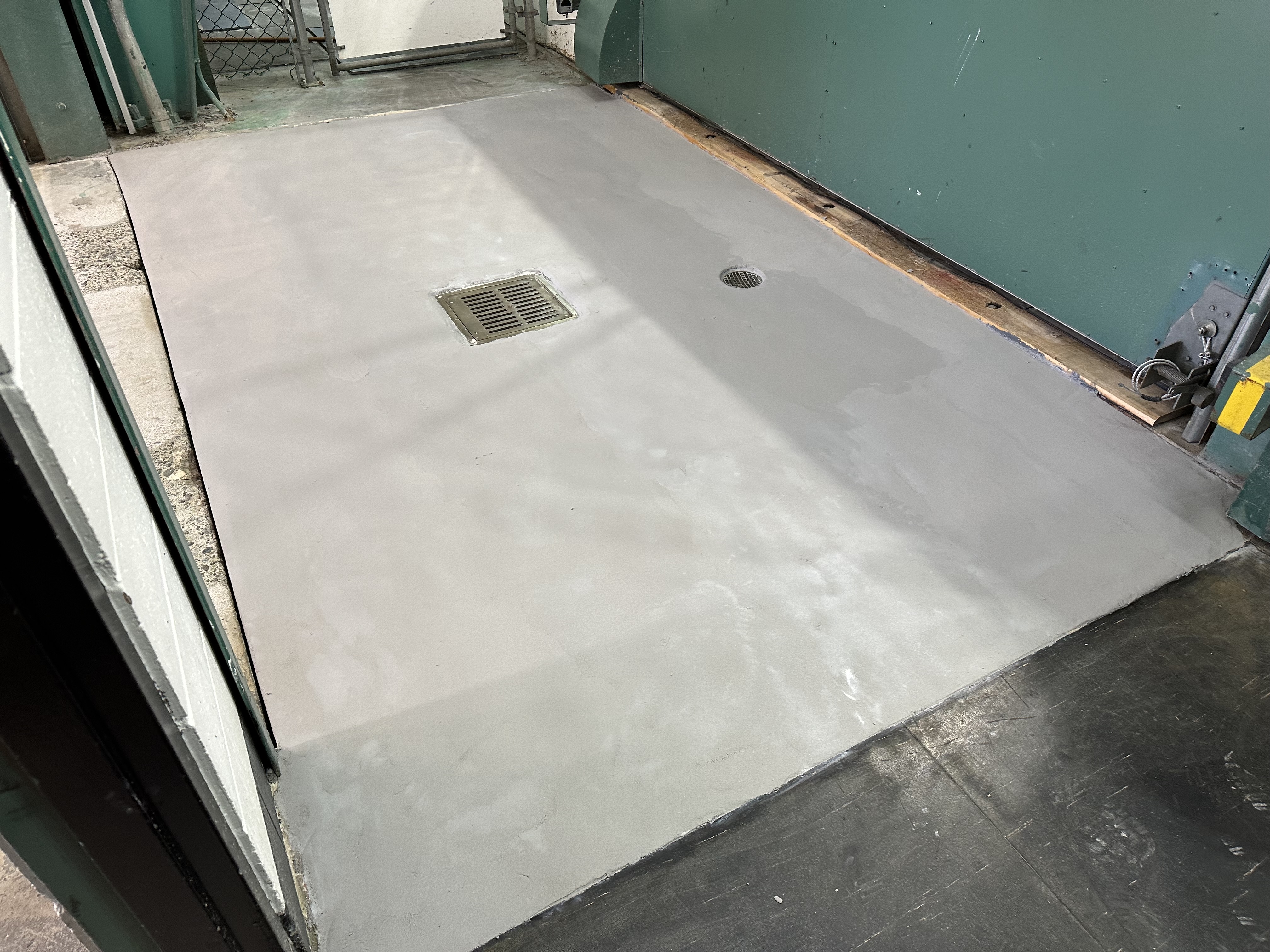

Completed application

Application Situation

The customers alternative was to jackhammer out the current slab, which would of affected the operation of the rink. Our approach allowed to complete the restoration in 5 days total.

Application Method

All areas were prepared using Diamond cup grinders. Belzona 4111 Magma Quartz was applied and adequate slopes were maintained to the drains.

Belzona Facts

The alternative was to jackhammer out the slab and pour new concrete. This would require a 28 day cure cycle which was not an option for the facilities schedule
