Extending Pump Life with Belzona 1321 Ceramic Lining

KHIA ID: 9872
Industry: Water / Wastewater (WATR)
Application: CEP-Centrifugal Pumps (CEP)
Substrate: Cast Iron
Customer Location: Cirencester
Application Date: July 2025
Products: Belzona 1321 (Ceramic S-Metal)
Problem: Customer had commissioned three Single Stage End Suction pumps with removable suction covers. They wished to add protection from sewage water and increase life expectancy of the new pumps.

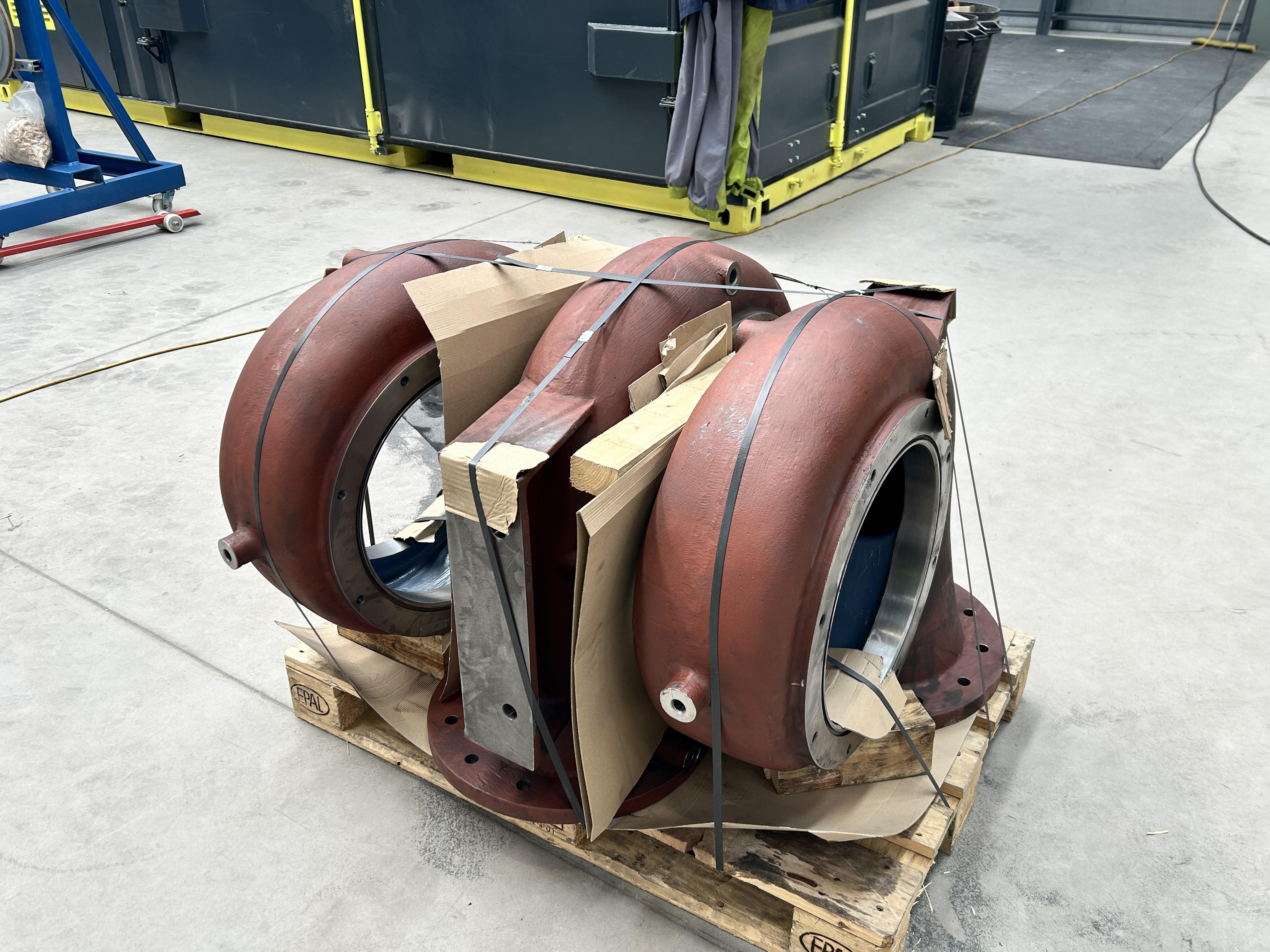

three pumps tied together on a pallet inside a warehouse

End suction pumps delivered to our state-of-the-art facility

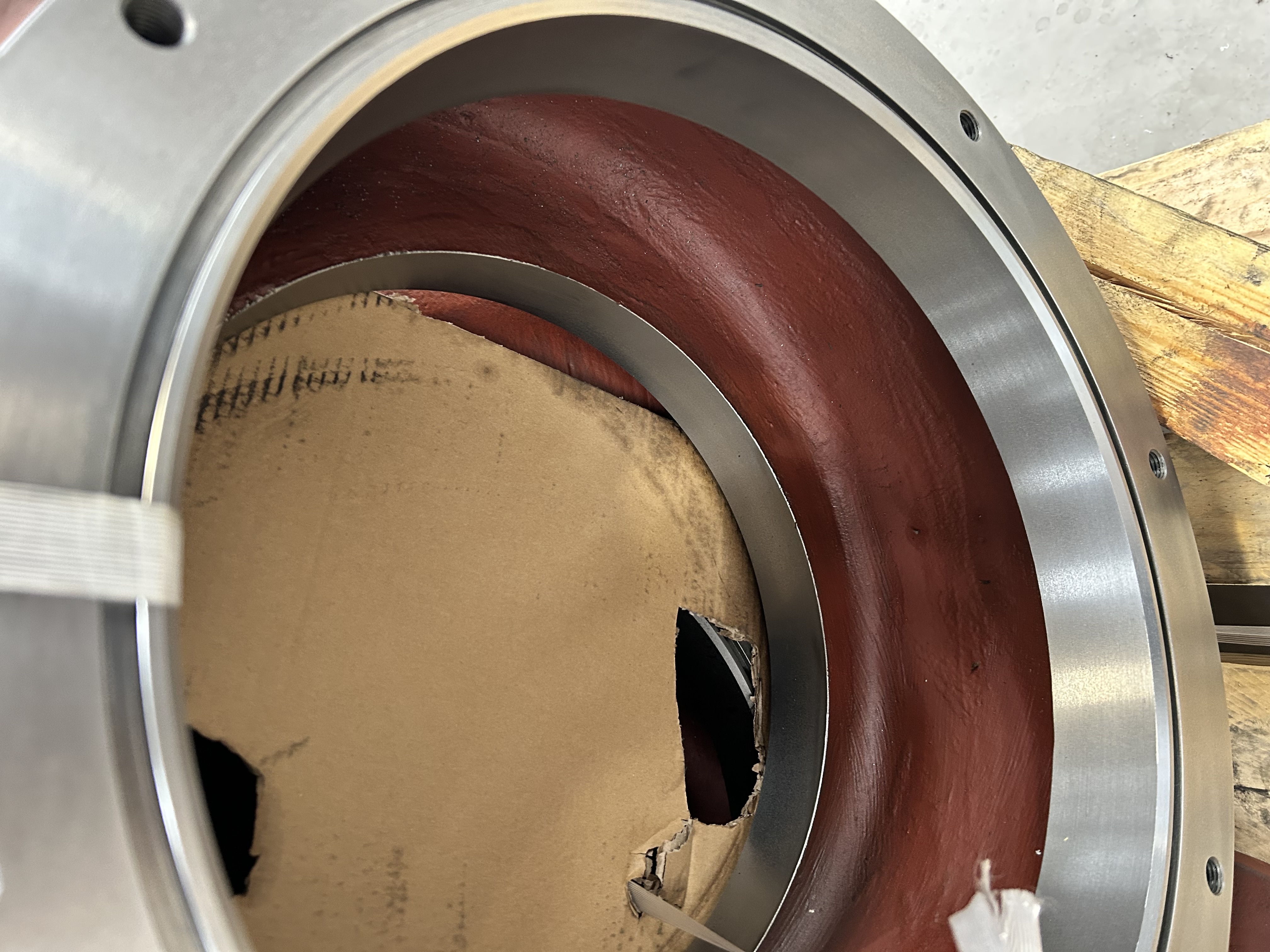

Inside the end suction pump, showing a lack of coating

The pumps are grit blasted to a minimum surface profile

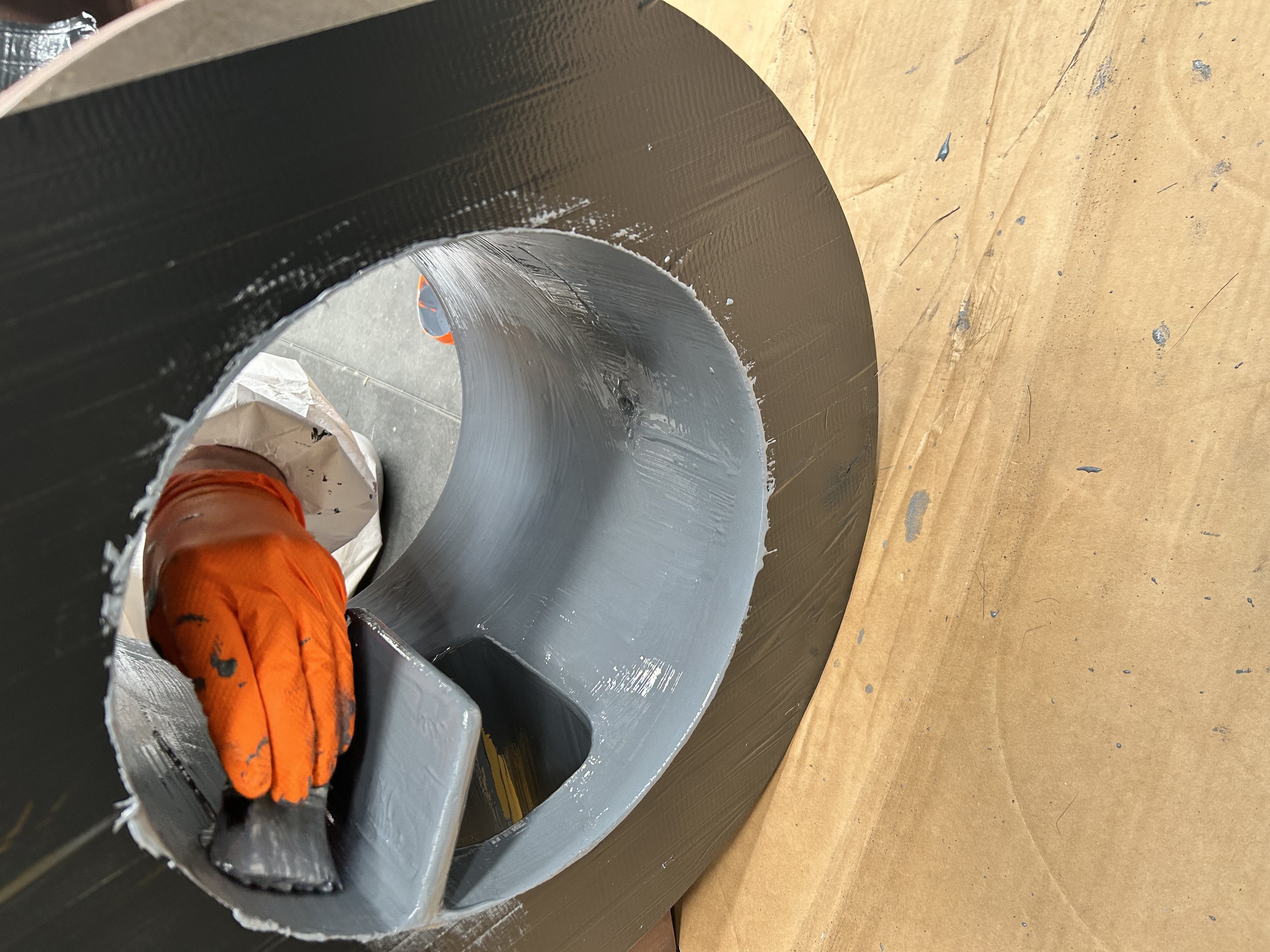

An engineer with a paintbrush is applying the solution

Two coats of Belzona 1321 are applied to end suction pumps

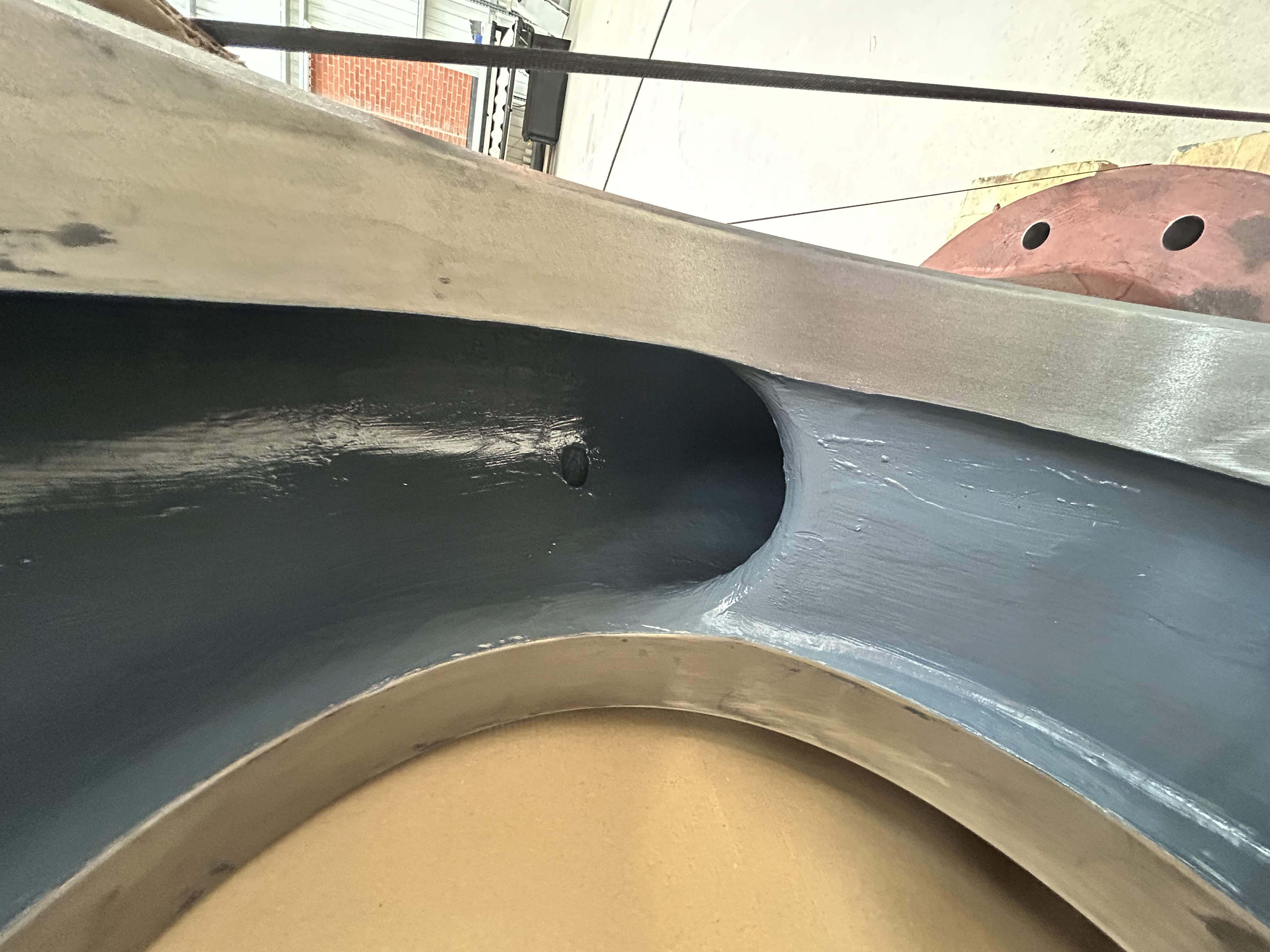

An image inside the pump with the Belzona coating

Solution is completed and pumps were sent to customer, ready to be installed with added protection.

Application Situation
The customers wished to increase protection and extend life expectancy of assets
Application Method
Surface preparation was carried out by grit blasting all areas in our state-of-the-art blast booth.

The steel substrate was prepared to achieve a minimum surface profile of 75 µm and a surface cleanliness standard of SA 2½.

Following this, our technicians applied a two-coat protective system of Belzona 1321, with each coat applied to a target thickness of 375 µm. Once all works were completed, the coated components underwent a final inspection
Belzona Facts
Belzona 1321 (Ceramic S-Metal) solution increases assets life expectancy by protecting against erosion-corrosion.
