Main Condenser Expansion Joint Saved

KHIA ID: 10115

Industry: Power (POWR)
Application: WPA-Wall Problem Areas (WPA)
Substrate: Carbon steel

Customer Location: Underwood,North Dakota
Application Date: March 2024

Products: Belzona 2111 (D & A Hi-Build Elastomer),Belzona 2911 (Elastomer QD Conditioner)

Problem: The expansion joint was 75 % gone and needed to be replaced.

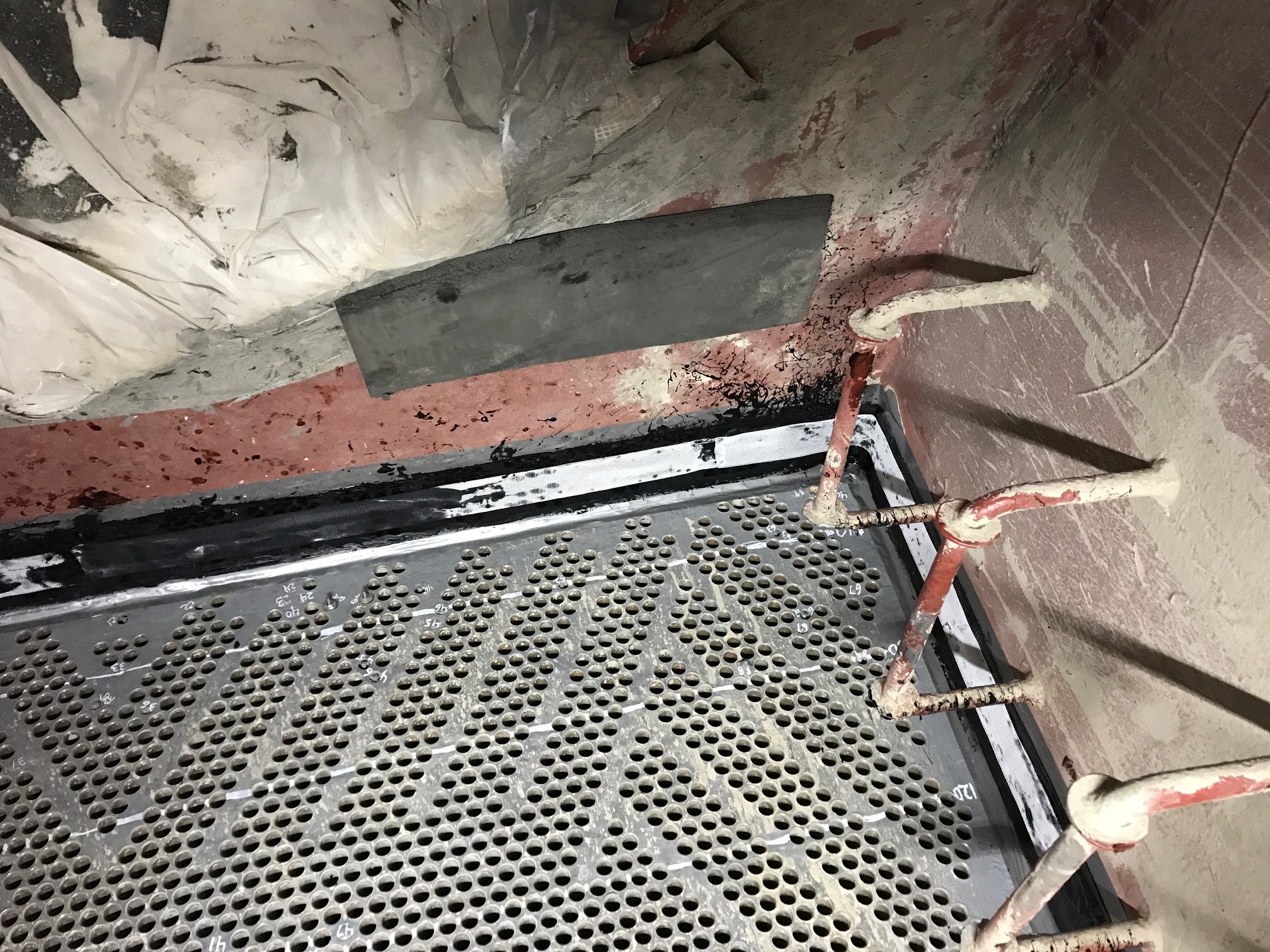

Closeup of Belzona 2111 elastomer expansion joint in main condenser

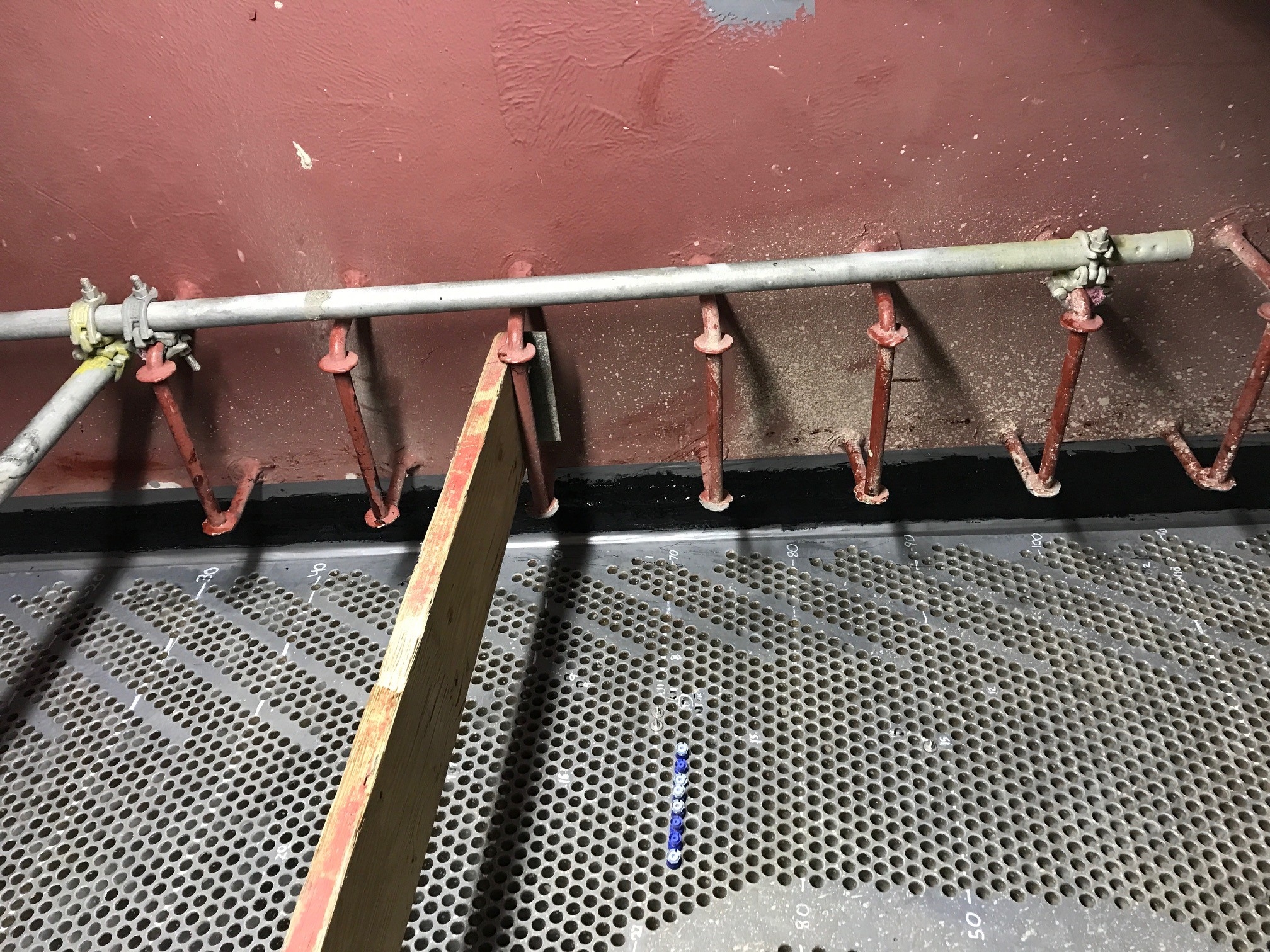

Belzona 2111 application reinforced with reinforcement mesh replacing expansion joint

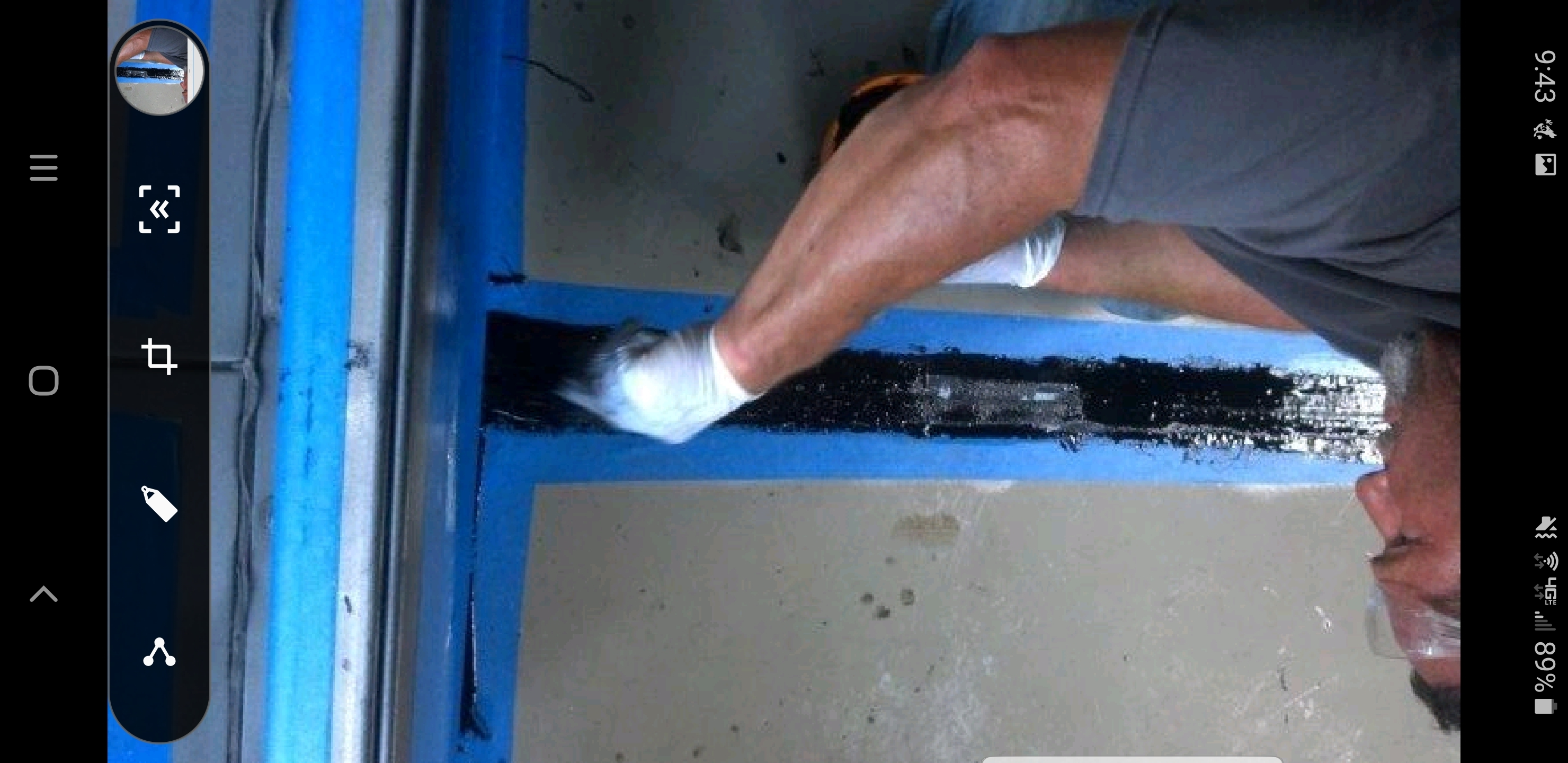

Close-up of final expansion joint using Belzona 2111 elastomer

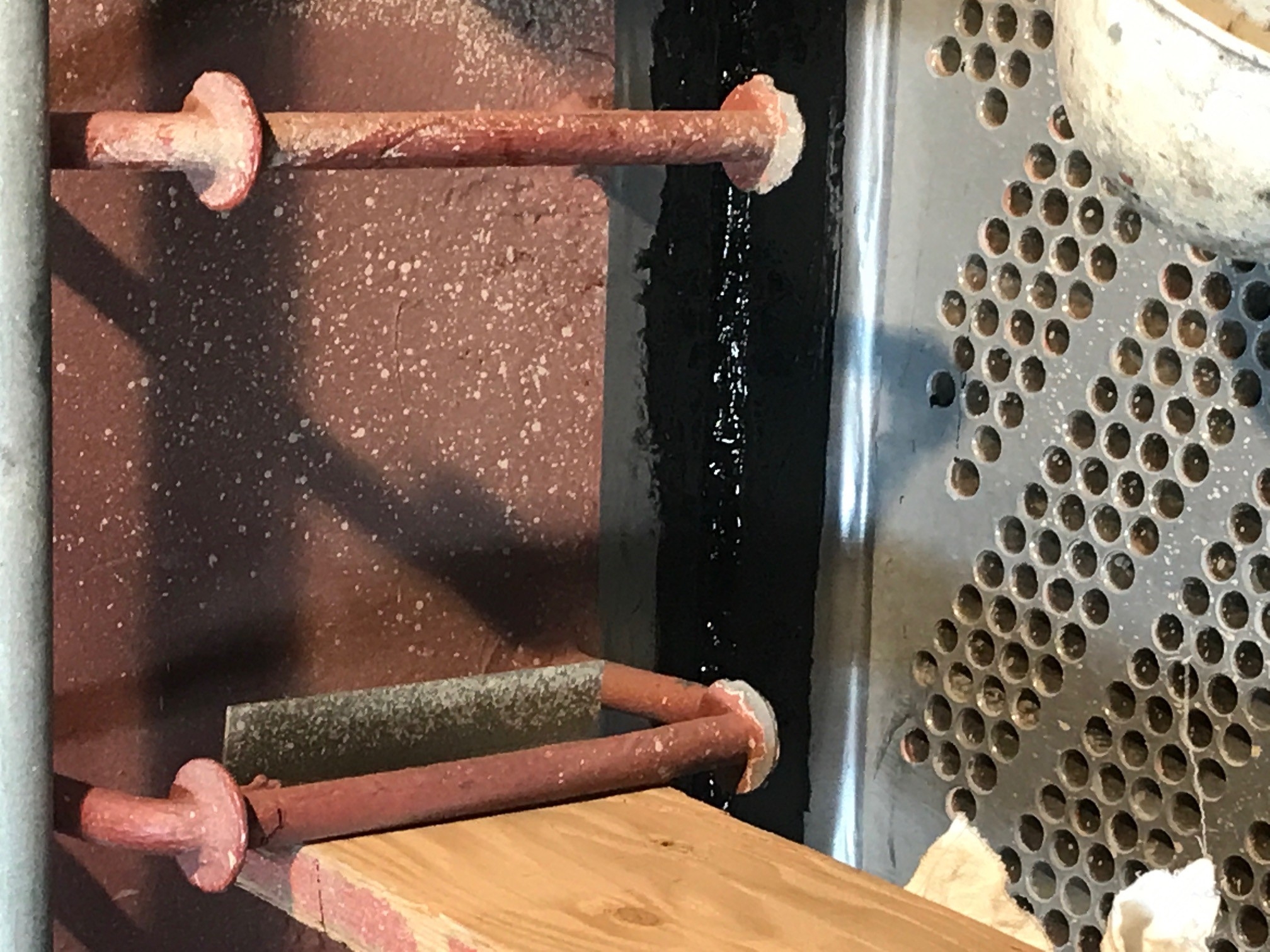

Belzona 2111 completed application

Application Situation

The Belzona was chosen because of all the work done in this condenser 20 years ago

Application Method

The joint area was blasted and cleaned, Belzona 2911 was applied on entire surface area, and the Belzona 2111 reinforced
system application was carried out during outage.

Belzona Facts

Belzona has been a proven product for client for several years and great communication throughout all outages.
