Repairs to concrete fuel store floor

KHIA ID: 9949

Industry: Buildings & Structures (BSTR)
Application: FPA-Floor Problem Areas (FPA)
Substrate: Concrete

Customer Location: Burton upon Trent
Application Date: August 2019

Products: Belzona 4111 (Magma-Quartz),Belzona 4151 (Magma-Quartz Resin),Belzona 4911 (Magma TX Conditioner)

Problem: Repeat impact from the dropping of Oxygen cylinders, along with heavy lorry wear and tear had broken up large areas of the fuel store at a large distribution center

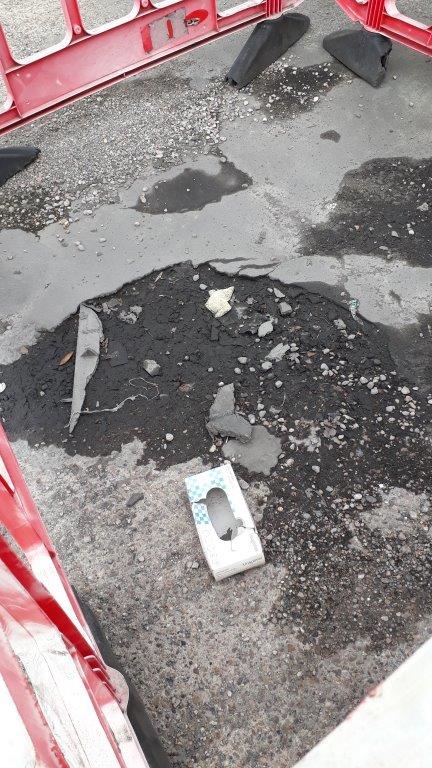

Broken floor with large holes and cracks due to impact

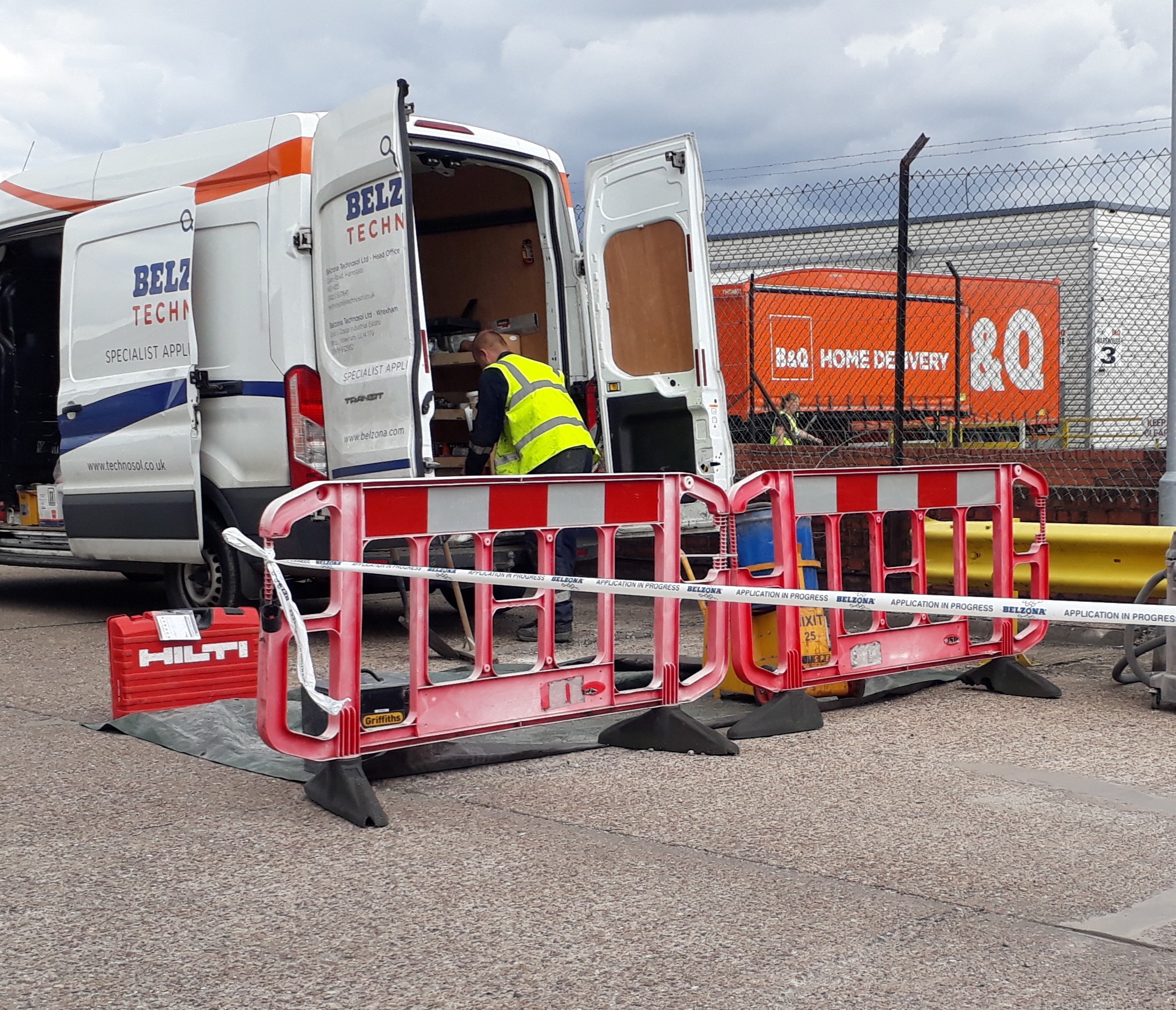

Works taking place to repair the damage

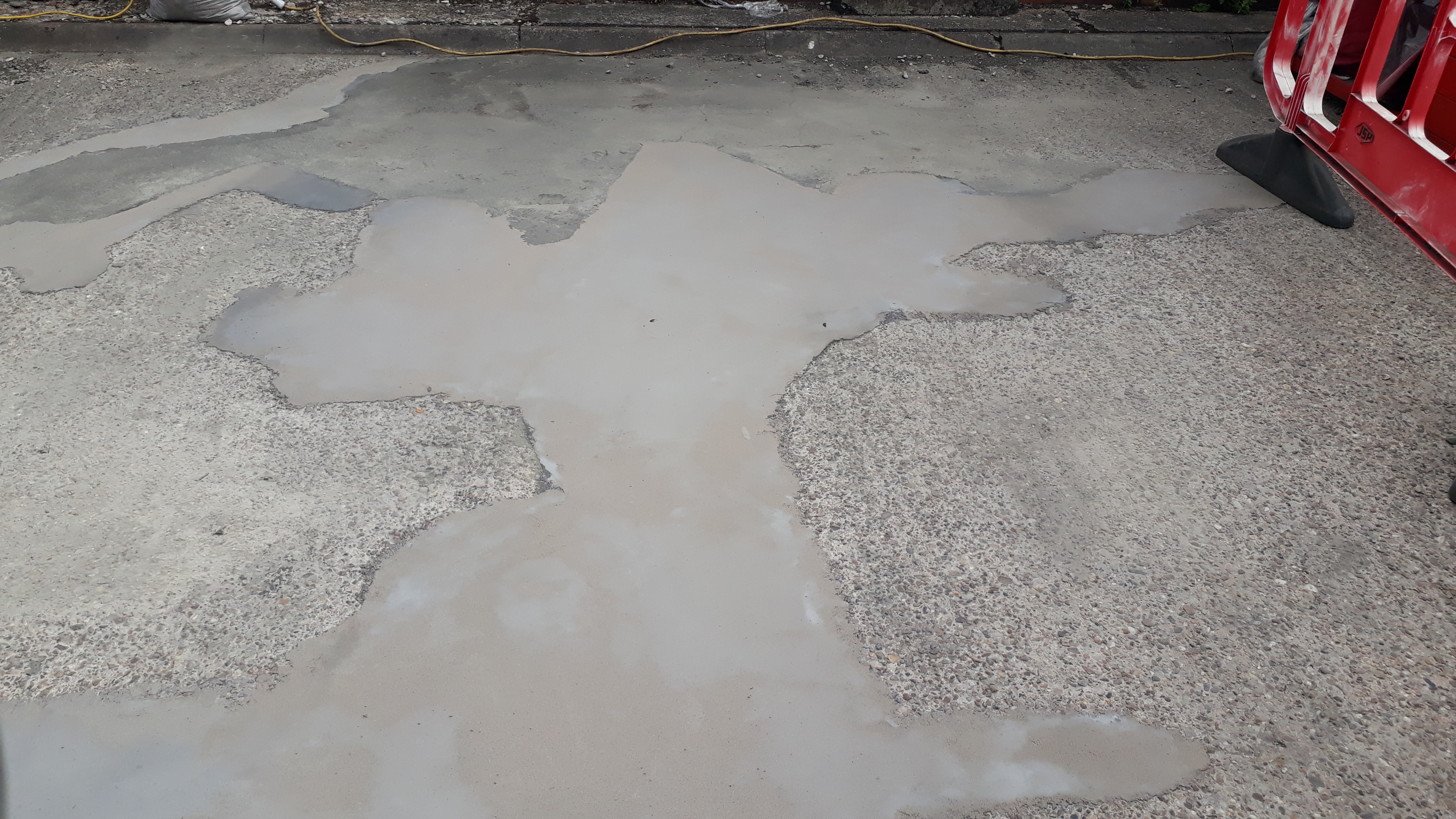

Works completed

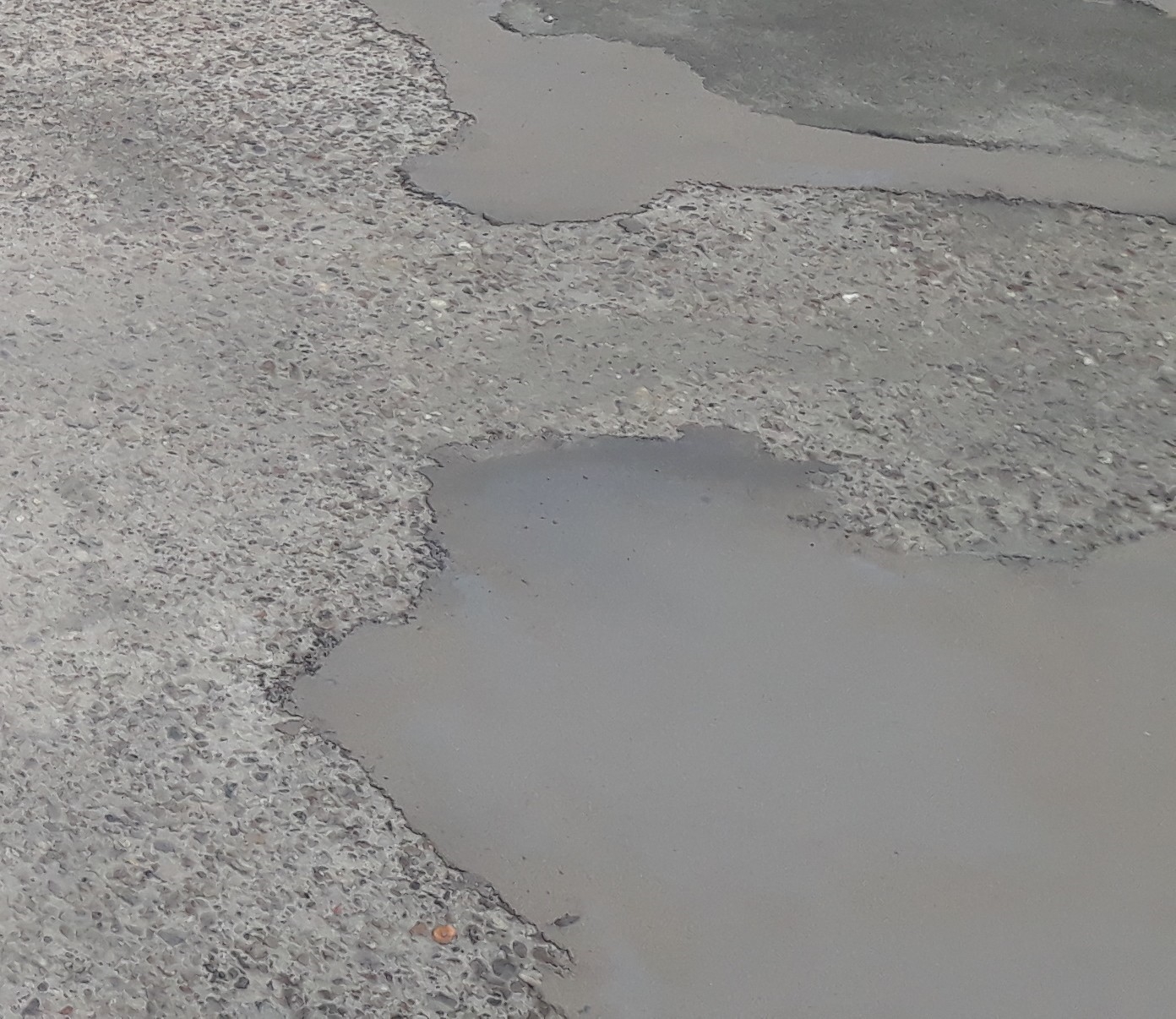

6 years on

Application Situation

The Belzona application was carried out in one day and was returned to service the following day after that, giving a turnaround of just 2 days. The alternative would have taken much longer and also necessitated the saw-cutting and breaking out to cast new concrete, which would then have had to be left for a number of weeks to fully set

Application Method

Break out loose and friable materials and vacuum
Apply Belzona 4911 to all target areas
Mix and apply 4151 resins and 4111 aggregates
Trowel off to compress and leave to cure

Belzona Facts

The most important aspect with this project was the available time to effect a repair. Belzona products proved invaluable to the ongoing operations of the distribution warehouse.
6 years on, the repairs are still performing as intended
