Repairs to corroded internal sealing faces at a paper mill

KHIA ID: 10004
Industry: Pulp & Paper (PLPR)
Application: CEP-Centrifugal Pumps (CEP)
Substrate: Cast Iron
Customer Location: Northumberland
Application Date: September 2025
Products: Belzona 1161 (Super UW-Metal),Belzona 1311 (Ceramic R-Metal)
Problem: The customer had severely corroded sealing faces. Due to difficult with access, grit blasting was not an option and there was only a very short window of time to carry out any repairs. Customer required a long lasting permanent solution to the issue.

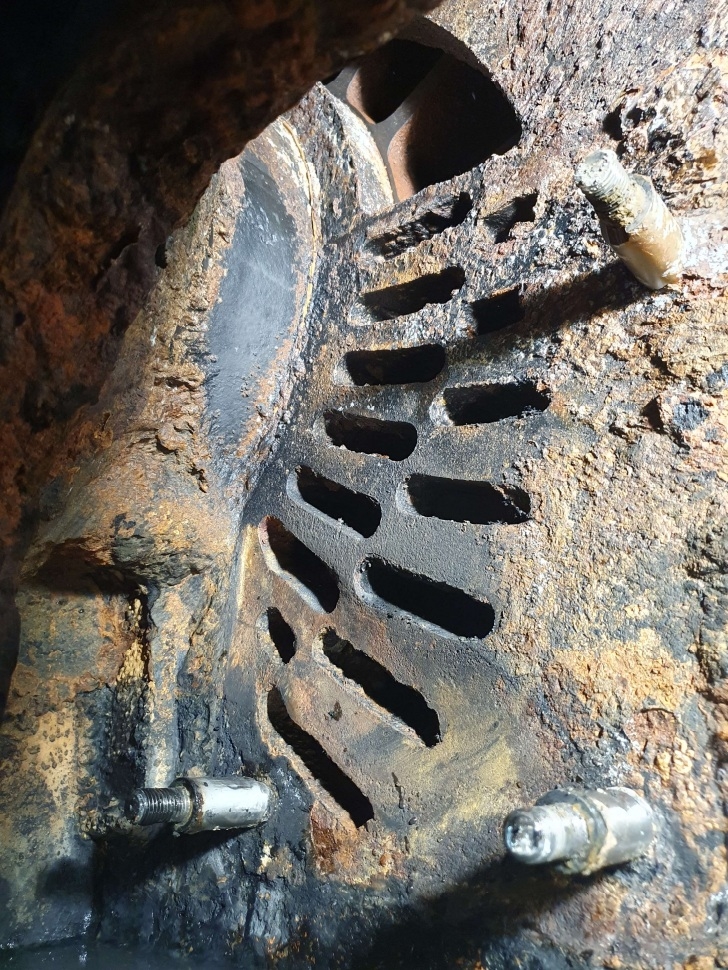

A corroded section of a pump

Heavily corroded sealing face.

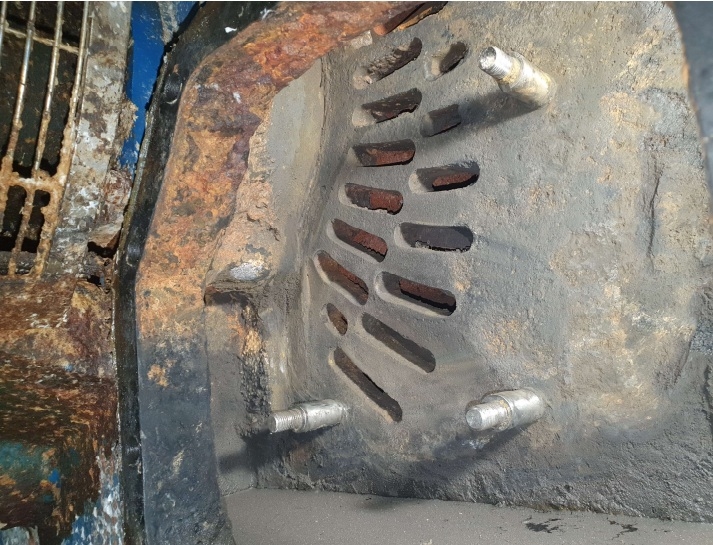

The corroded surface has been ground back to the metal

Surface preparation carried out and area degreased

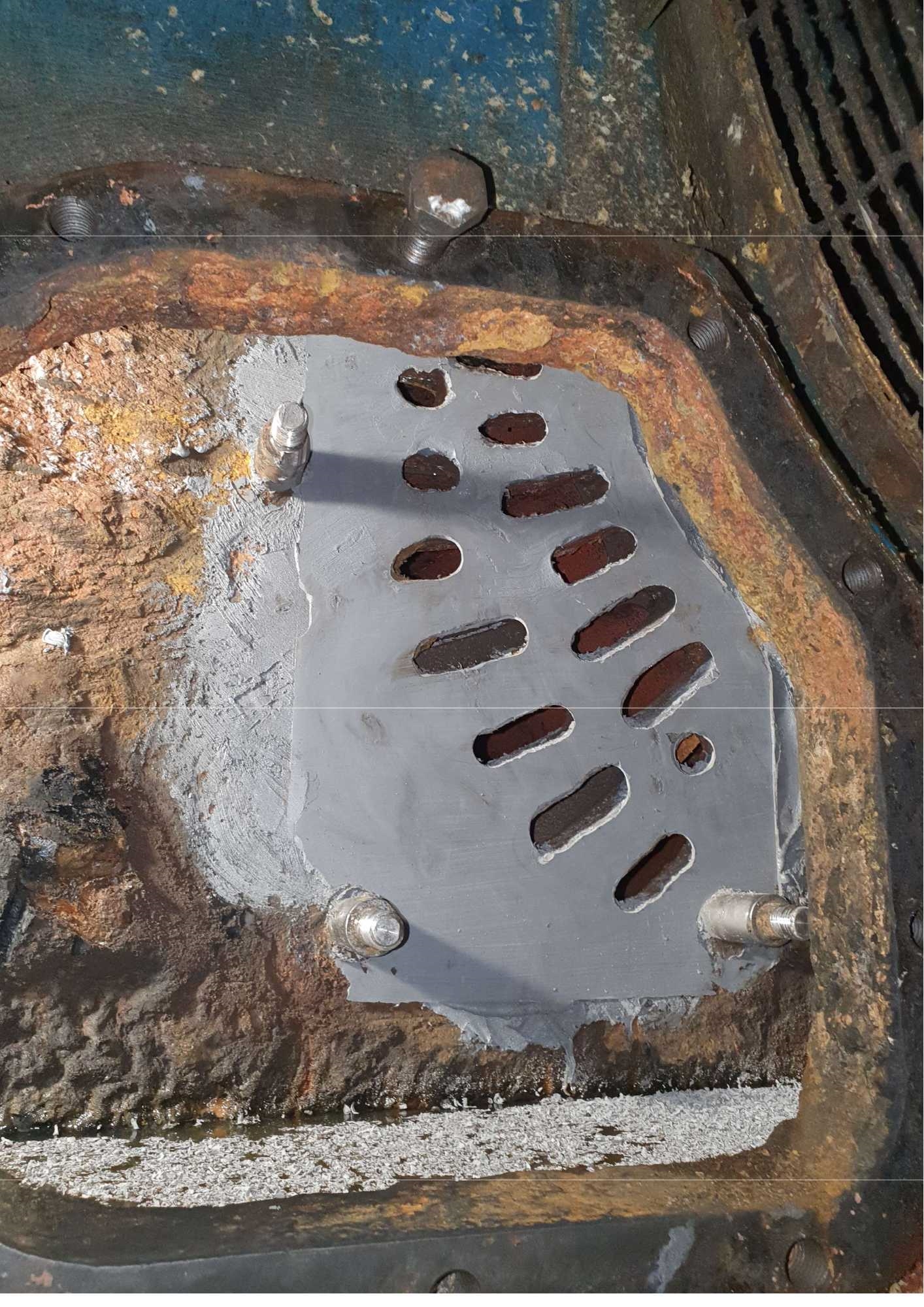

A plate has been bonded over the former corroded areas to keep the product in place

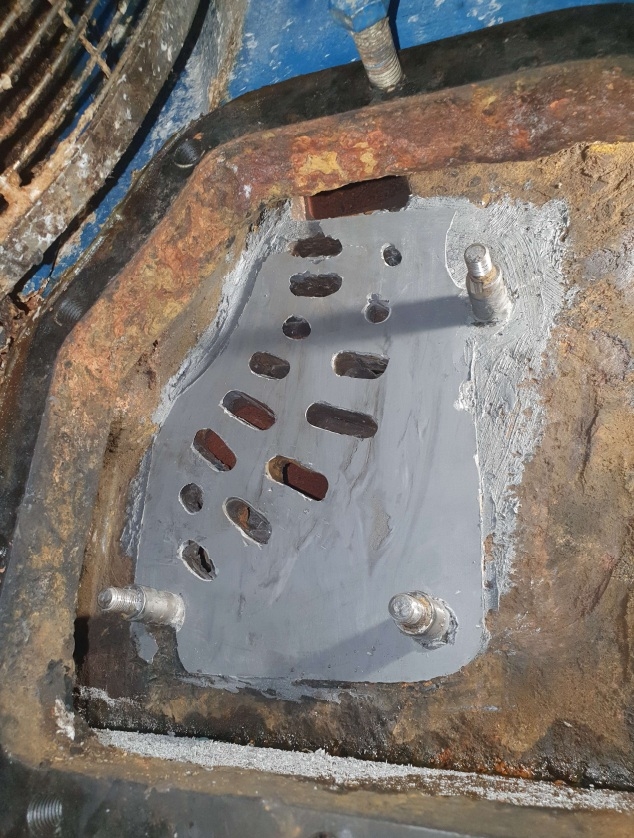

Former plate applied to defective area and Belzona 1311 allowed to cure

The corroded areas are now smooth and re-formed.

Sealing face formed at drive and non-drive end.

Application Situation
Due to difficult with access, shot blasting was not an option and there was only a very short window of time to carry out any repairs. Customer required a long lasting permanent solution to the issue.
Application Method
The area’s were degreased and then wetted out using Belzona 1161 Super UW-Metal (Surface tolerant product) and allowed to cure.

The surface was then lightly abraded and then wetted out with Belzona 1311 Ceramic R-Metal.

Belzona 1311 was then applied to the former plates which had been coated with Belzona 9411 Release Agent, and then put up against the worn faces and allowed to cure.
Belzona Facts
The customer received a long term solution in a difficult to access area. This solution was performed within tight deadlines, saving the customer on the cost of an extended shutdown period.
