ACC fan blade required a leading edge protection system

KHIA ID: 9867
Industry: Other (OTHER)
Application: FBC-Fans, Blowers and Compressors (FBC)
Substrate: GFRP
Customer Location: Aylesbury
Application Date: May 2025
Products: Belzona 5711,Belzona 5721
Problem: Customer at an energy from waste plant had air cooled condenser (ACC) fan blades that were suffering from wear and tear due to abrasion.

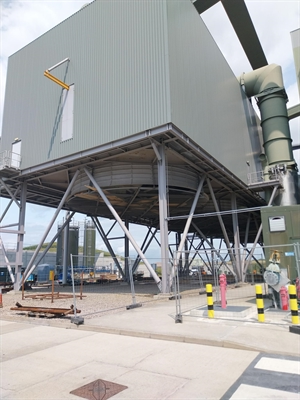

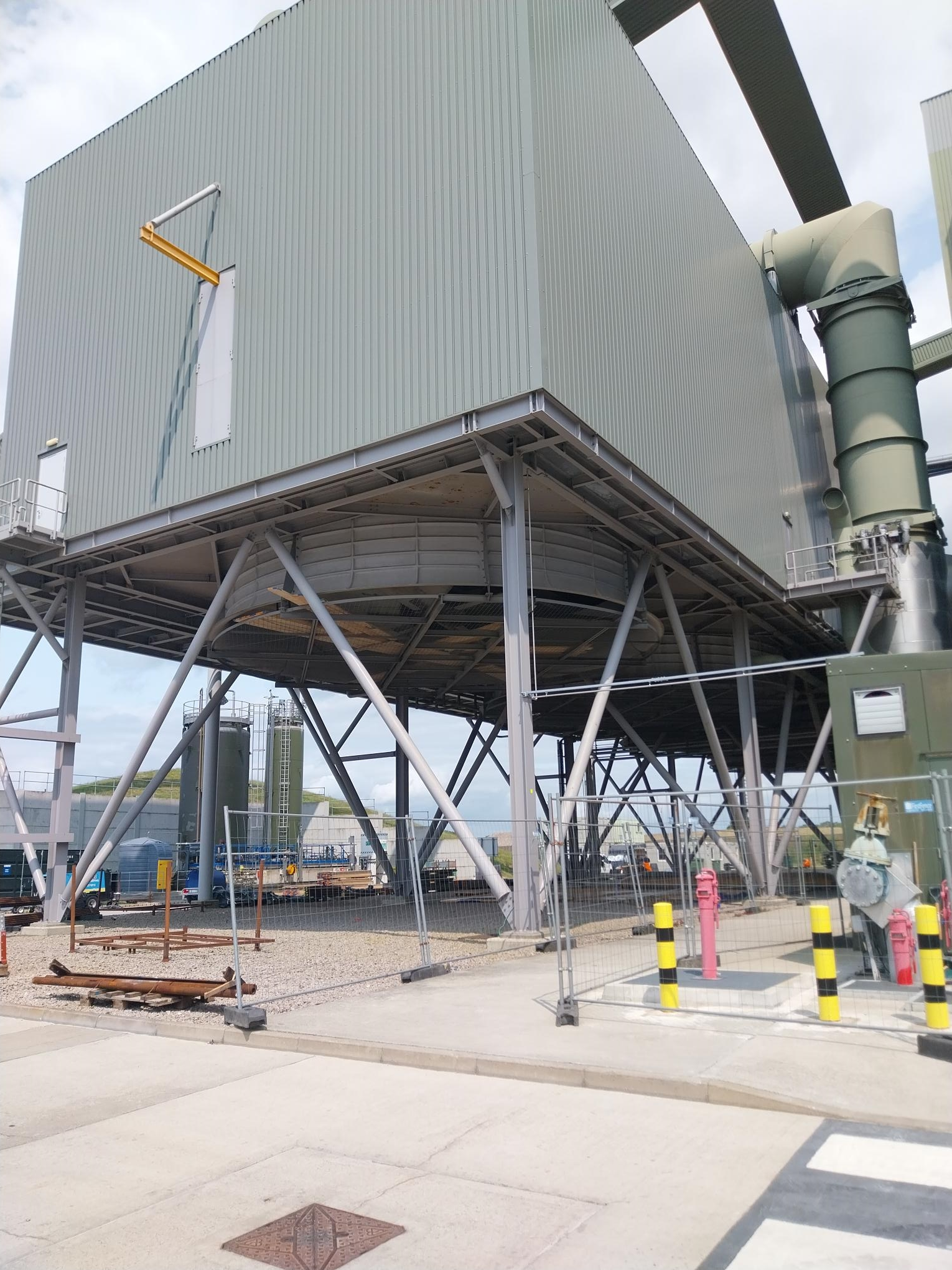

A large corroggated metal container standing off the ground

Six 5m length blades were exposed to abrasion and wear and tear

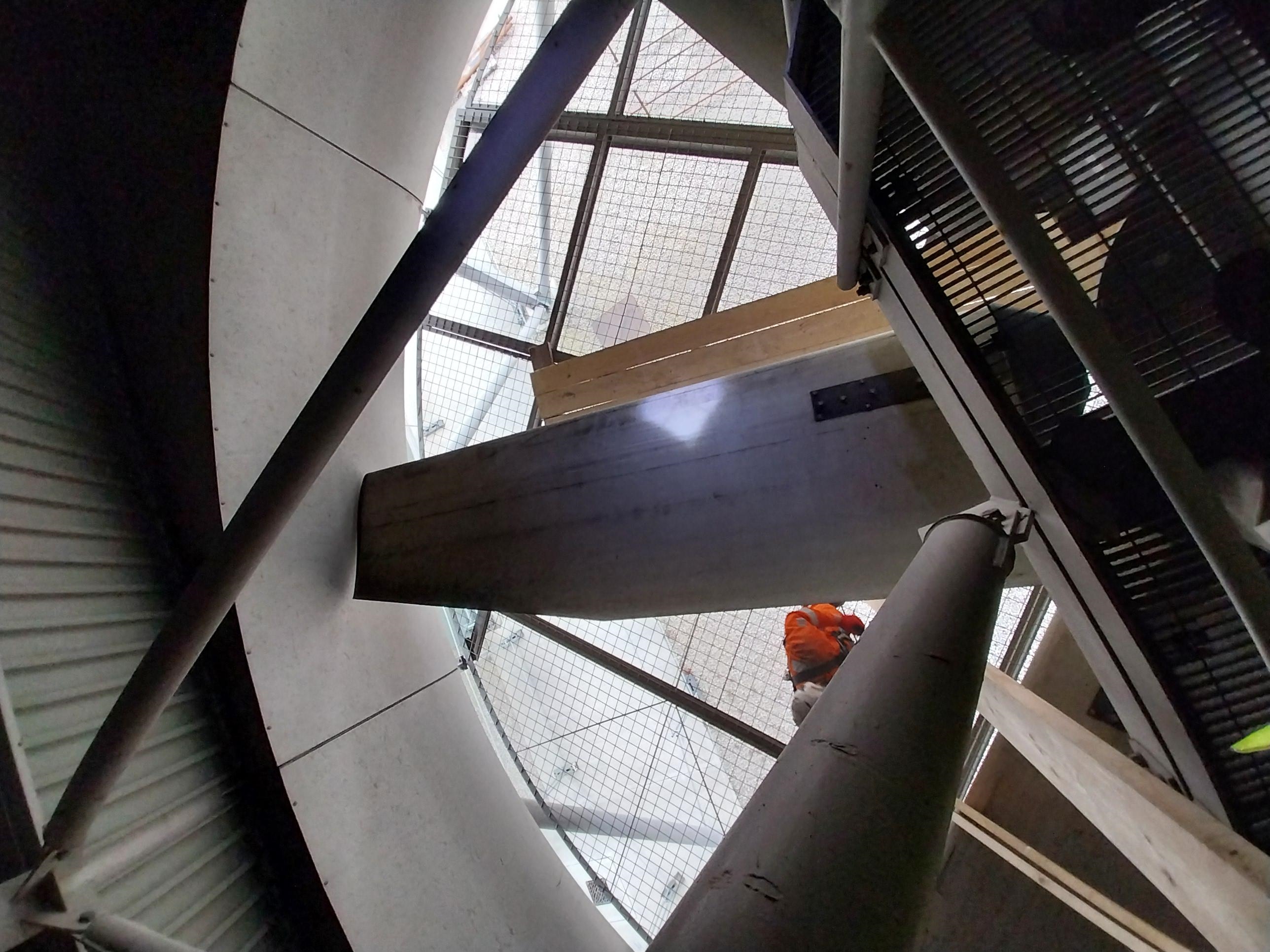

internal view of fan blades from inside the fan housing

The application could be completed without dismantling the blades from the motor​

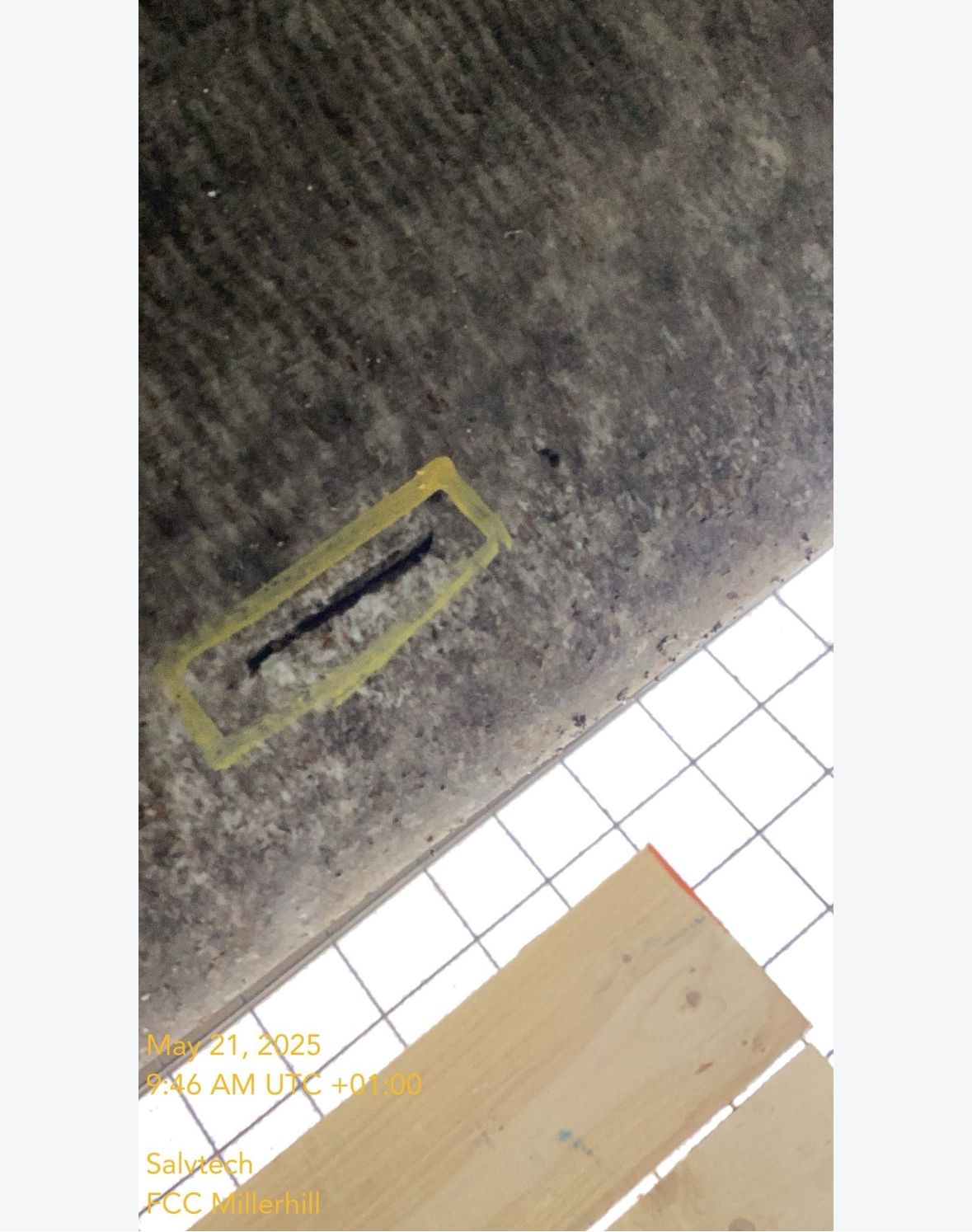

A close up of abrasion damage on ACC fan

Belzona 5711 and Belzona 5721 was chosen to protect the edges of the blades and provide them with an extended life​

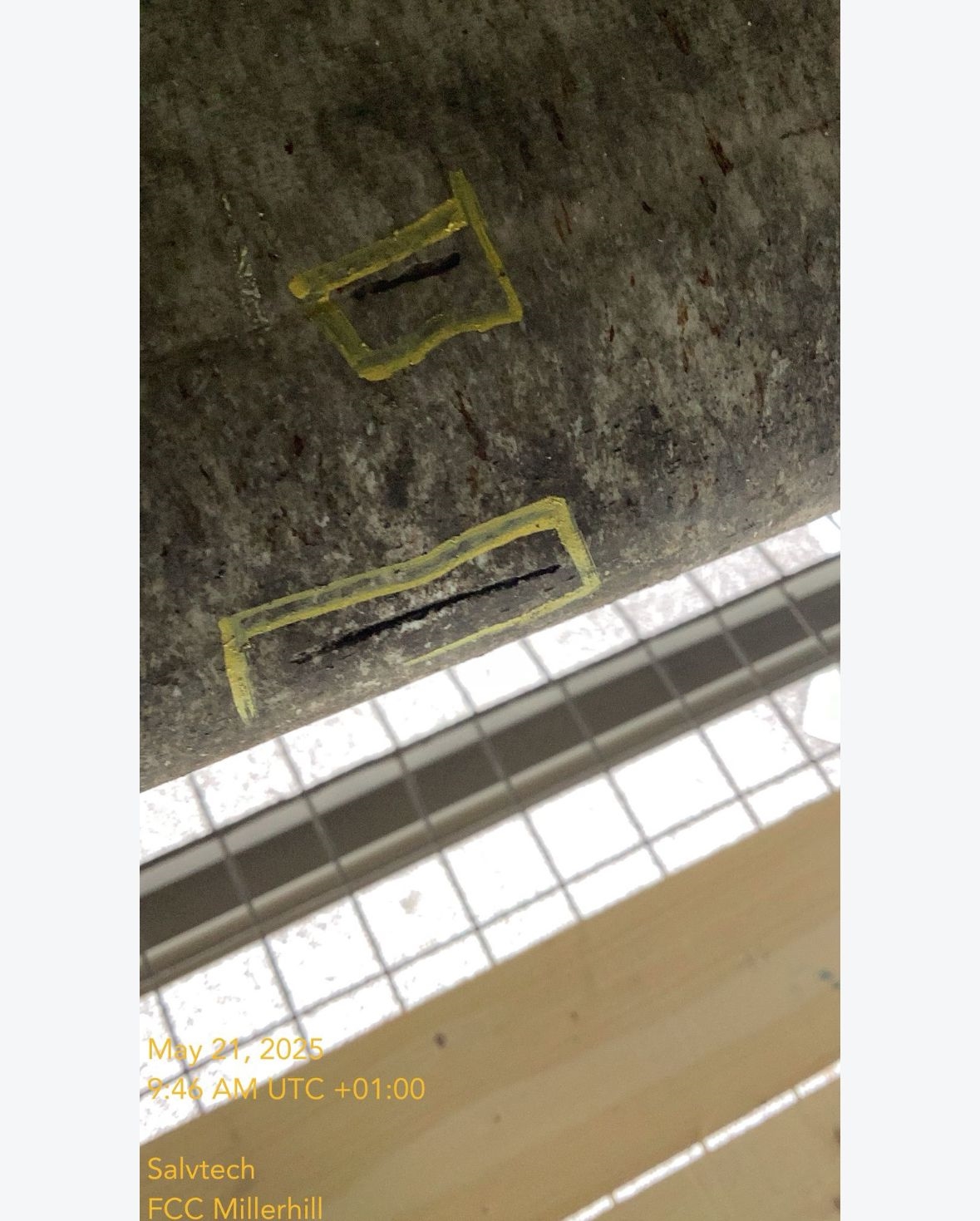

A close up of abrasion damage of ACC fan

Quick curing time, ensured that the ACC fan could be back in operation quickly​

Application Situation
Customer was not able to remove fan blades without causing lengthy downtime and expensive moving costs. A leading edge protection solution was required to repair fan blades in situ.
Application Method
The surface area was prepared to a minimum surface profile. Belzona 5711 and Belzona 5721 was selected to protect the edges of the fan blades and applied with a Cox ElectraFlow Dual Ultra 400 MR dispenser.
Belzona Facts
The Leading Edge Protection system, comprising of Belzona 5711 and Belzona 5721 offers a long term repair and protection solution for turbine blades. With the easy to use system, the clients were able to apply without the need for contractors.
