Belzona protect Spent Caustic Reactor

KHIA ID: 9631

Industry: Chemical & Petrochemical (PETR)
Application: TCC-Tanks and Chemical Containment Areas (TCC)
Substrate: Carbon steel

Customer Location: Dammam, Saudi Arabia
Application Date: June 2024

Products: Belzona 1511 (Super HT-Metal),Belzona 1593

Problem: The customer relied on the reactor to treat spent caustic, but the old lining system had failed, causing frequent shutdowns that resulted in losses of $20,000 per day. To address this issue, we recommended Belzona 1593 as a durable and effective solution.

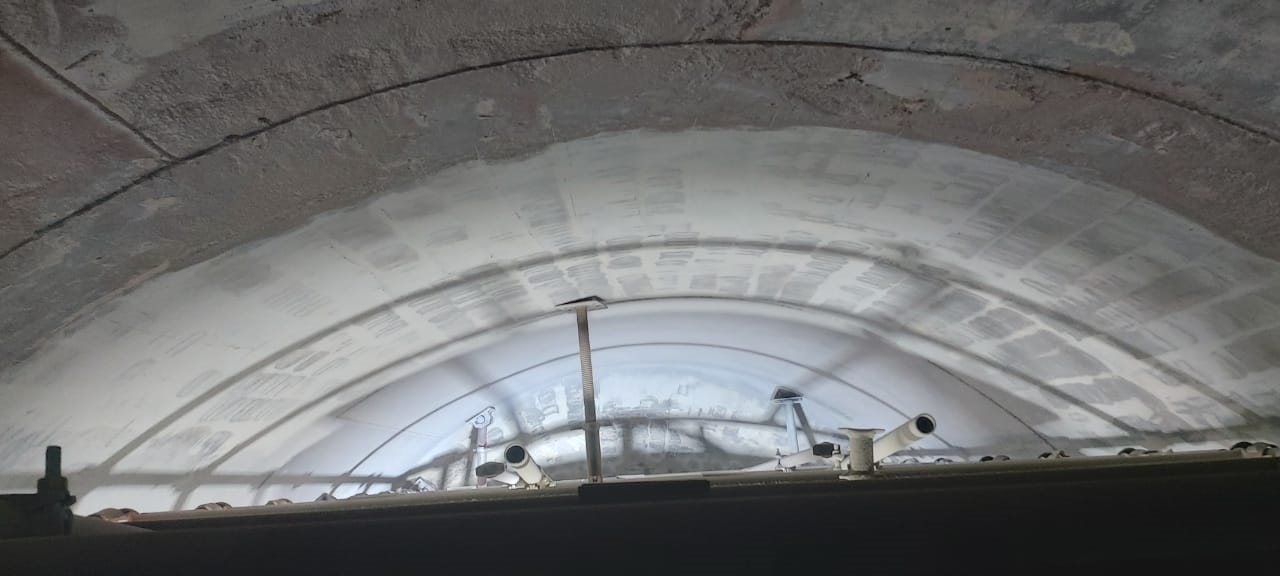

Internal reactor body before coating

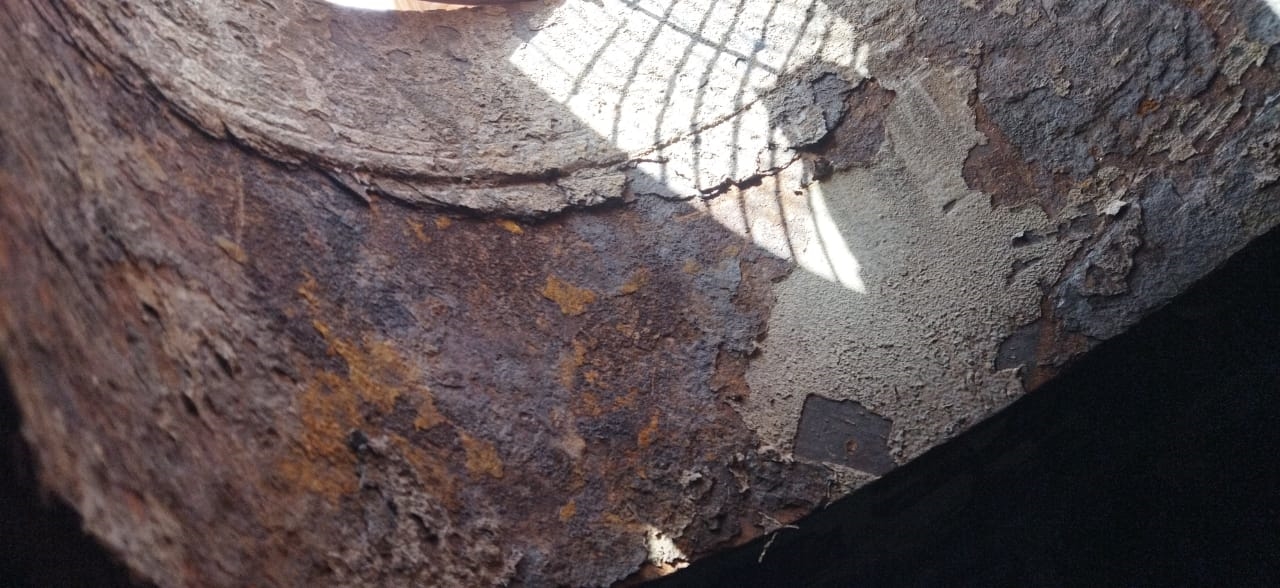

Close-up of the reactor manhole showing damage and corrosion of spent caustic over metal.

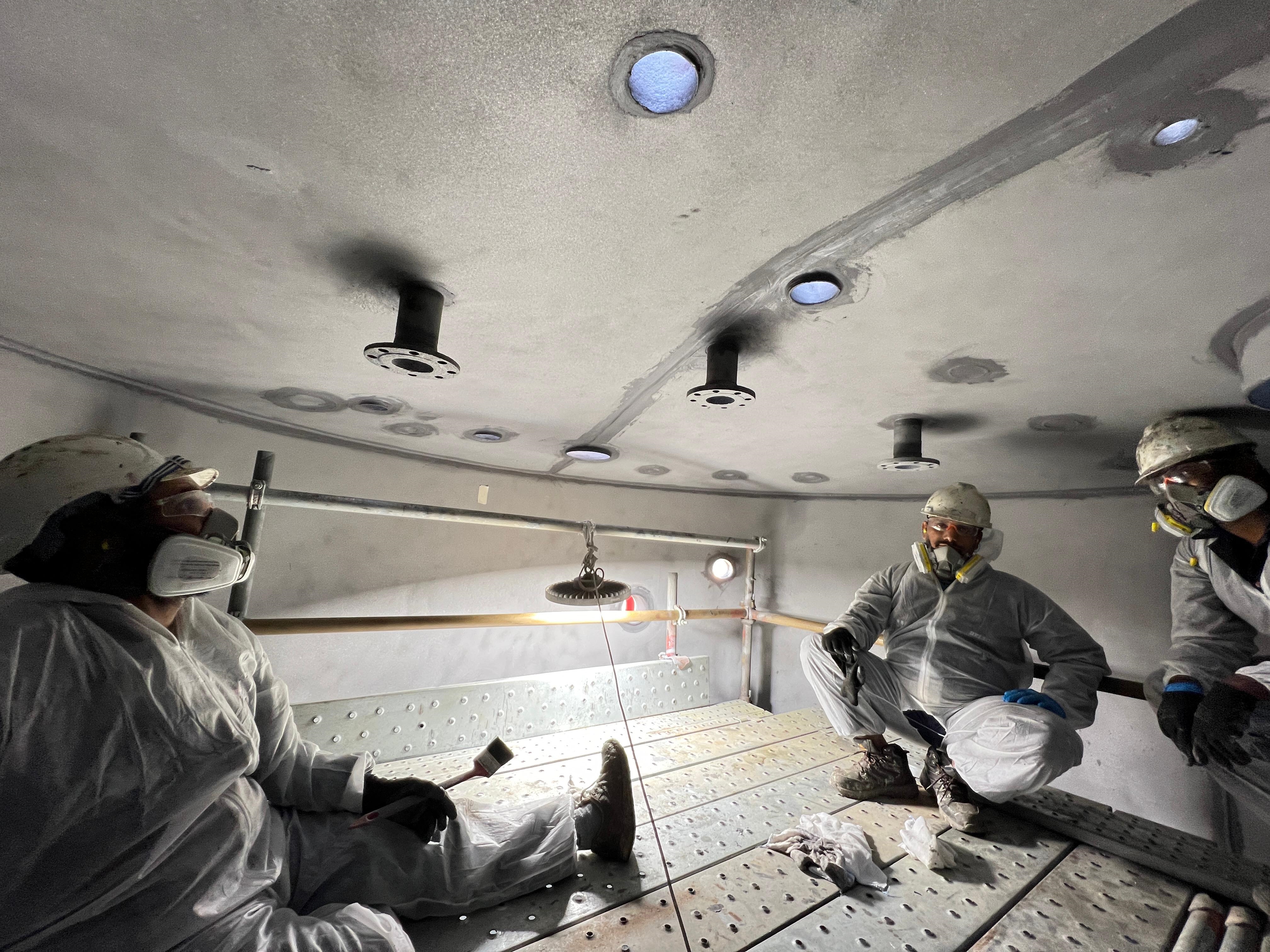

Belzona 1511 is applied

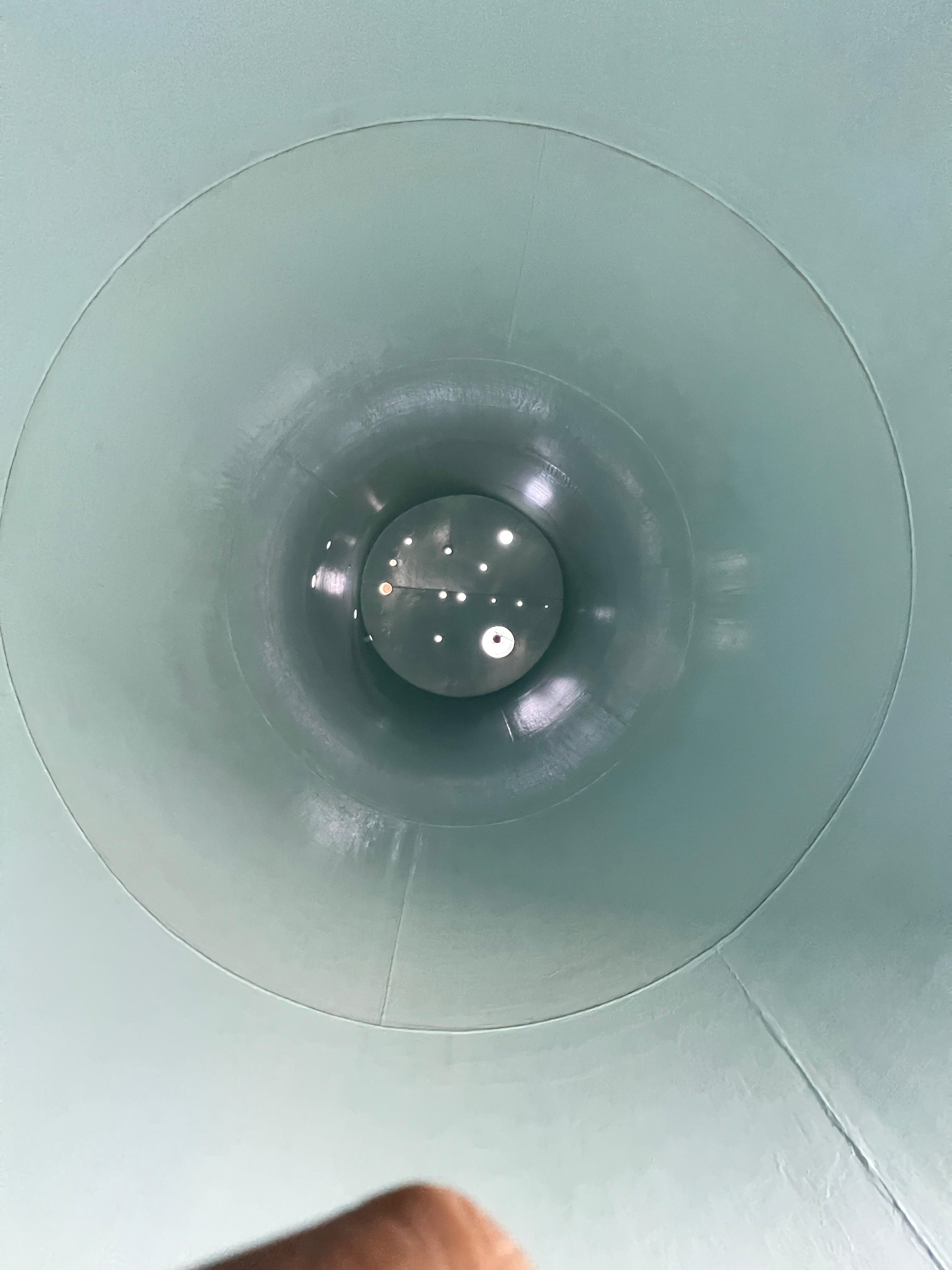

Final phase with Belzona 1593

Application Situation

The high cost of shutdowns due to the failure of previous coatings led the customer to seek a long-lasting solution. We conducted a thorough analysis of the old coating, including a root cause investigation, and proposed Belzona coating as the ideal long-term solution.

Application Method

The old coating was removed, and the surface was prepared through blasting to achieve a minimum profile of 75 µm and a near-white metal finish. Belzona 1511 was applied to smooth out welding joints, while Belzona 1593 was used to coat and protect the entire reactor.

Belzona Facts

Belzona has a dedicated global support team, allowing tank media to be analyzed by our R&D experts to ensure the optimal coating selection. In contrast, previous coatings from other brands were failing every three months. With Belzona, customers benefit from long-term protection, saving thousands of dollars in maintenance and downtime costs.
