Floating roof repair.

KHIA ID: 9896

Industry: Oil & Gas (OILG)
Application: TCC-Tanks and Chemical Containment Areas (TCC)
Substrate: Carbon steel

Customer Location: Oklahoma city
Application Date: June 2025

Products: Belzona 1212 Leak Sealing Kit,Belzona 9611 (ES-Metal)

Problem: The floating roof developed a couple of corrosion holes on the plates.

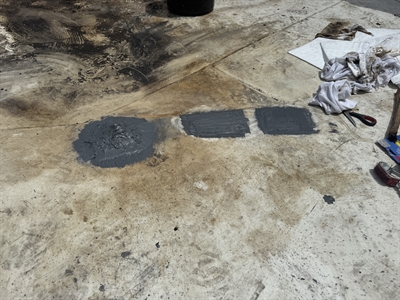

Belzona 1212 Tank patches view 1.

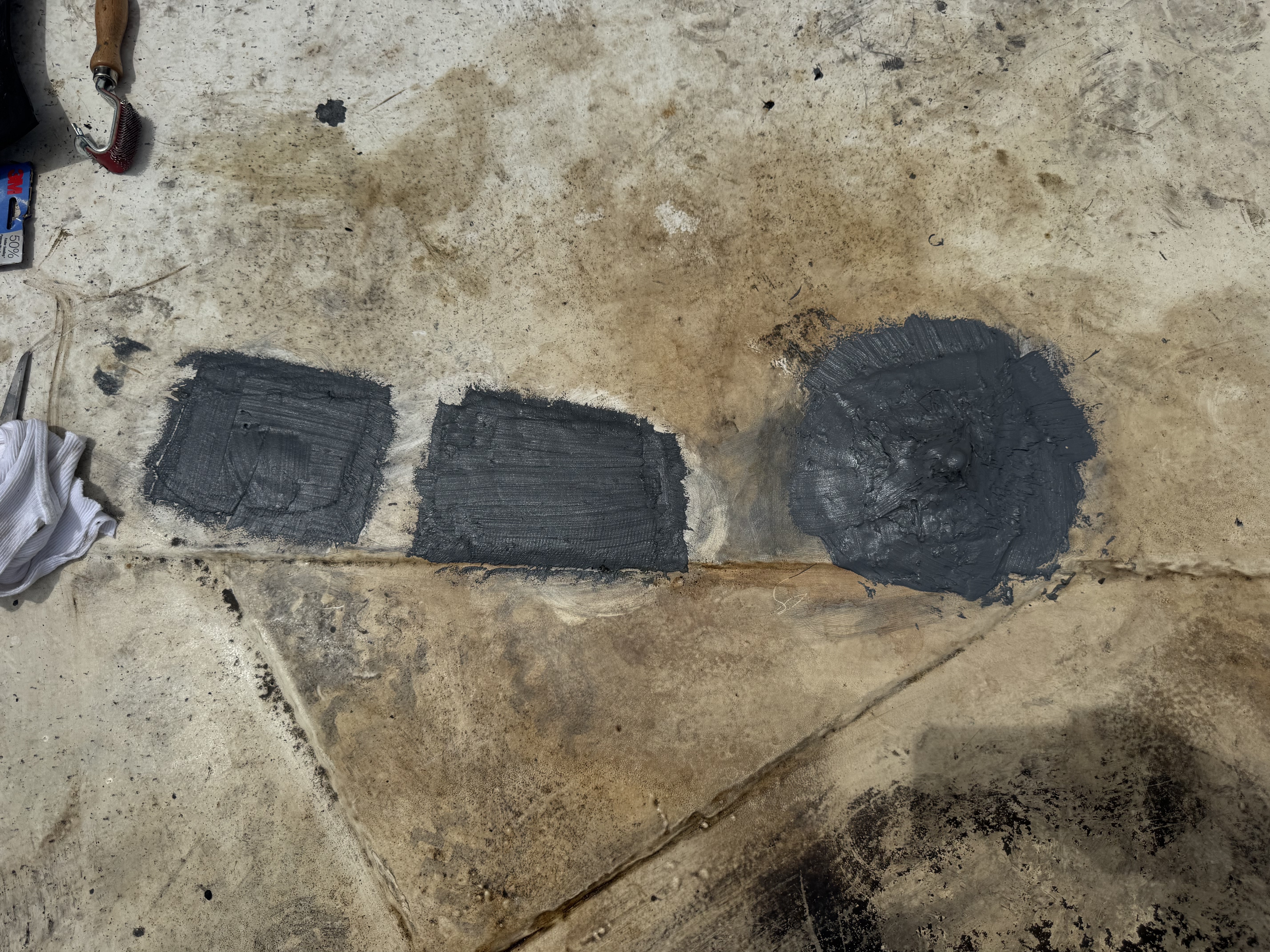

Belzona 1212 Tank patches view 2

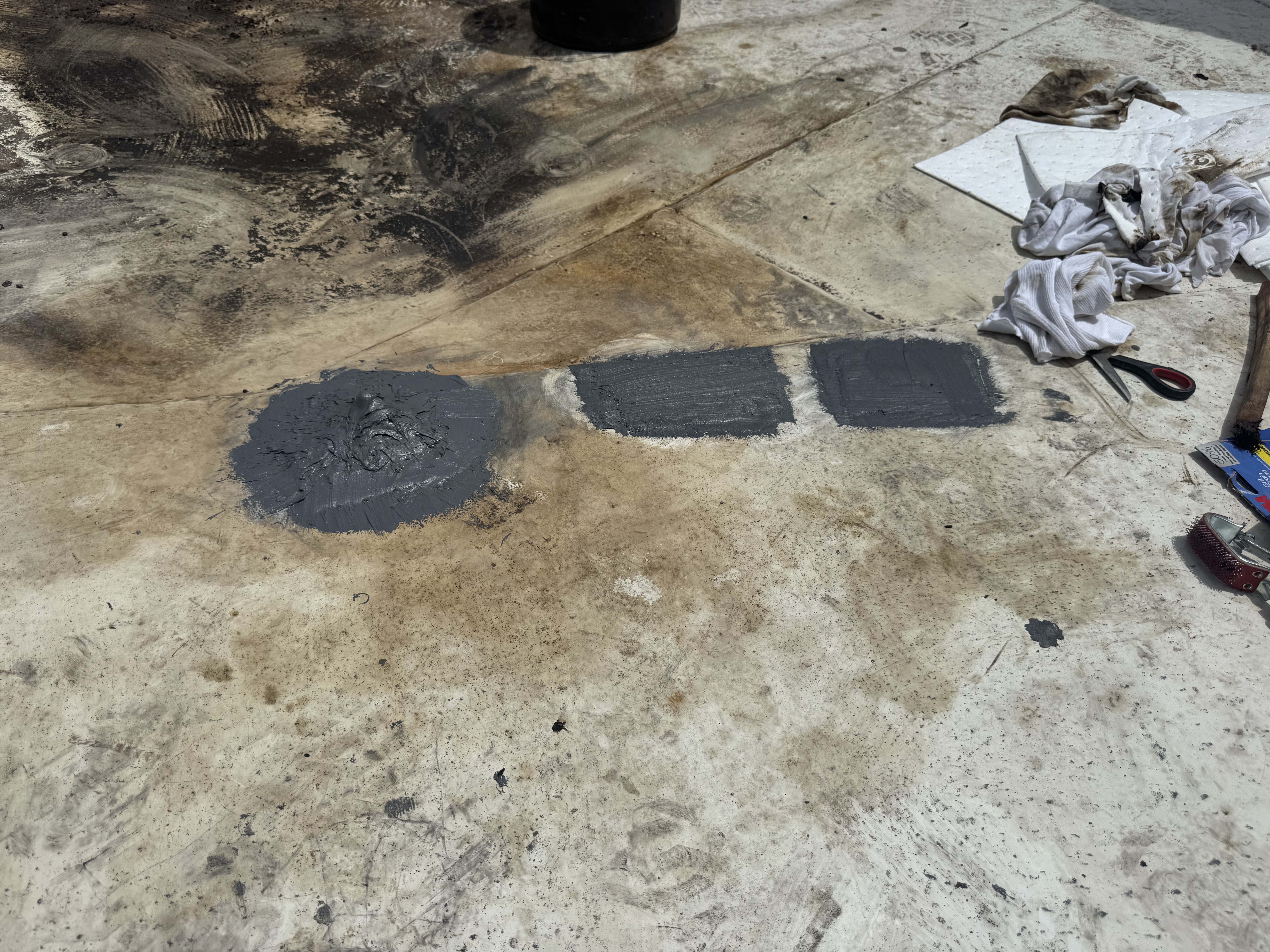

Belzona 1212 Tank patches view 3

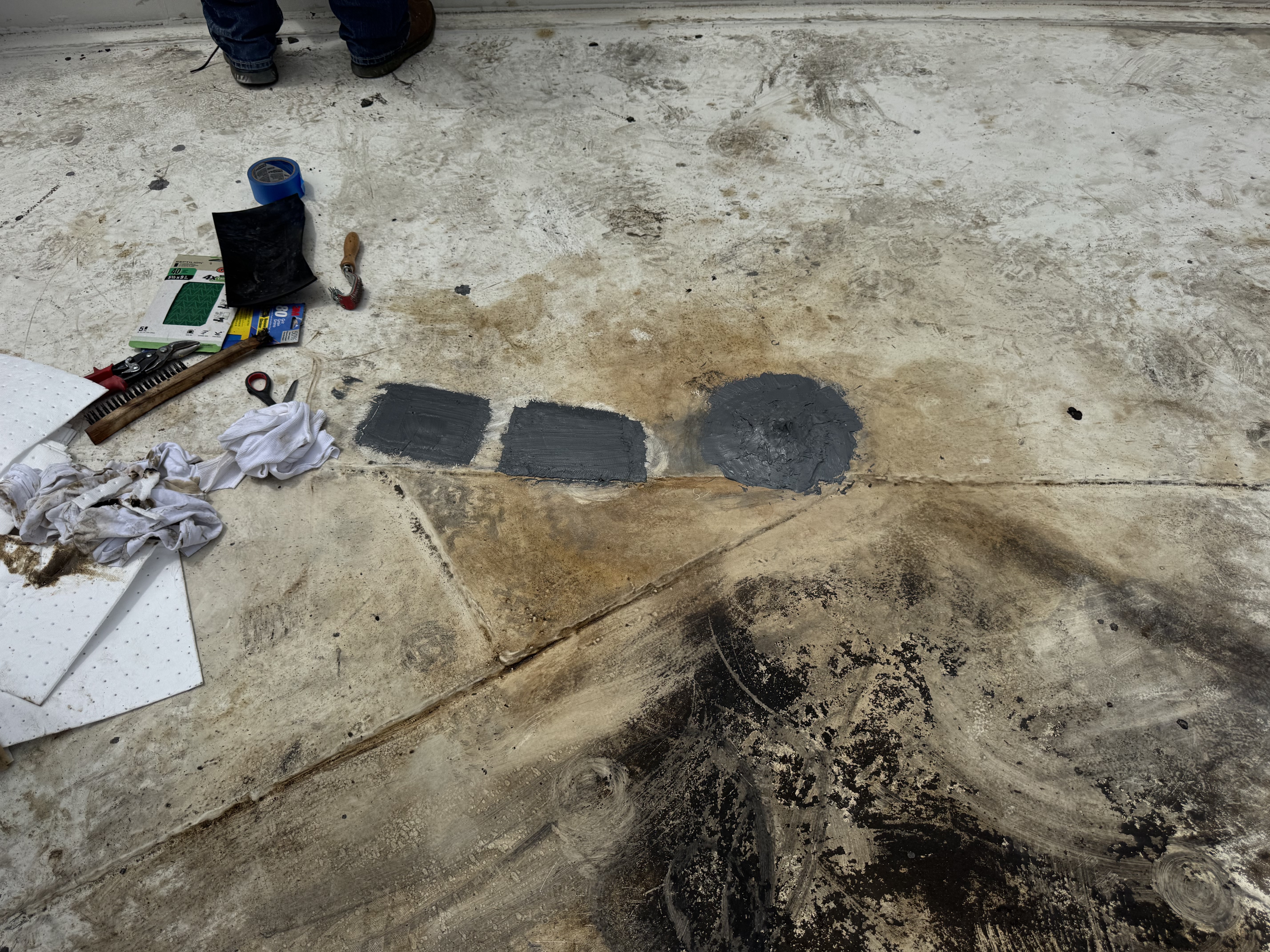

Belzona 1212 Tank patches view 4

Application Situation

The customer had put a rubber insulated magnet on top of the hole to prevent it from leaking out.
We were not allowed to use any power tools, not even a cell phone or a smart watch. We had to go through intense training to be allowed to work on the tank.
The repair only took 45min.

Application Method

The area was prepped as best as possible by a hand metal brush, A Belzona 9611 emergency product was used to temporarily plug the hole.
After cured a kit with a mesh and Belzona 1212 was used to complete the repair.

Belzona Facts

Belzona was recommended by the local refinery.
