Repair and Protection of Main Condenser-Coal Plant

KHIA ID: 10112

Industry: Power (POWR)
Application: HEX-Heat Exchangers (HEX)
Substrate: Carbon steel

Customer Location: Underwood,North Dakota
Application Date: March 1996

Products: Belzona 1121 (Super XL-Metal),Belzona 1321 (Ceramic S-Metal)

Problem: The tubesheet of this heat exchanger was in dire need of rebuild and coat.

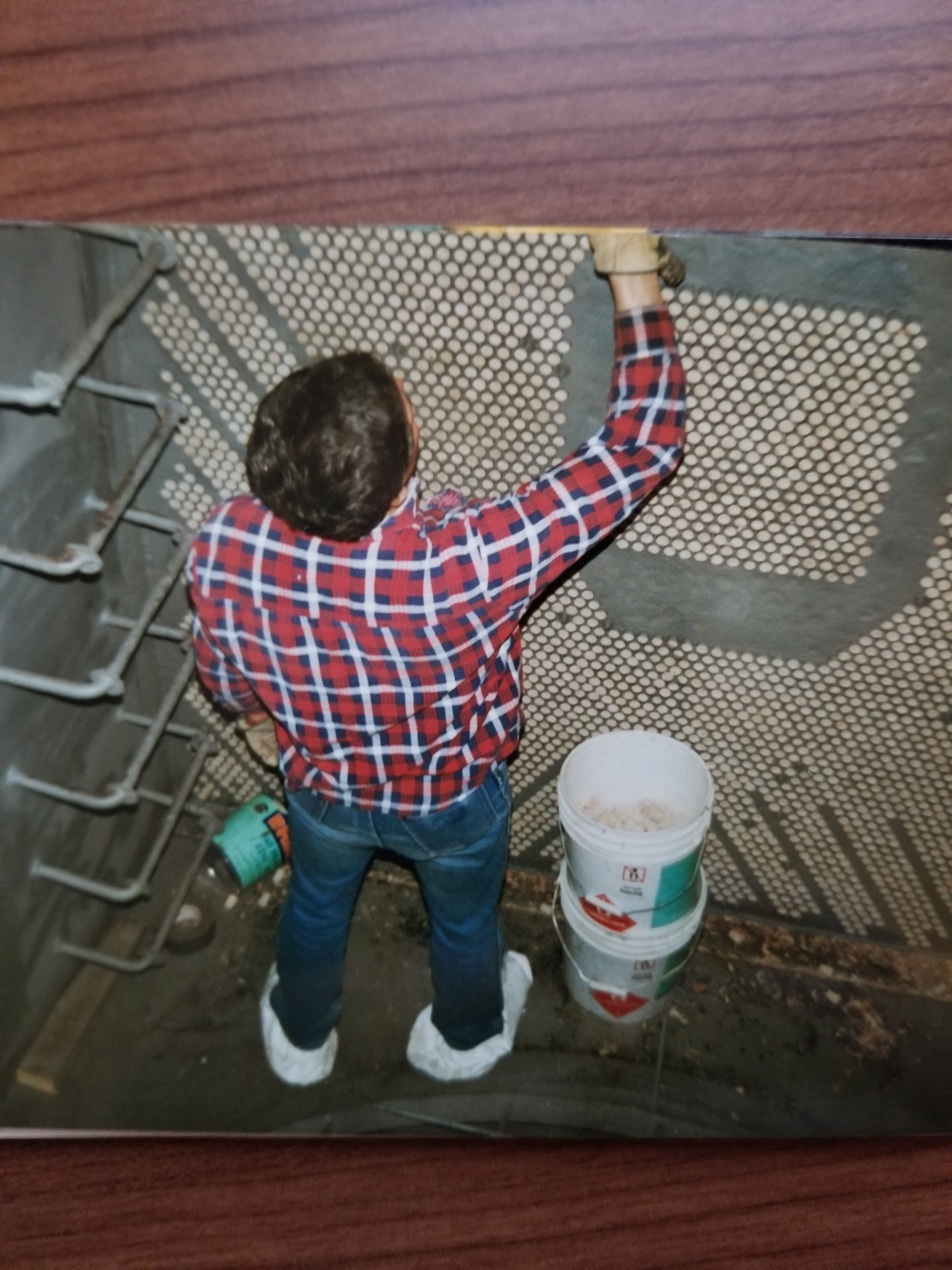

Swanson Youngdale applying corks in tubes.

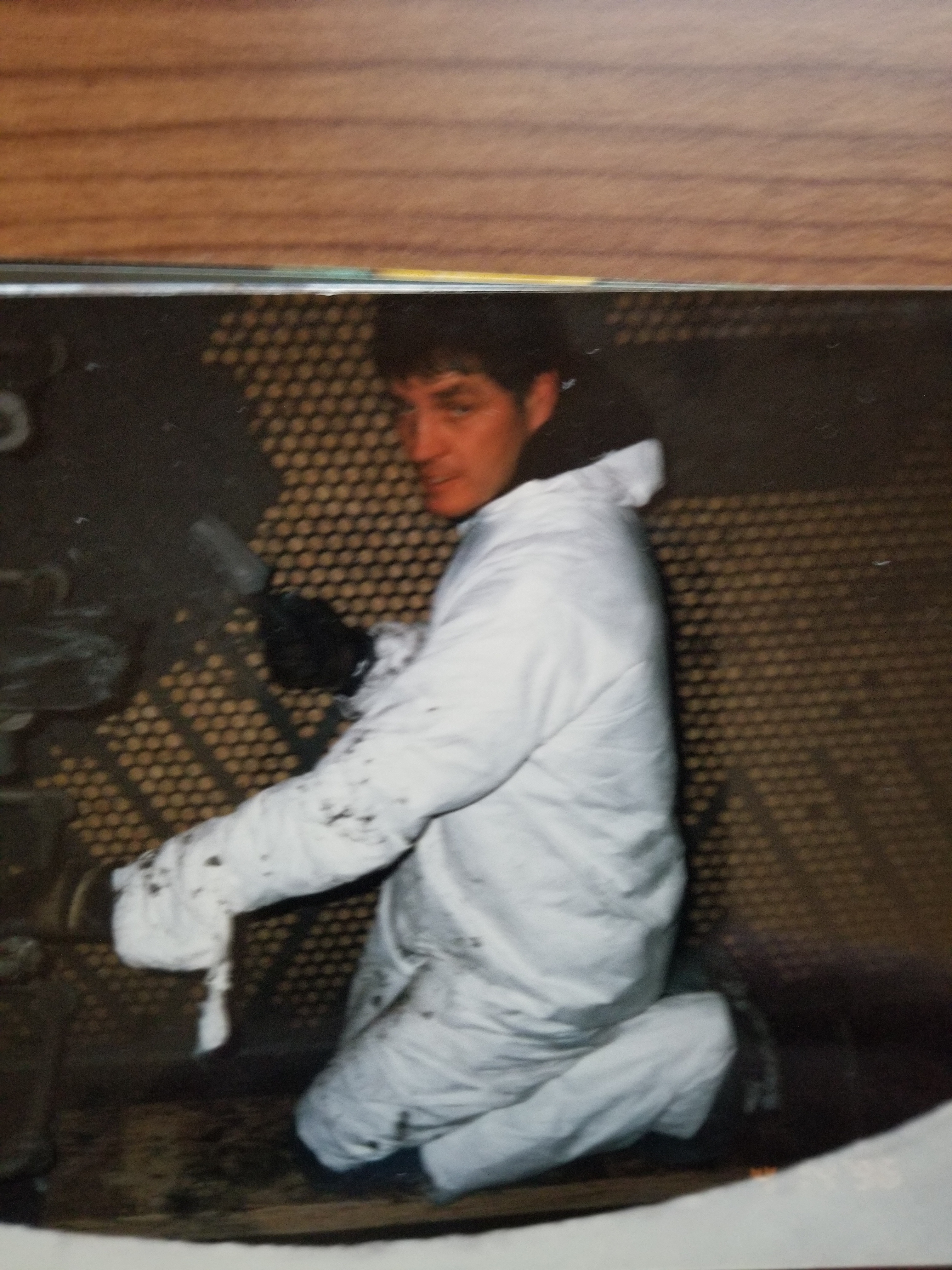

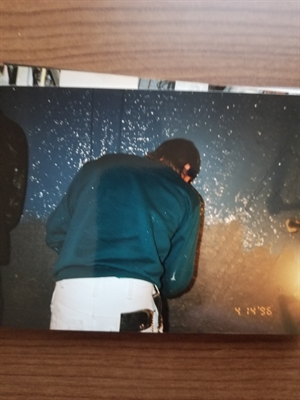

Contractor applying Belzona 1121 between all tubes; bring it flush with tubes

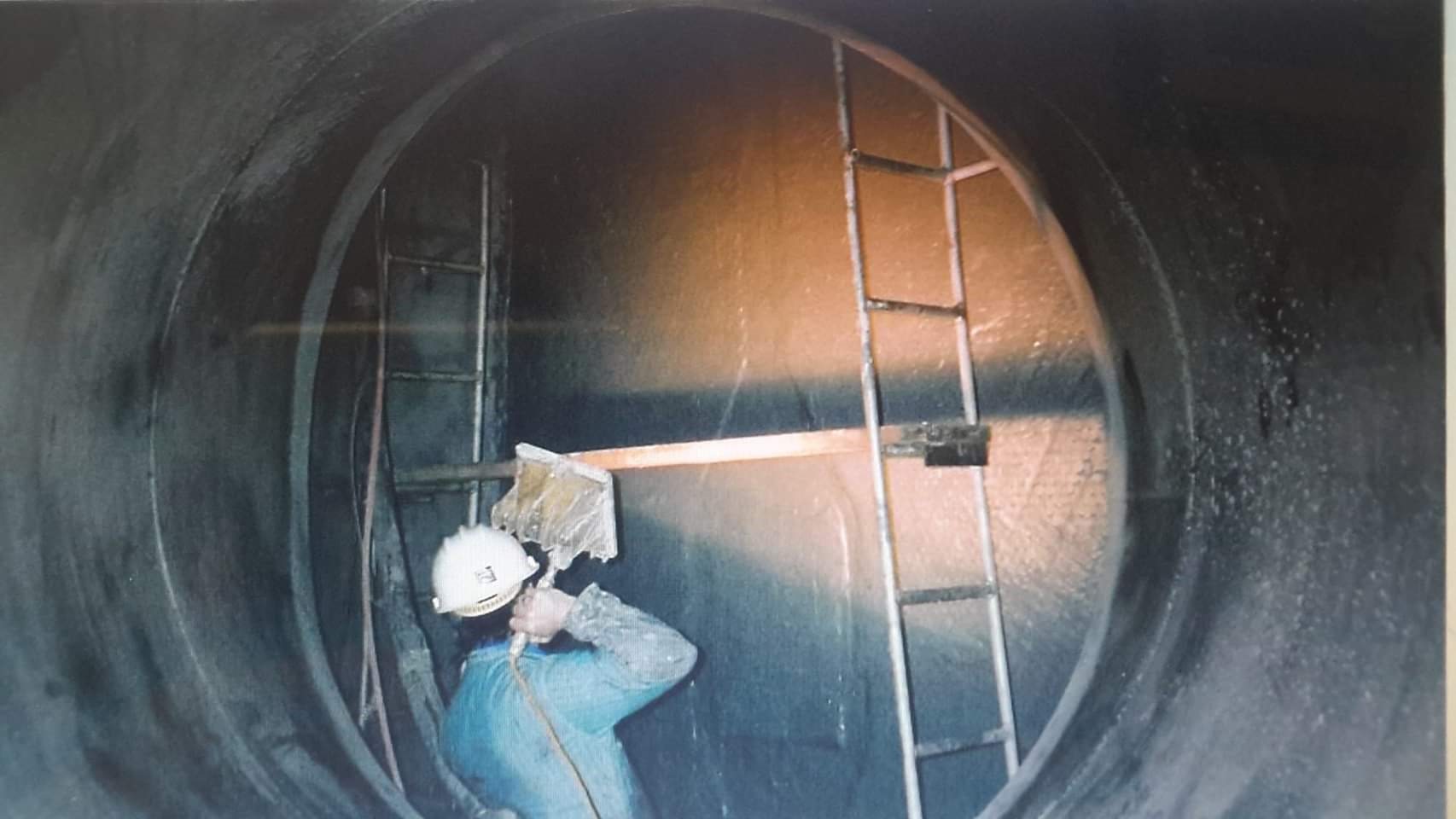

Application of 2 coats of Belzona 1321

Inspection of final application of B1121 and Belzona 1321 100% before cork removal

Application Situation

Belzona offered a turnkey solution to bring condenser back to 100% with total rebuild and coat system.

Application Method

Tubes were corked (over 2000) and then face was blasted ,once blasted the tubes were corked again flush; Belzona 1121 metal was trolled in the bring face flush with tubes. As per Instructions for Use, Belzona 1321 was applied in 2 coat system.

Belzona Facts

Client went with Belzona because of knowledge and experience with our products.
