Belzona 1813 saves fiberglass spray headers

KHIA ID: 10104
Industry: Oil & Gas (OILG)
Application: TCC-Tanks and Chemical Containment Areas (TCC)
Substrate: Composite
Customer Location: Beulah,North Dakota
Application Date: May 2020
Products: Belzona 1813
Problem: Fiberglass spray headers in pre-scrubber tank were worn thru from the spray header itself getting plugged and spraying in different locations and wearing top of header piping.

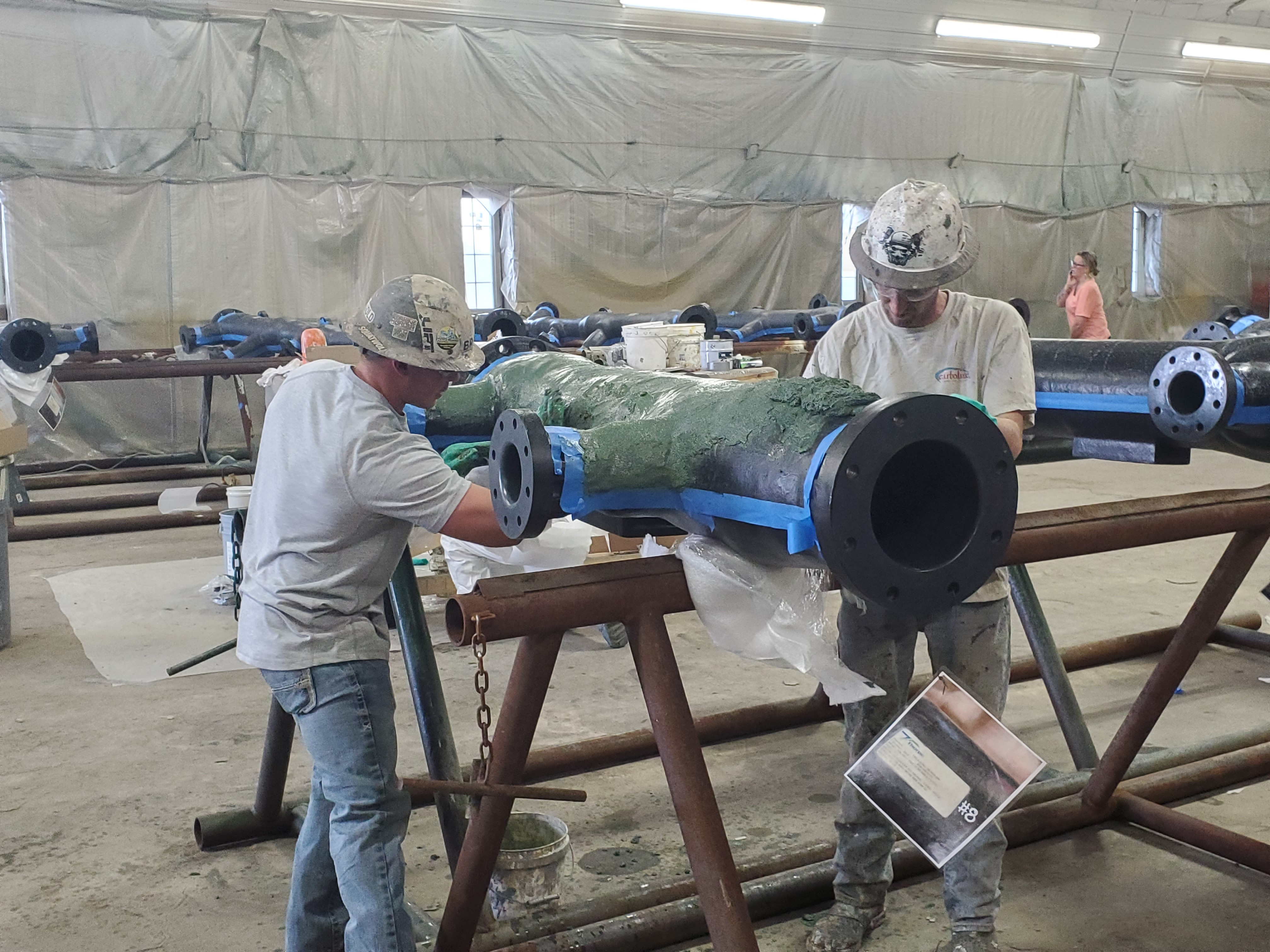

Application of Belzona 1813 to new headers in their shop.

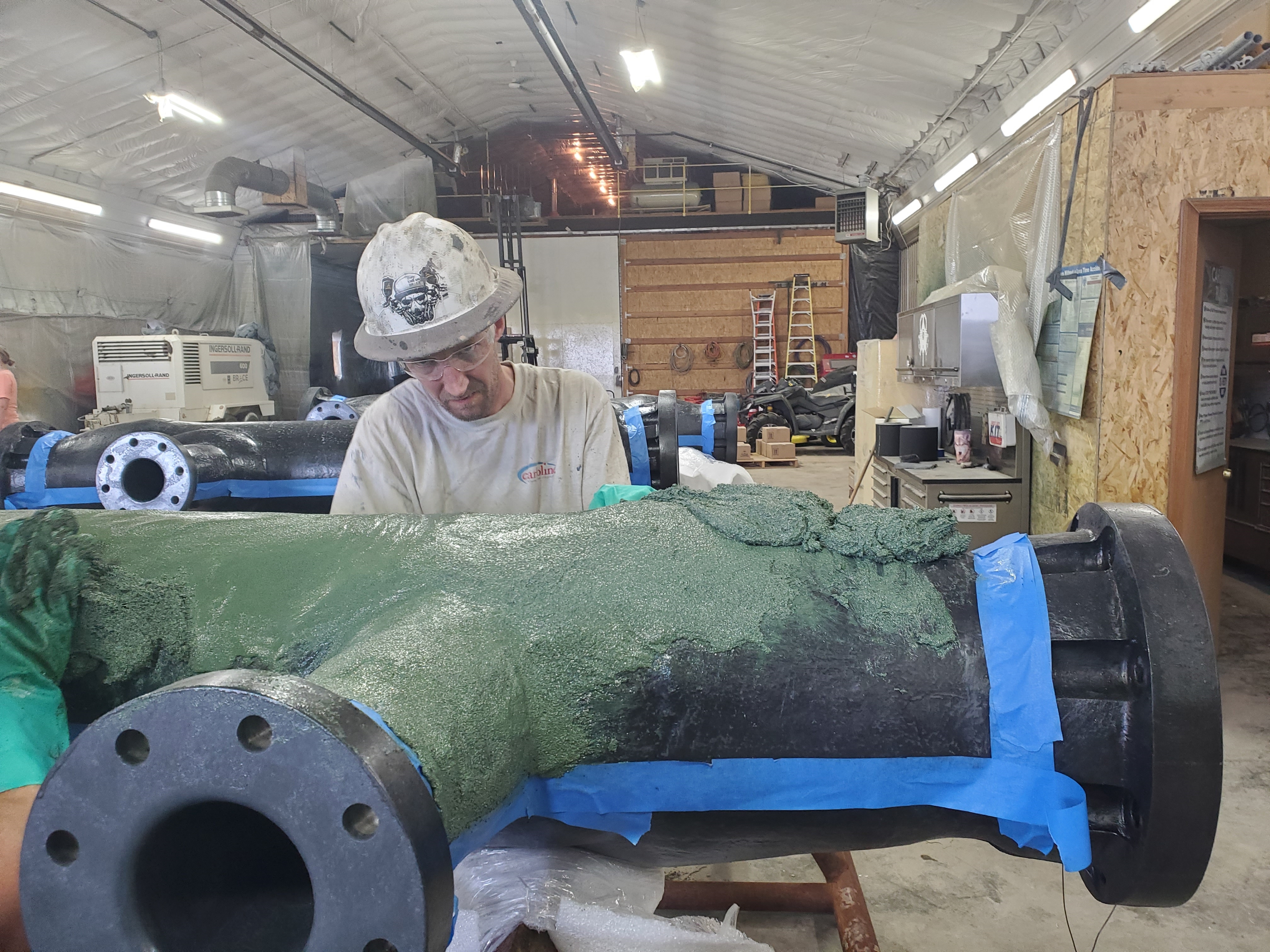

Smoothing out the Belzona 1813 on headers.

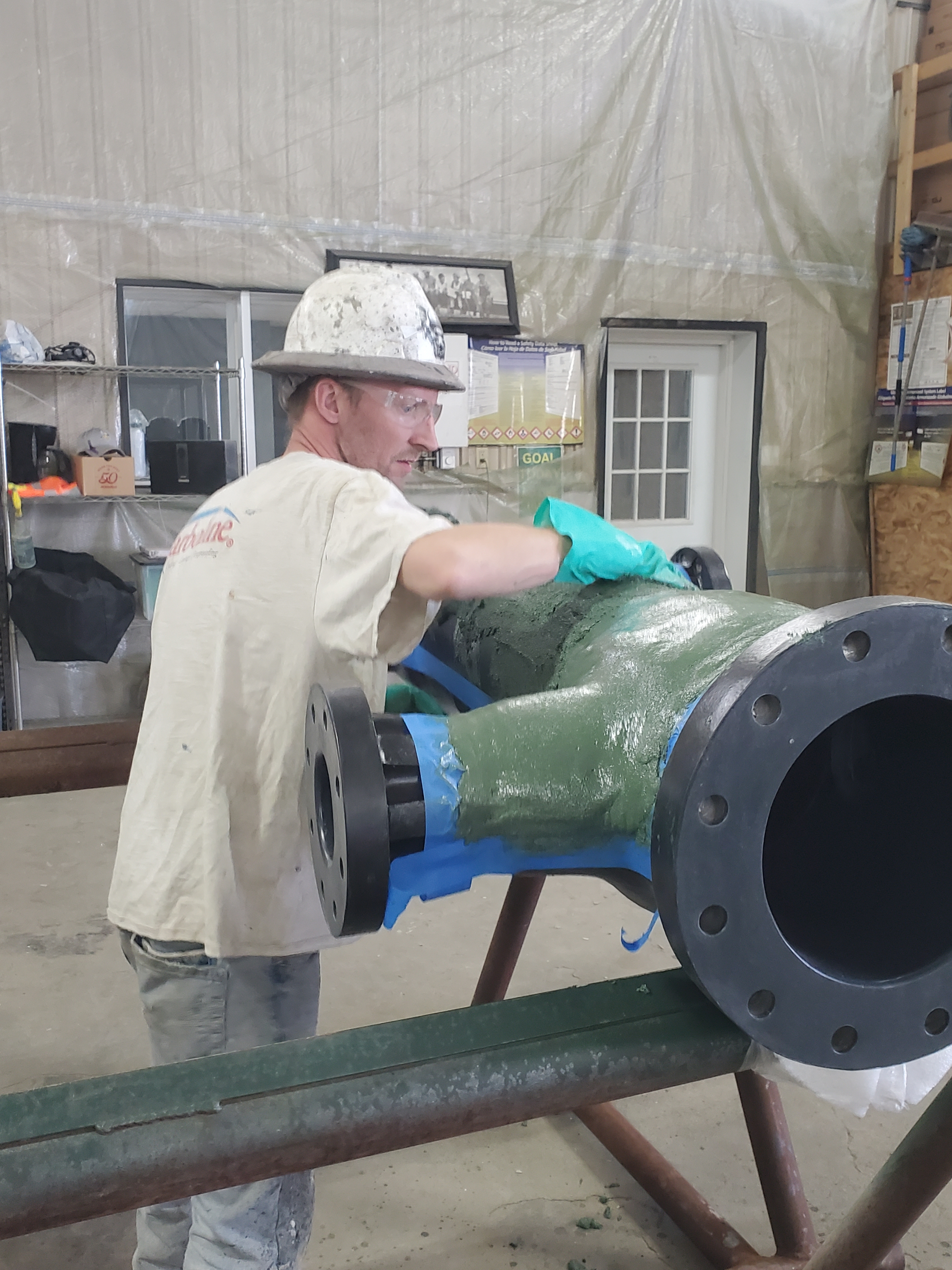

Closeup of contractor finishing up on a header.

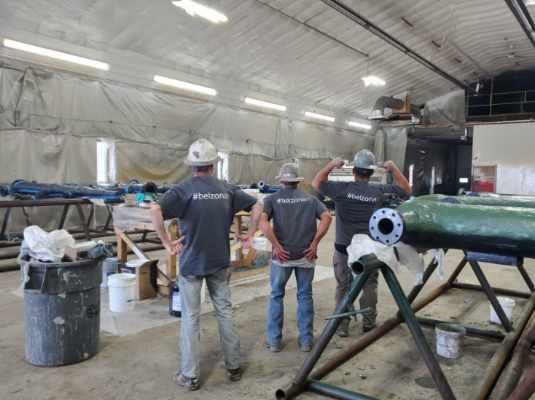

Finalized application and contractors wearing new Belzona t-shirts!

Application Situation
The application was done on new piping now in contractors shop. The top half of all new piping was prepped manually and 1/8 to 1/4 inch Belzona 1813 was applied. Initially the repairs were done inside tank and new piping was ordered. The Belzona 1813 worked so great that they wanted the new piping coated as well.
Application Method
New fiberglass piping was manually prepped with grinders, cleaned and Belzona 1813 was applied by hand.
Belzona Facts
The Belzona 1813 was lasting better than the fiberglass repair and was cheaper to install than the traditional repair kits.
