BELZONA HELPS REBUILD TOLERANCE LOSS DUE TO MILL SCALE

KHIA ID: 10032

Industry: Other (OTHER)
Application: GSS-Gaskets, Seals and Shims (GSS)
Substrate: Carbon steel

Customer Location: CAMBRIDGE, ON.
Application Date: October 2025

Products: Belzona 1121 (Super XL-Metal)

Problem: Newly fabricated cylinder experiencing reduction in diameter due to mill scale formation on some parts of the surface.

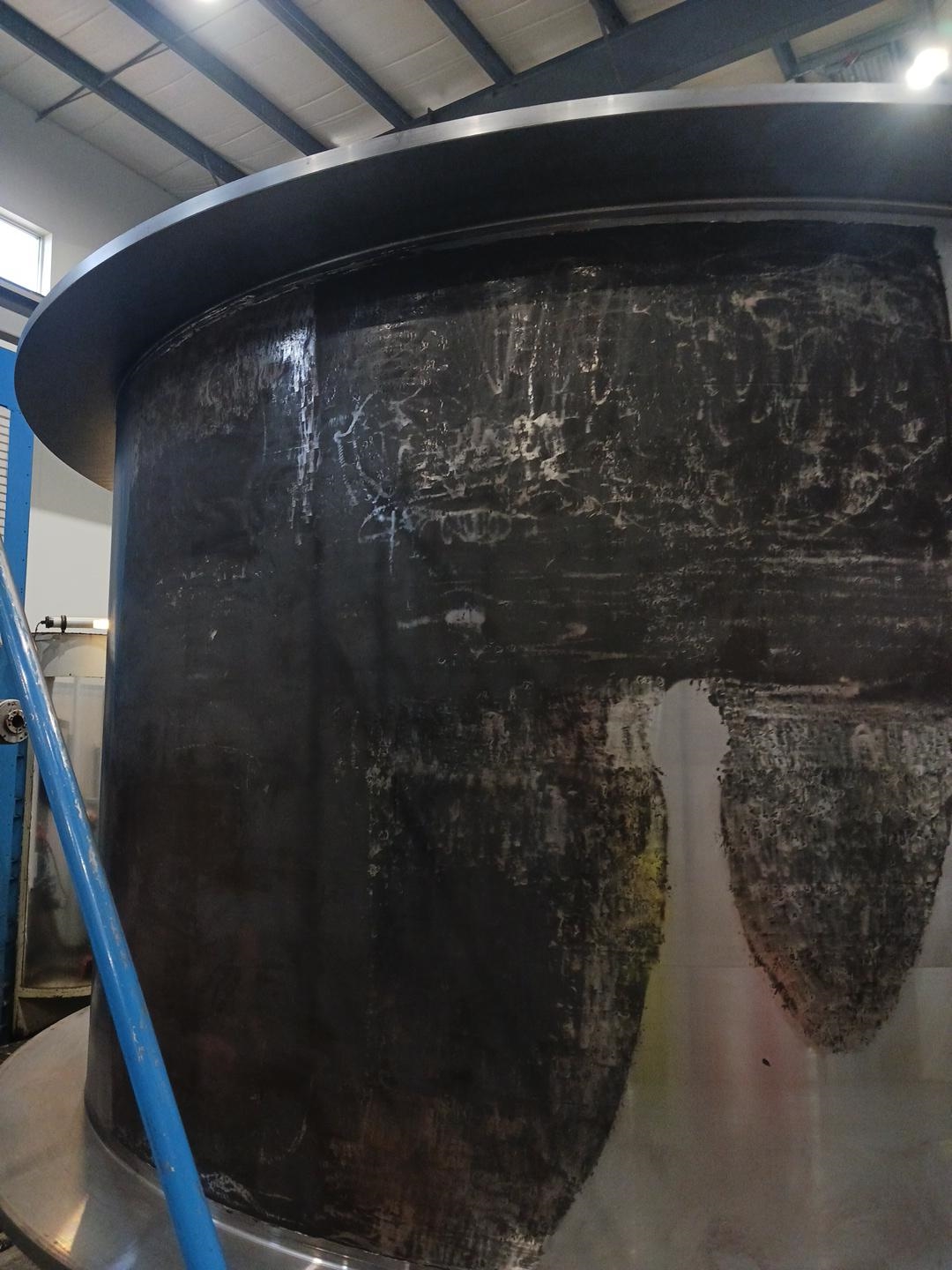

Cylinder with millscale

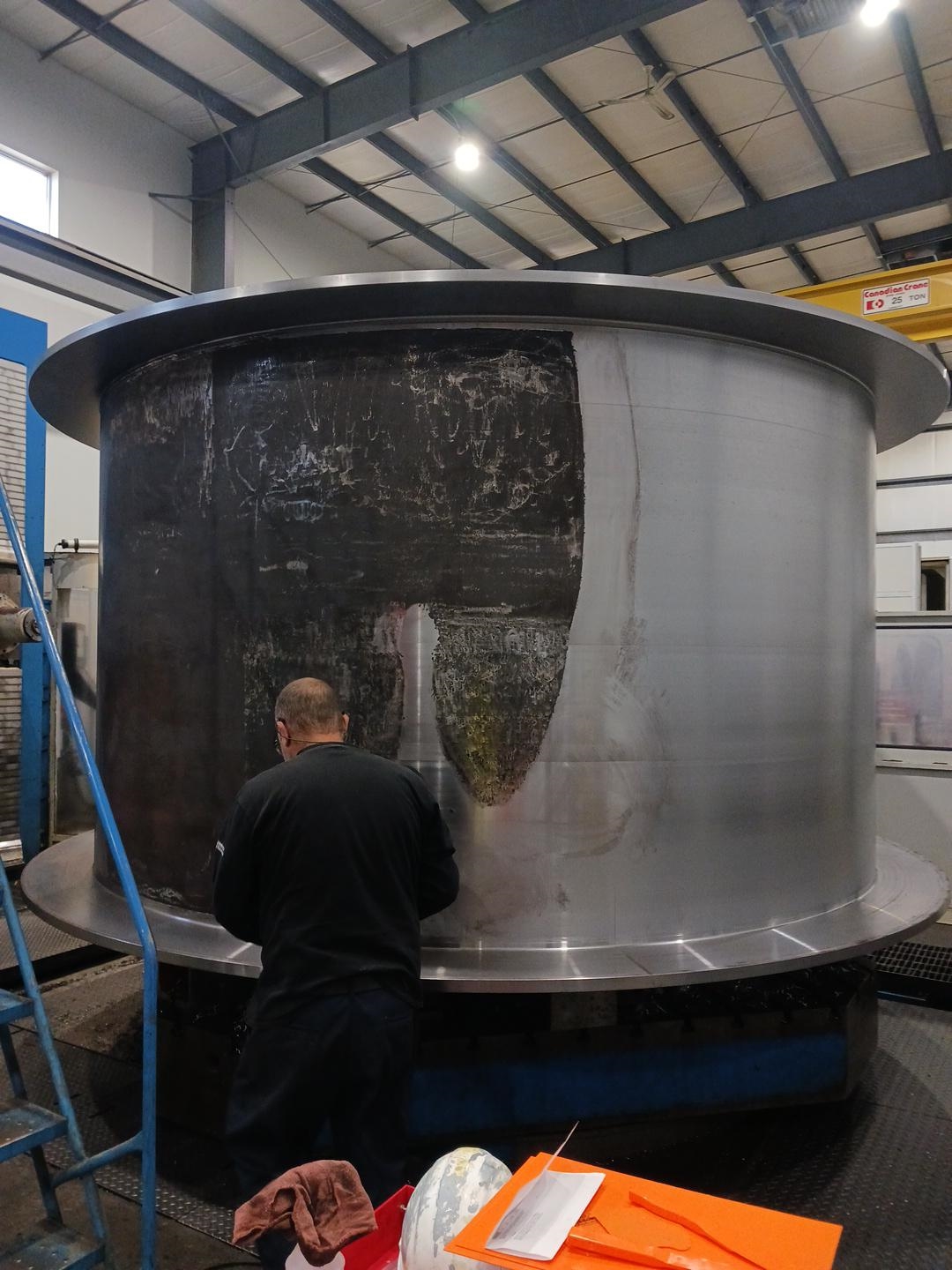

During surface preparation

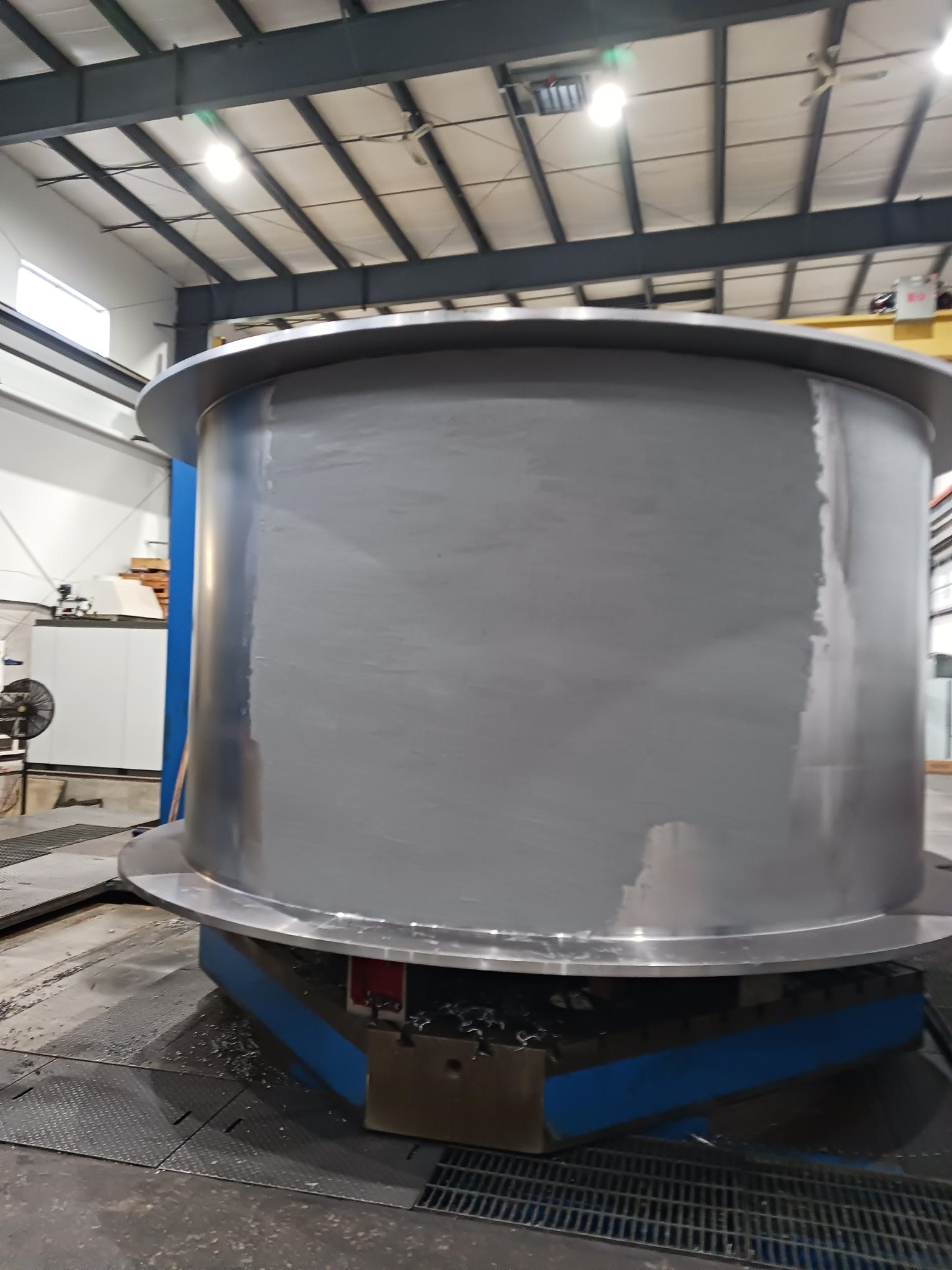

After rebuilding with Belzona 1121

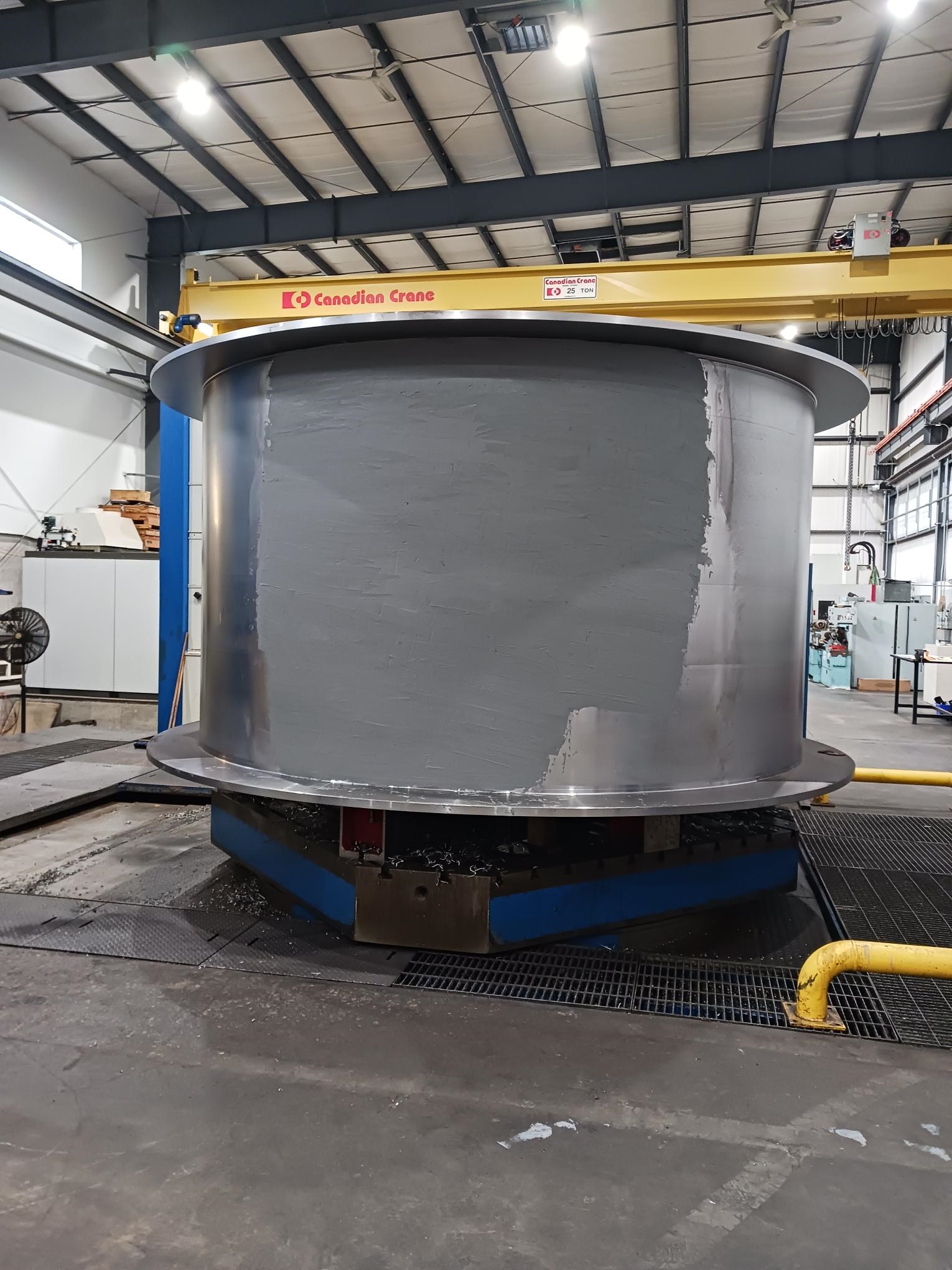

After machining

Application Situation

Newly fabricated cylinder experiencing reduction in diameter due to mill scale formation on some parts of the surface. Belzona was used to build the surface and machined to the required tolerance.

Application Method

Surface preparation was carried out to the level of cleanliness of SSPC SP11. Then thorough solvent cleaning was done before the application of Belzona 1121 was carried out. Surface was then machined to the required diameter afterwards.

Belzona Facts

Belzona is only feasible time saving option, with flexibility to corrections.
