Belzona Composite Wrap on Discharge Pipe and Internal Liner on Sump

KHIA ID: 9915
Industry: Chemical & Petrochemical (PETR)
Application: TCC-Tanks and Chemical Containment Areas (TCC)
Substrate: Carbon steel
Customer Location: Galveston, TX
Application Date: September 2023
Products: Belzona 1121 (Super XL-Metal),Belzona 1321 (Ceramic S-Metal),Belzona 4151 (Magma-Quartz Resin)
Problem: Client has a small sump at the bottom of a large holding tank. The tank was previously lined with a polyurea coating. The sump has a 7” OD discharge pipe extending out of it to drain materials where needed. The sump internal liner was failing, and the pipe was externally and internally seeing corrosion. This customer passes well completion fluids in these tanks and it was eating away at the previous polyurea liner over time.

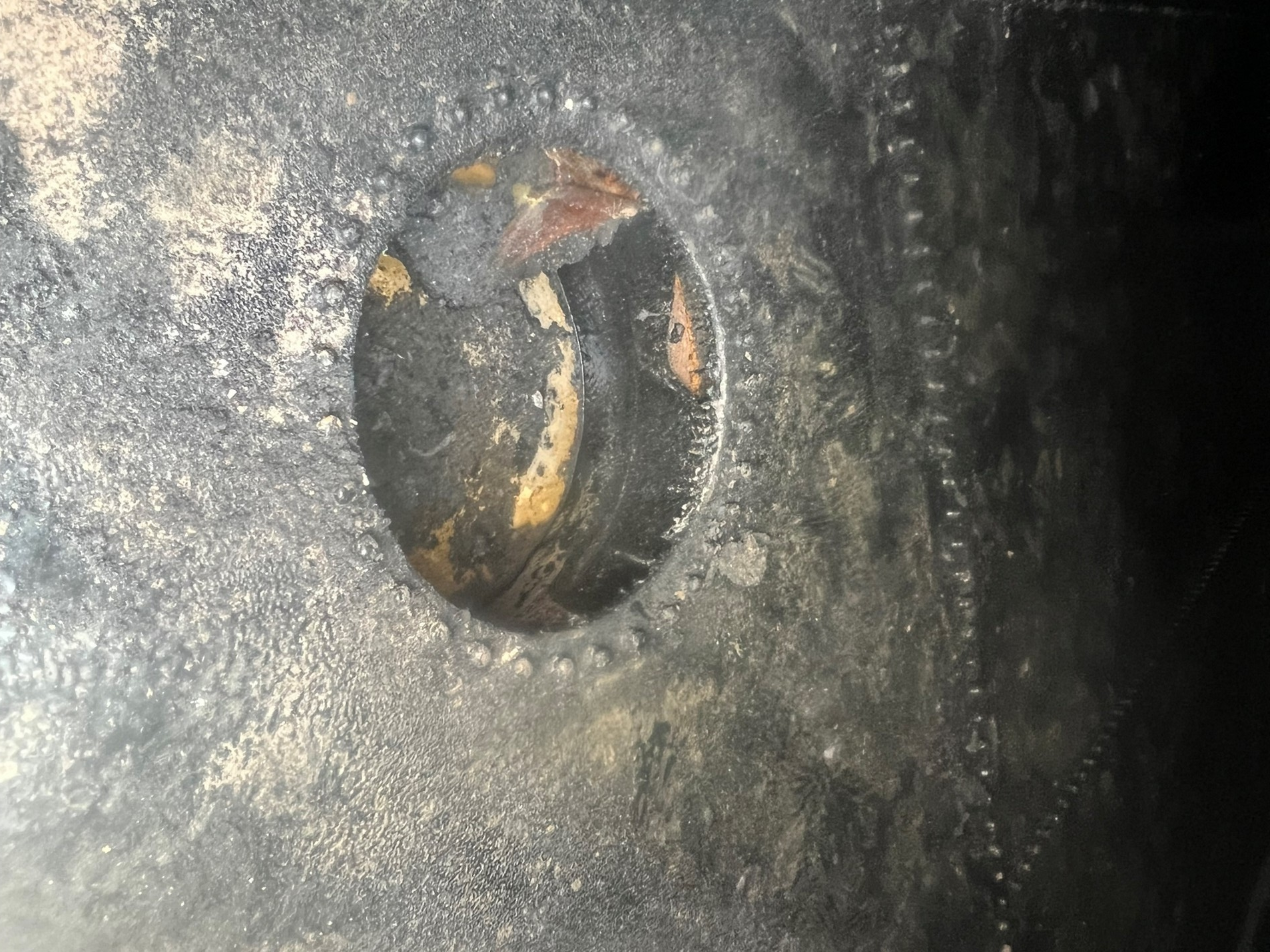

Before image of the sump with existing polyurea liner on it. Internal view.

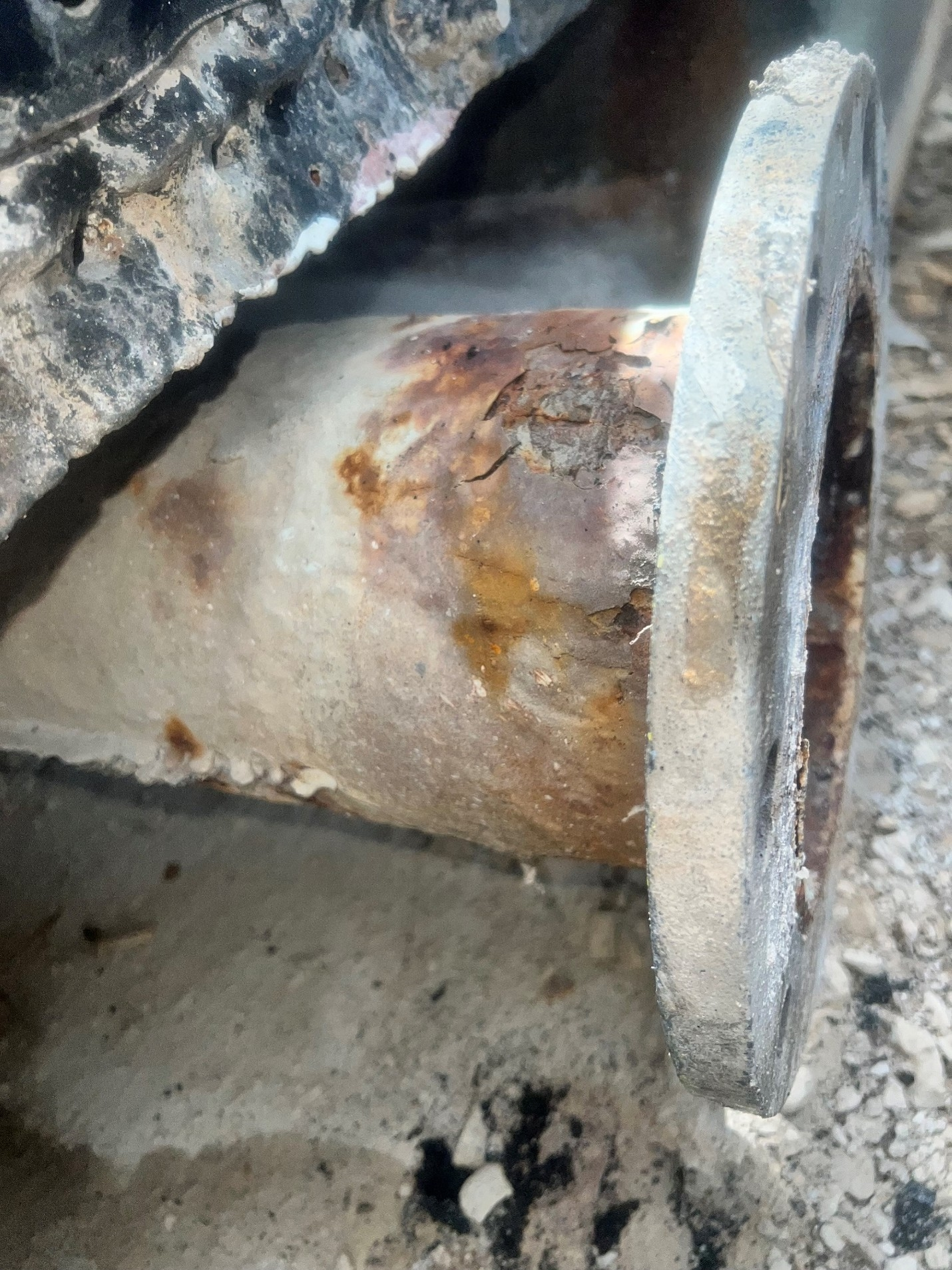

Before image of the discharge pipe coming off of the sump. External view.

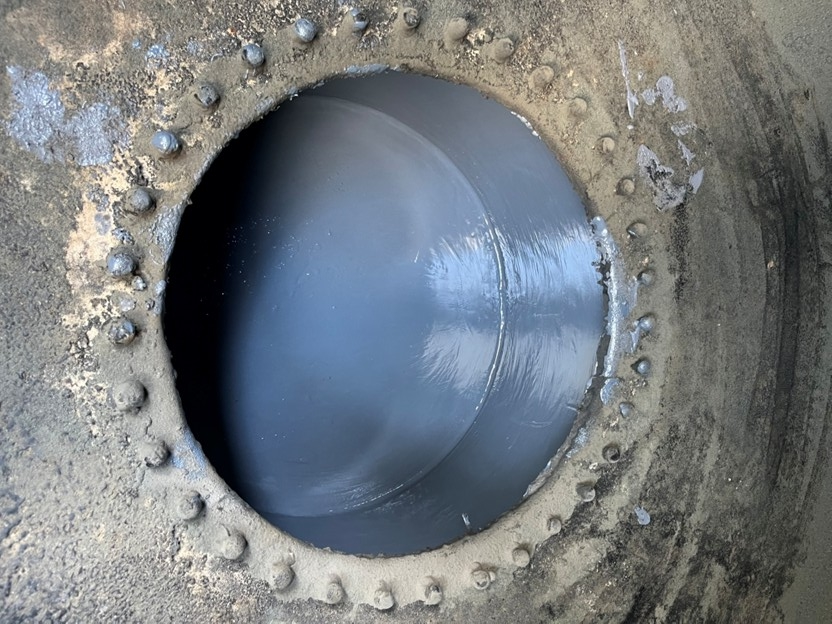

Internal view of sump after Belzona 1321 was applied.

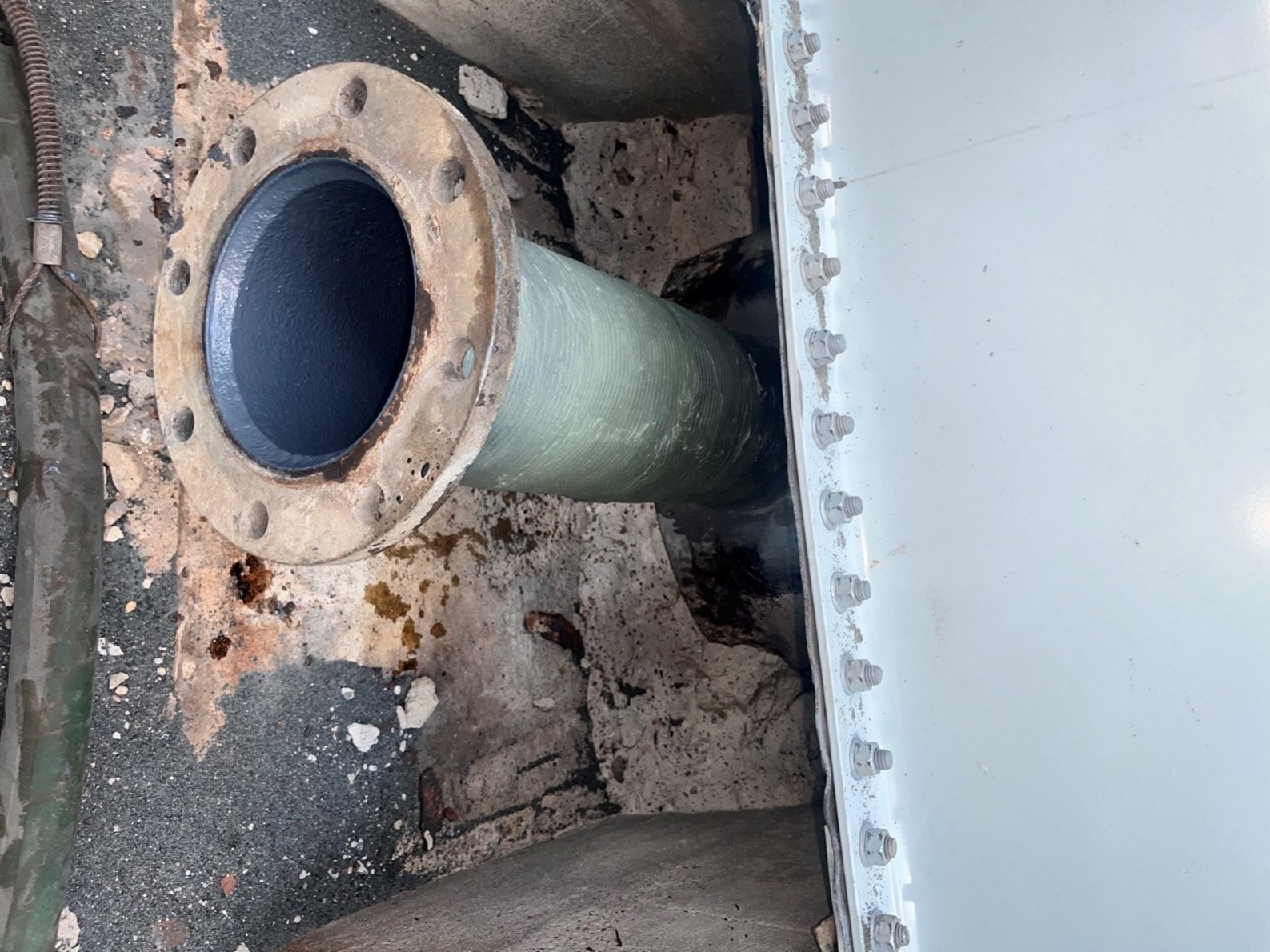

External view of pipe after Belzona composite wrap was applied.

Application Situation
Customer chose Belzona for our superior products and cost savings to complete the work. Our chemically rated products can withstand their service. Our solution was cost effective, can stop the corrosion since no new metal introduced, and was completed in days. This was a better option compared to cutting out, welding and replacing. The application area was tight fit, and hard to access making welding difficult. Also, it was very difficult, costly, and unsafe to try and reline the area with new polyurea liner. Belzona extended the life of the asset rather than having to replace with new.
Application Method
1. Abrasive blasting surface preparation (SSPC-SP10)
2. Apply Belzona 1121 to pit fill defects on pipe and sump
3. Apply 2 wrap / 4-layer system of 4151 & 9371 to the pipe externally
4. Apply internal liner to sump and pipe with Belzona 1321
Belzona Facts
Belzona was more cost effective than weld repair and a new polyurea liner. Using Belzona also allowed return to service to be quick, which saved downtime cost.
